Description

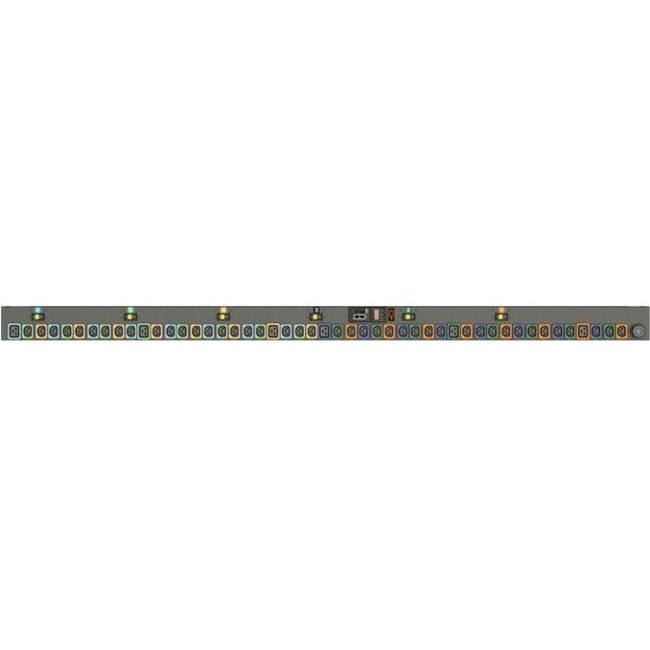

The Vertiv Geist NS30038L is a switched, high-density rack PDU designed for critical data center power management. This 0U vertical unit supports remote outlet switching and IP-based monitoring for real-time power and environmental data. Outfitted with 48 lockable IEC outlets (42 x C13 and 6 x C19), it ensures secure power distribution across various equipment. Built with advanced features like VLC (Visible Light Communication) for optical data capture via the Geist Mobile App, this PDU is hot-swappable and upgradeable through its Interchangeable Monitoring Device (IMD). Ideal for enterprise IT racks, the NS30038L operates at 230V/415V with a power capacity of 16.6kW.
| Specification | Details |
|---|---|
| Brand | Geist (by Vertiv) |
| Model | MNS3EHW1-48MI13-3PS56B0A10-S-A |
| Part Number | NS30038L |
| PDU Type | Switched |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Input Plug Type | 3P+N+E (IP44) |
| Input Connector | 1 x 3P+N+E (IP44) |
| Input Voltage | 230V AC / 415V AC |
| Input Voltage Range | 200–240V AC / 346–415V AC |
| Output Voltage | 230V AC |
| Input Current | 30A |
| Power Capacity | 16.6 kW |
| Receptacle Configuration | 42 x Lock IEC 60320 C13, 6 x Lock IEC 60320 C19 |
| Protection Type | Overcurrent Protection |
| Network Port | RJ-45 (1x) |
| Remote Switching | Yes |
| Management Protocols | DHCP, HTTP/HTTPS, SNMP (v1/v2c/v3), Syslog, SSH, NTP, LDAP |
| VLC (Visible Light Comm.) | Yes, via Geist Mobile App |
| Hot-Swap Monitoring | Yes, upgradeable via IMD module |
| Dimensions (W x D x L) | 3.7" x 2.6" x 70" |
| Shipping Weight | 22 lbs |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Package Includes | PDU unit, vertical mounting bracket kit |
| Warranty | 5-Year Limited |
| Product Condition | New and Factory Fresh |
