Description

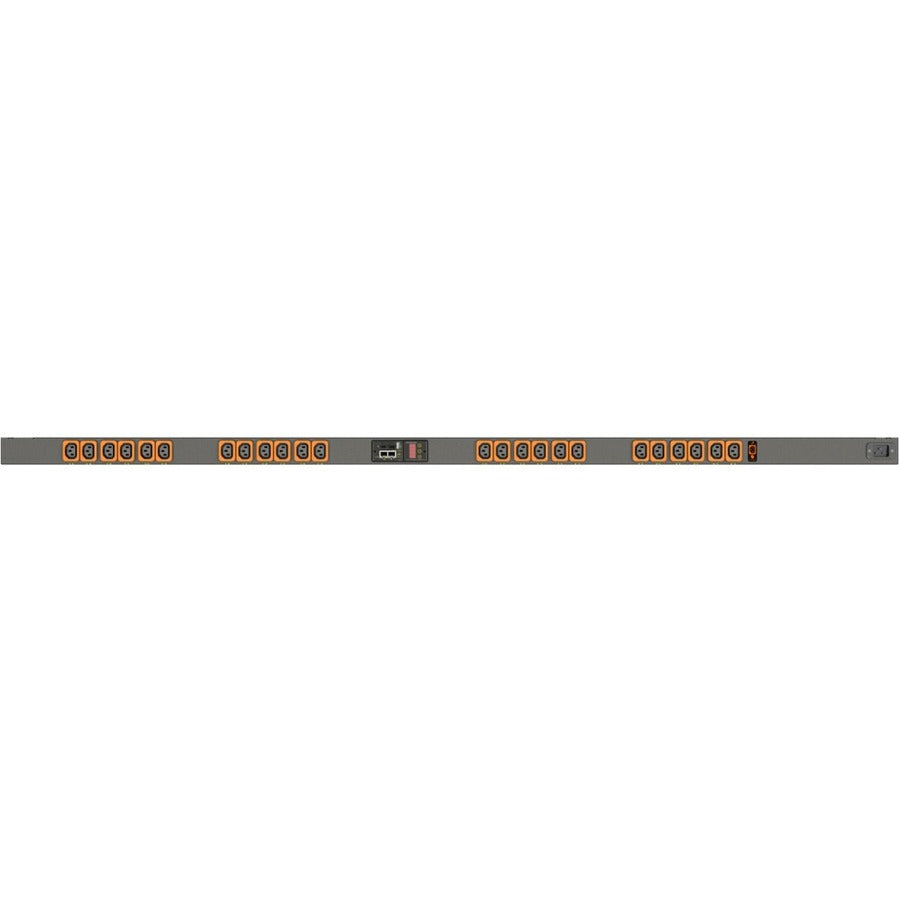

The Vertiv Geist UU30001L (Model: MUU3EGB0-24L137-2C20A9A00-S) is a 24-outlet switched rack PDU engineered for advanced power distribution and control. Equipped with an IEC 60320 C20 input and 24 U-Lock IEC C13 receptacles, this 0U vertical PDU supports both 120V and 230V inputs. Real-time power metrics and environmental monitoring are accessible via IP-based protocols, including SNMP and SSH.
Featuring Visible Light Communication (VLC) technology, power usage data can be transmitted from the LED display to mobile devices using the Geist App. With Geist Upgradeable hot-swap monitoring, this unit offers future-ready flexibility without downtime. Ideal for secure and efficient data center power management.
| Specification | Details |
|---|---|
| Brand Name | Geist (Vertiv) |
| Model Number | MUU3EGB0-24L137-2C20A9A00-S |
| Part Number | UU30001L |
| PDU Type | Switched |
| Input Plug | 1 x IEC 60320 C20 |
| Output Receptacles | 24 x U-Lock IEC 60320 C13 |
| Input Voltage Range | 100–240V AC |
| Output Voltage Range | 100–240V AC |
| Max Power Rating | 3600 Watts |
| Input Current | 20A |
| Network Management | DHCP, HTTP/HTTPS, SNMP (v1/v2c/v3), SSH, etc. |
| Mounting Type | Rack-mountable (Vertical) |
| Rack Height | 0U |
| Dimensions (HxWxD) | 66.3" x 2" x 2.6" |
| Shipping Weight | 18 lbs |
| Warranty | 5 Years (Limited) |
| Compliance | Environmentally Friendly |
| Included Accessories | Mounting Bracket Kit |
| Country of Origin | United States |
