Description
The Vertiv Geist VA4G8100 is a high-performance 12-outlet Rack PDU (rPDU) equipped with an Auto Transfer Switch (ATS) and monitoring capabilities, delivering redundant power to single-corded equipment with sub-8ms transfer time. Featuring 12 combination C13/C19 outlets and a 1P+N+E (IP44) plug, it is ideal for mission-critical environments requiring reliable, rack-mountable power distribution.
This rPDU supports environmental and power monitoring, daisy-chaining of up to 50 devices with fault-tolerant RSTP, and extensive network management protocols. Its rugged design and tested reliability ensure maximum uptime in data centers or enterprise setups.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | VA4G8100 |
| Model | AG03E1R0-12CF13-2PS6PS6B211-D |
| Series | rPDU |
| Product Type | Monitored Auto Transfer Switch (ATS) PDU |
| Input Plug | 1P+N+E (IP44) |
| Input Voltage Range | 200–240V AC |
| Output Voltage | 230V AC |
| Input Frequency | 60 Hz |
| Input Current | 16 A |

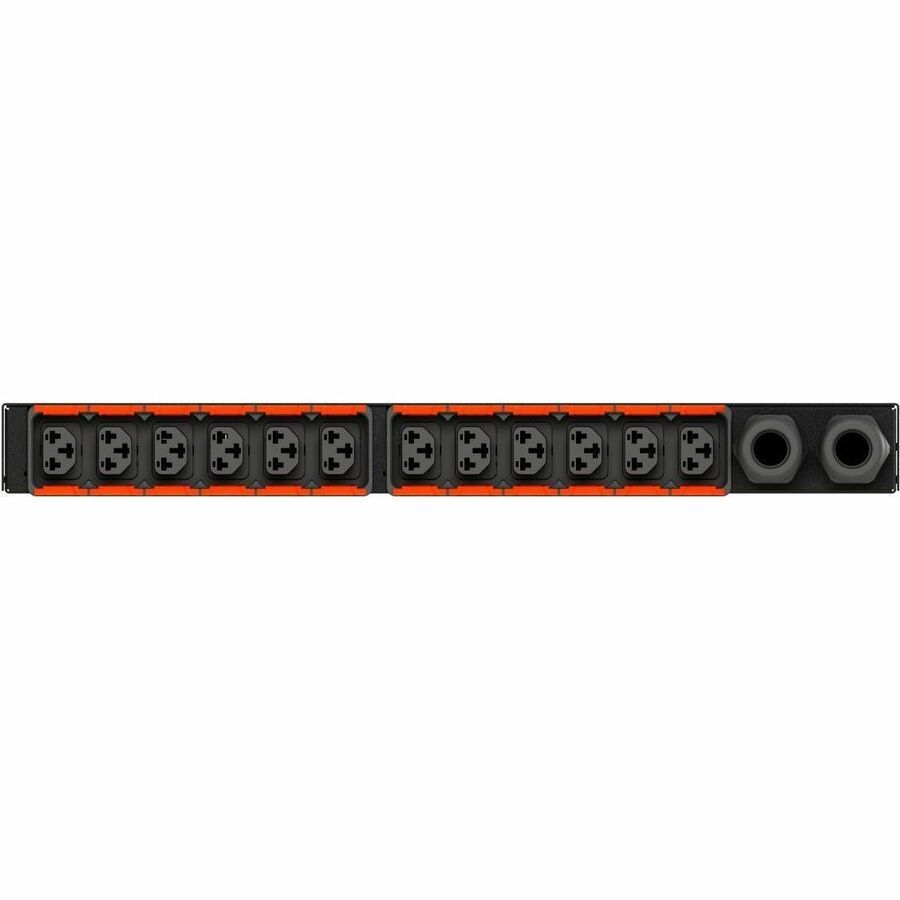

| Outlet Configuration | 12 x Combination C13/C19 |
| Load Capacity | 3600 W |
| Cord Length | 10 ft |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Network Interface | RJ-45 |
| Management Protocols | SNMP (v1/v2c/v3), HTTP/HTTPS, SSH, Modbus TCP, JSON, Syslog, NTP, TACACS+, LDAP, RADIUS, DHCP |
| Daisy-Chaining | Up to 50 units (RSTP fault-tolerant supported) |
| Color | Black Powder Coat |
| Dimensions (HxWxD) | 1.7" x 17" x 18" |
| Max Operating Temperature | 140°F (60°C) |
| Certifications | CE, UKCA, RoHS, EN 55032/55035, IEC 62368-1 |
| Product Condition | New and Factory Fresh |
| Warranty | 5-Year Limited (registration required within 120 days, else 3 years) |
| Shipping Weight | 19 lbs |
