Description

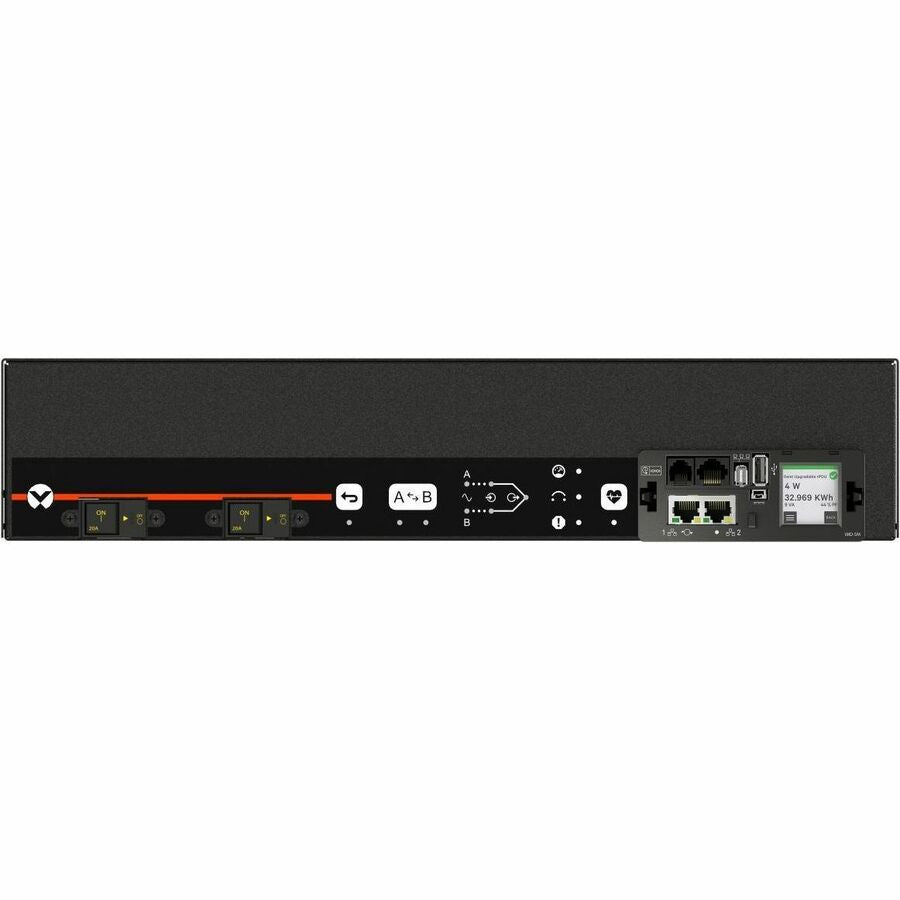

The Vertiv VA4N32A1 Rack Transfer Switch (RTS) ensures continuous uptime by automatically switching to an alternate power source in under 8 milliseconds during outages. With a 30A capacity and 2.8kW load rating, this horizontal 19" rackmount rPDU features 20 NEMA 5-20R outlets and dual NEMA L5-30P inputs. It supports intelligent power monitoring, environmental sensors, and daisy-chained Ethernet connectivity, making it ideal for mission-critical IT environments. A high-visibility local display and robust remote access ensure reliable and actionable power management.
| Specification | Details |
|---|---|
| Model Number | VA4N32A1 |
| Product Type | Rack Transfer Switch (RTS) |
| Monitoring | Input power & breaker level monitoring (kWh, W, VA, PF, V, A) |
| Transfer Time | <4-8ms, Out-of-phase transfer supported |
| Inputs | 2 x NEMA L5-30P, 10ft (3m) cords |

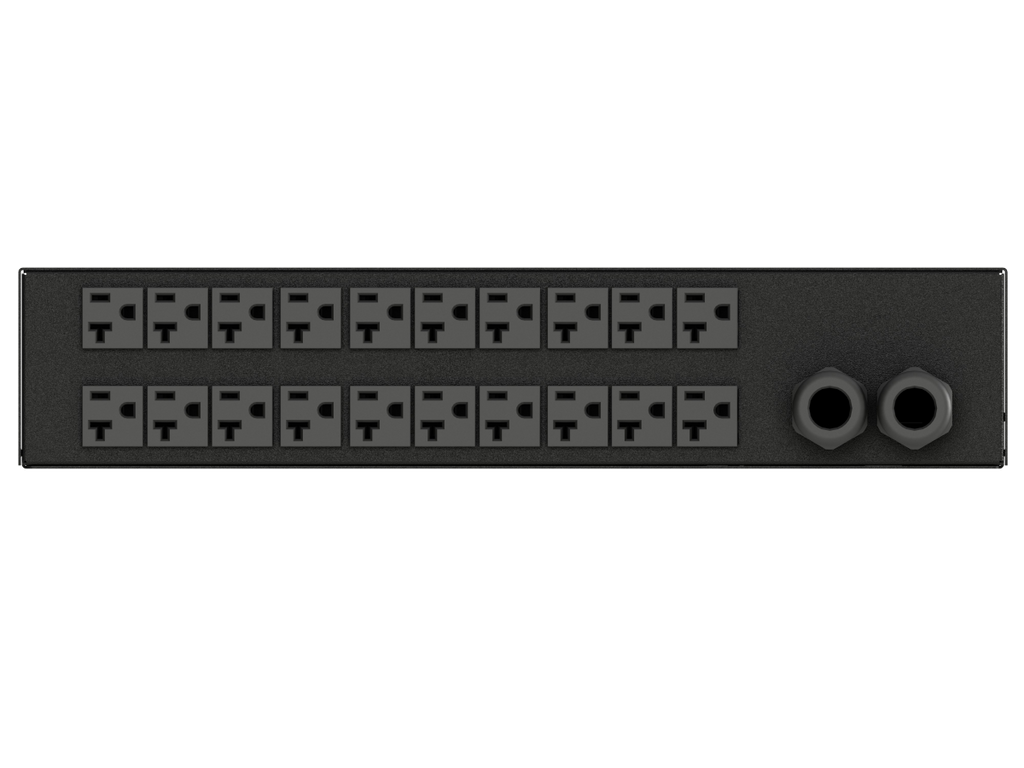

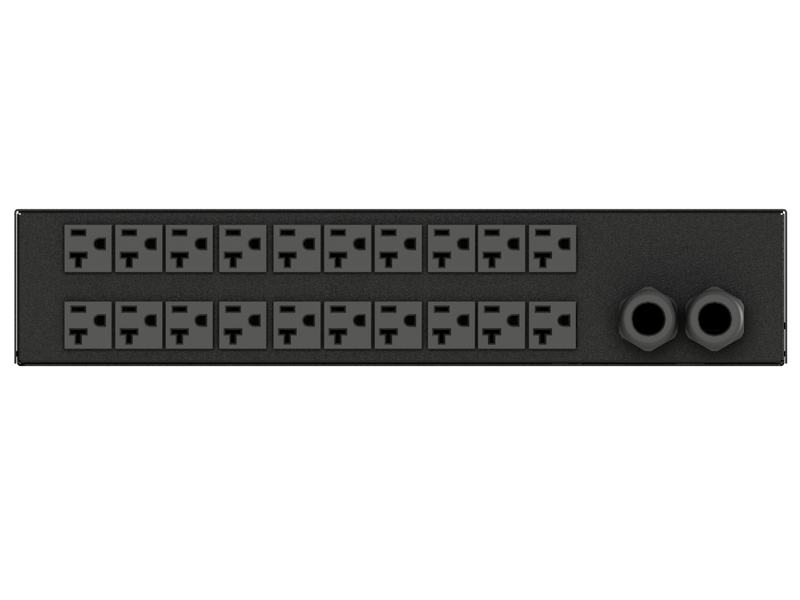

| Output Receptacles | 20 x NEMA 5-20R |
| Power Capacity | 30A, 120V, 2.8kW |
| Mounting | Horizontal Rackmount (19”), Adjustable 4-post (24”-37”), 2-post kit |
| Display | Auto-oriented LCD touchscreen display with LED overlay |
| Environmental Monitoring | Optional sensors (up to 16 via RJ connection) |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet ports |
| Protocols Supported | SNMP (v1/v2c/v3), HTTP/S, SSH, Modbus TCP, Syslog, RADIUS, and more |
| USB & Serial Support | USB, RS232 via RJ45 |
| Chassis Dimensions (HxWxD) | 3.39in x 17in x 18in (87mm x 432mm x 457mm) |
| Weight | 12 lbs (5.44 kg) |
| Chassis Color | Black powder coat |
| Certifications | UL & c-UL 62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 5-year (if registered within 120 days), otherwise 3-year |
