Description

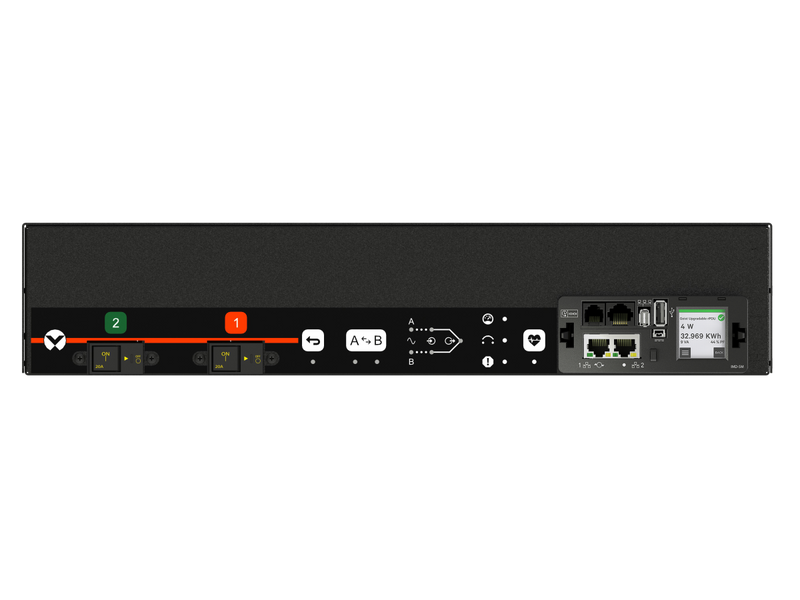

Ensure continuous uptime for single-corded IT equipment with the Vertiv VA4N32A0 Rack Transfer Switch (RTS). Designed for reliability, this horizontal rackmount rPDU delivers seamless auto-switching between dual input power sources in under 8 milliseconds. It features local and remote power monitoring, dual 10/100/1000 Ethernet ports, and support for up to 50 devices in a daisy chain—all with breaker-level current accuracy. Equipped with 24 C13/C19 combo outlets, dual L6-30P plugs, and advanced protocols, this RTS is ideal for critical infrastructure deployments.
| Specification | Details |
|---|---|
| Model Number | VA4N32A0 |
| Type | Rack Transfer Switch (RTS), Monitored Unit Level |
| Mounting | 19" Horizontal Rackmount (Adjustable 4-post, 2-post kit included) |
| Power Rating | 30A, 208V, 4.9kW |
| Input | Dual Input, 2x NEMA L6-30P Twistlock, 10ft cords |

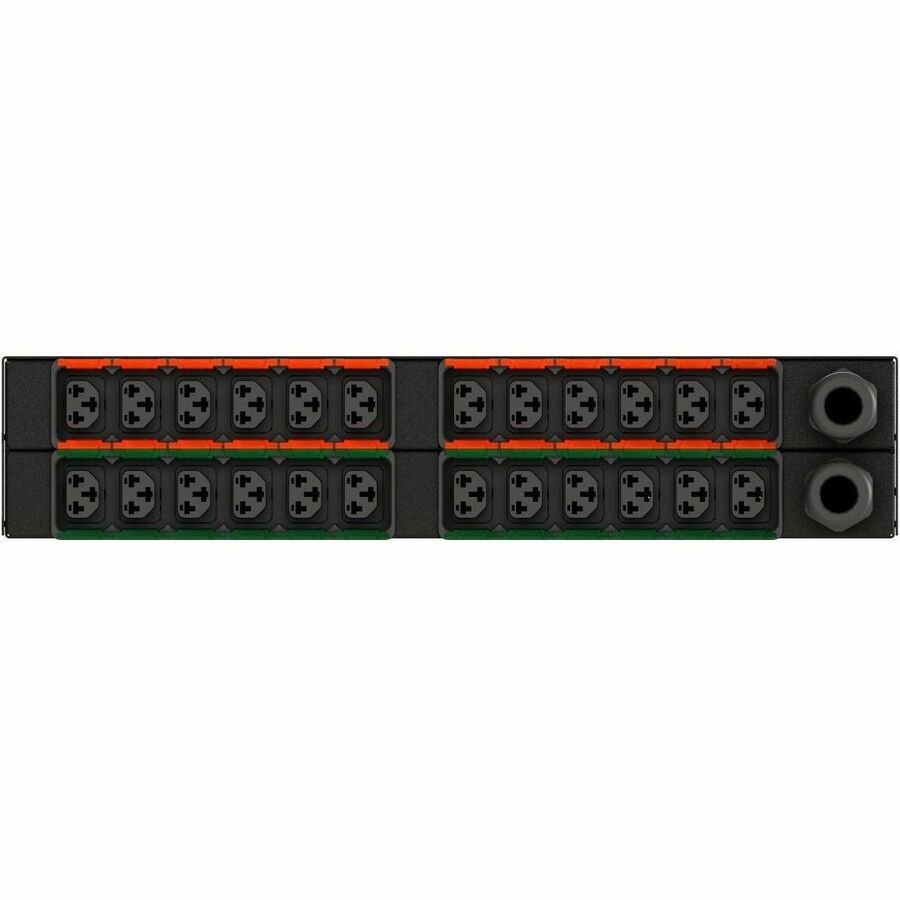

| Outlets | 24x Combination C13/C19 |
| Voltage Range | 200-240V |
| Transfer Time | <4–8ms |
| Switching Type | Automatic, No Phase Synchronization Required |
| Monitoring | Input & Breaker Level (kWh, W, VA, PF, V, A) |
| Protocols Supported | DHCP, SNMP v1/2c/3, Modbus TCP, SSH, HTTPS, Syslog, and more |
| Networking | Dual Gigabit Ethernet, Daisy Chain (up to 50 units) |
| Display | High-visibility LCD touchscreen display |
| Sensors Support | Optional environmental sensors (up to 16 via RJ connection) |
| Enclosure Color | Black Powder Coat |
| Chassis Dimensions (HxWxD) | 3.39 x 17 x 18 in / 87 x 432 x 457 mm |
| Weight | 19 lbs (8.62 kg) |
| Certifications | UL/c-UL 62368-1, FCC Part 15 Class A, RoHS |
| Compliance | TAA & BAA COTS Compliant |
| Warranty | 5-Year (with registration), otherwise 3-Year |
