Description

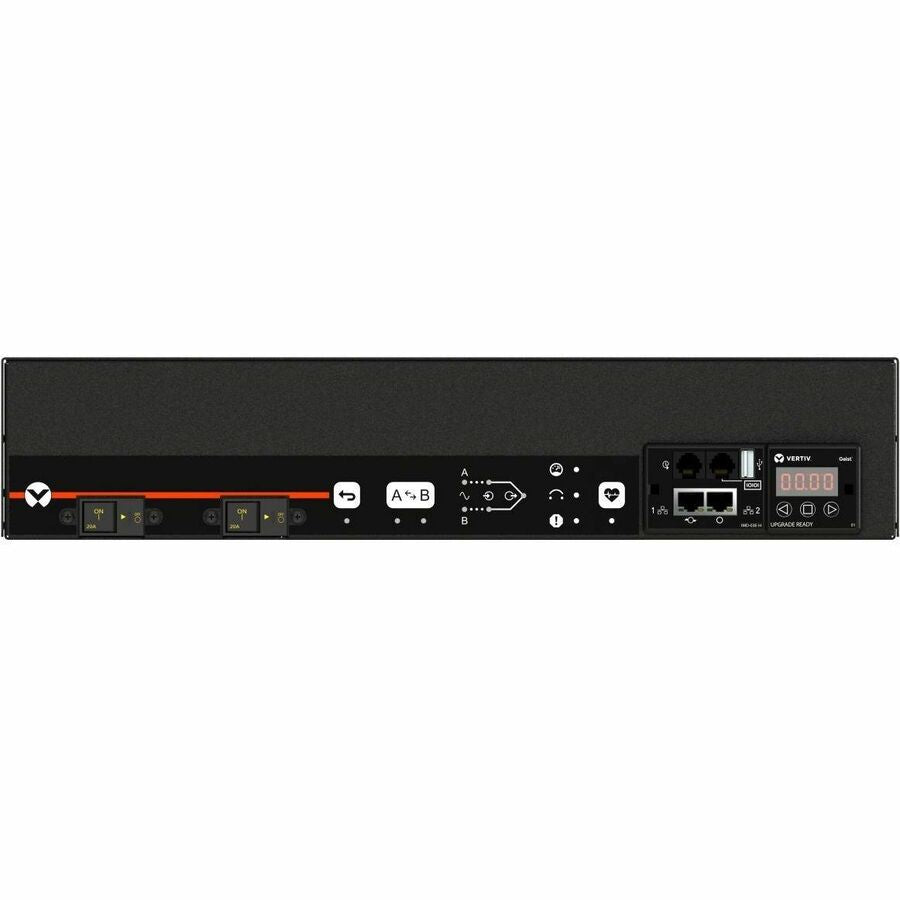

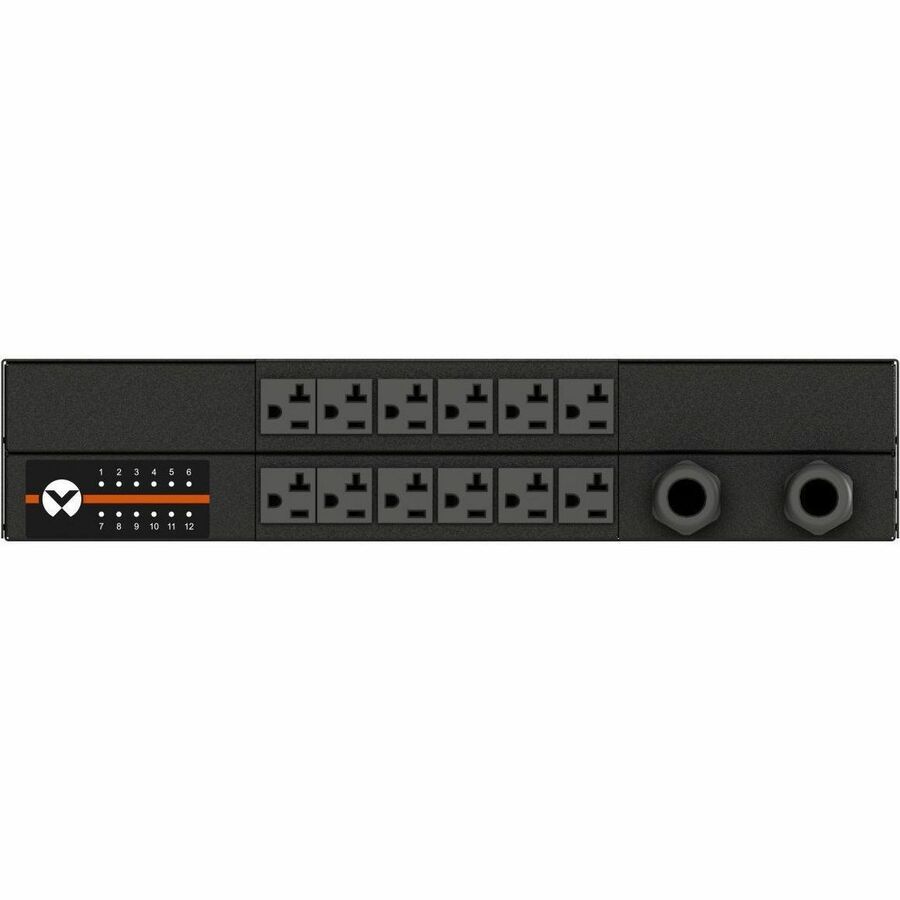

The Vertiv Geist VA6N3200 (Model ANR3E2R6-12S203-3TL5TL5A011-D) is a rack-mountable switched outlet monitored PDU that delivers reliable and intelligent power distribution for mission-critical environments. Featuring 12 NEMA 5-20R receptacles, dual NEMA L5-30P inputs, overcurrent protection, and advanced remote power management via protocols like SNMP, RADIUS, Modbus TCP, and more—this PDU is engineered for performance, uptime, and intelligent energy management. Daisy-chain up to 50 units on a single IP and take advantage of fault-tolerant connectivity with RSTP support.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Model Number | ANR3E2R6-12S203-3TL5TL5A011-D |
| Part Number | VA6N3200 |
| PDU Type | Switched Outlet Monitored |
| Plug Type | 2 x NEMA L5-30P |
| Receptacles | 12 x NEMA 5-20R |
| Input Voltage Range | 100–120V AC |
| Output Voltage | 120V AC |
| Power Rating | 2800W |
| Input Current | 30A |
| Input Frequency | 60Hz |
| Circuit Protection | Overcurrent, Single Pole, Circuit Breaker |
| Management Protocols | DHCP, SNMP (v1/v2c/v3), RADIUS, Modbus TCP, SSH, HTTPS, Syslog, JSON, etc. |
| Network Interface | RJ-45 |
| Mounting | Horizontal, Rack-mountable |
| Cord Length | 10 ft |
| Product Dimensions (HxWxD) | 3.4" x 17" x 18" |
| Color | Black Powder Coat |
| Max Operating Temp | 140°F (60°C) |
| Certifications | UL & c-UL 62368-1, FCC Part 15 Class A, RoHS |
| Weight (Shipping) | 12 lbs |
| Warranty | 3 years standard, upgradeable to 5 years with registration within 120 days |
