Description

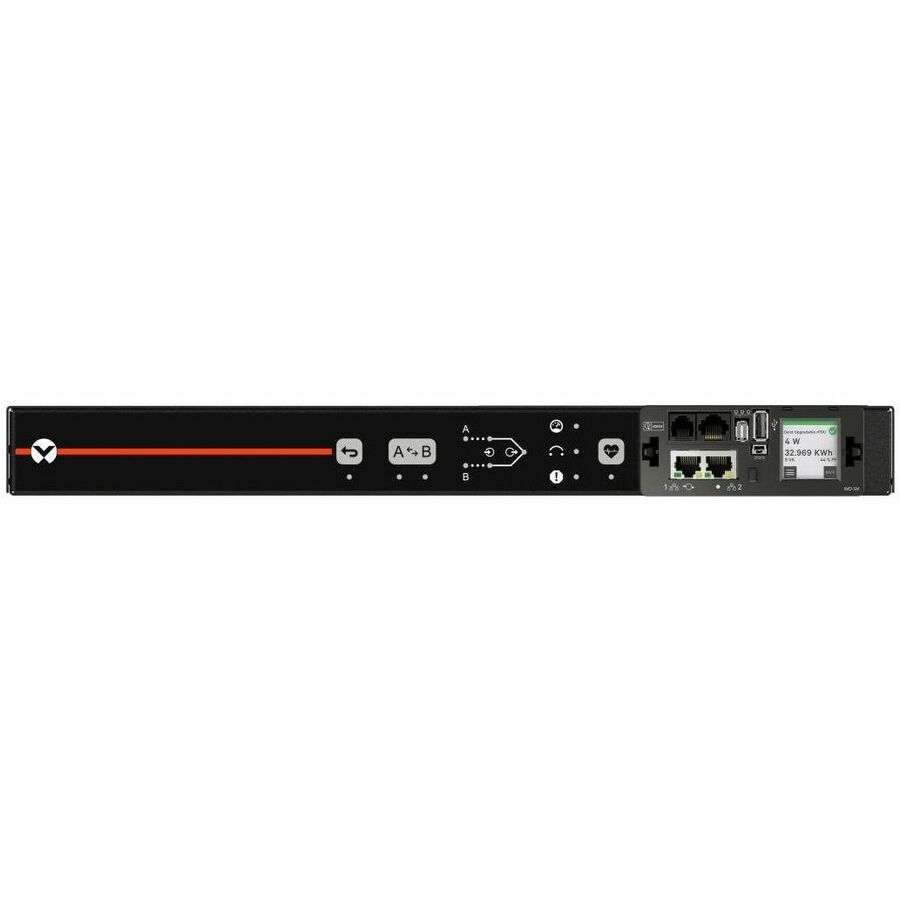

Ensure seamless power redundancy for single-corded IT equipment with the Vertiv VA5N11A0 Rack Transfer Switch. Featuring dual inputs and auto-switching capabilities, it delivers reliable power with a <8ms transfer time. Includes 6 x NEMA 5-15R outlets, local and remote monitoring, individual outlet control, and environmental sensor support. Daisy-chain up to 50 units on one IP for simplified network management. Ideal for mission-critical rack environments.
| Feature | Details |
|---|---|
| Model | VA5N11A0 |
| Function | Rack Transfer Switch (Switched with Unit Level Monitoring) |
| Form Factor | 19 in / 483 mm Horizontal Rackmount |
| Input Voltage | 100–120V |
| Current | 15A |
| Load Capacity | 1.4kW |
| Transfer Time | <4–8ms |
| Outlets | 6 x NEMA 5-15R (Rear, Individual) |
| Input Plugs | 2 x NEMA 5-15P |
| Cord Length | 10 ft / 3 m |
| Monitoring | Input power monitoring, outlet switching, local display |
| Environmental Monitoring | Yes (via optional remote sensors, supports up to 16) |
| Ethernet Daisy Chaining | Up to 50 devices, RSTP support |
| Network Protocols | SNMP v1/v2c/v3, HTTP/S, SSH, RADIUS, Modbus TCP, etc. |
| USB & Serial Ports | USB, RS232 via RJ45 |
| Indicators | 6 LEDs + LCD auto-oriented touchscreen |
| Mounting Options | Adjustable 4-post (24"-37") and 2-post kit included |
| Dimensions (HxWxD) | 1.72 x 17 x 18 in / 44 x 432 x 457 mm |
| Weight | 12 lbs / 5.44 kg |
| Finish | Heavy Steel, Black Powder Coat |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5 years (with registration), otherwise 3 years |
