Description

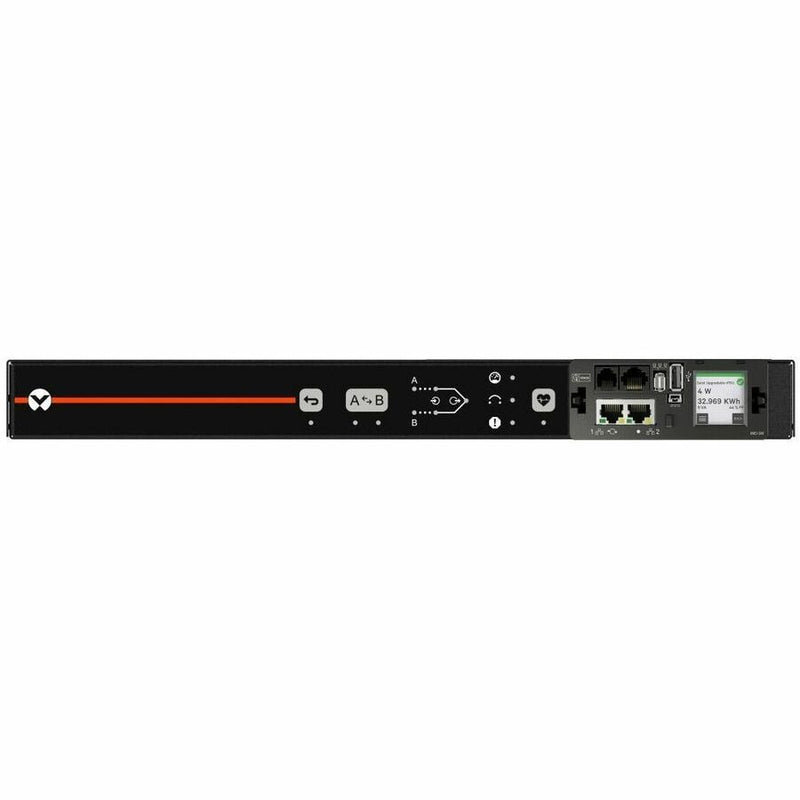

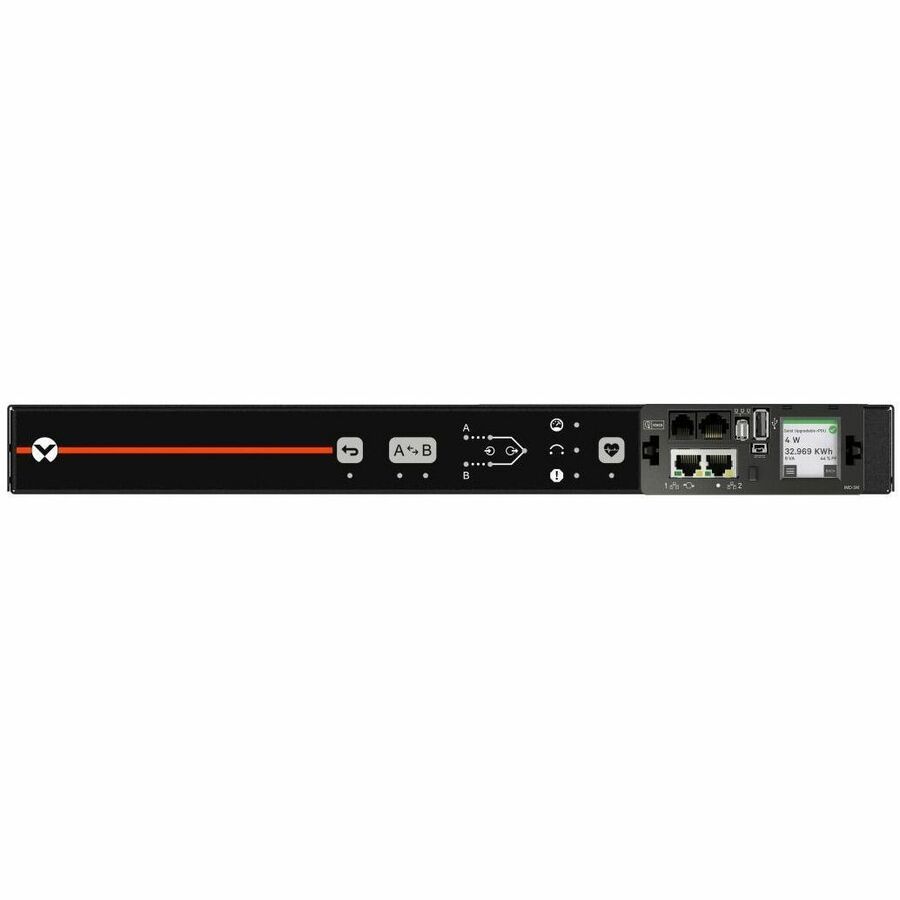

The Vertiv VA7N11A0 Rack Transfer Switch (RTS) delivers reliable redundant power to single-corded devices by seamlessly switching between dual input sources in under 8ms. Featuring outlet-level switching, power and environmental monitoring, and robust daisy chaining, it supports up to 50 rPDUs on a single IP address. This 15A, 120V RTS includes six NEMA 5-15R outlets and dual 10ft power cords with NEMA 5-15P plugs in a 19-inch horizontal mount design—perfect for enhancing uptime in critical IT environments.
| Specification | Details |
|---|---|
| Model | VA7N11A0 |
| Type | Rack Transfer Switch (RTS) |
| Mounting | 19" Horizontal Rackmount |
| Input Power | (2) NEMA 5-15P, 120V, 15A, 50/60Hz |
| Output Receptacles | (6) NEMA 5-15R |
| Load Capacity | 1.4kW |
| Switching Time | < 4–8ms (Auto Transfer) |
| Monitoring | Input/Outlet-Level (kWh, W, VA, PF, V, A) |
| Remote Management | Outlet Switching, Sequential Startup |
| Network Connectivity | Dual Gigabit Ethernet, Daisy-Chain Capable |
| Protocols Supported | SNMP v1/v2c/v3, HTTP/S, SSH, Modbus TCP, etc. |
| Environmental Monitoring | Optional Sensors via RJ Port (up to 16) |
| Display | LCD Touchscreen with LED Indicators |
| USB / Serial | USB, RS232 via RJ45 |
| Construction | Black Powder-Coated Heavy Steel |
| Mount Compatibility | 2-Post and 4-Post (24"–37" adjustable) |
| Chassis Dimensions | 1.72" x 17" x 18" (44mm x 432mm x 457mm) |
| Weight | 12 lbs (5.44 kg) |
| Operating Temperature | Up to 60°C / 140°F |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5 Years (with registration within 120 days) |
