Description
The Vertiv PowerIT VA7N31A0 Rack Transfer Switch (RTS) ensures uninterrupted power delivery to single-corded devices by automatically switching between dual power sources in under 8ms. This 30A, 208V, 4.9kW horizontal rPDU features 6 combination C13/C19 outlets, advanced outlet-level monitoring, and remote switching capabilities. Daisy-chain up to 50 devices and monitor power usage down to the device level with ANSI C12.1 and IEC 62053-21 accuracy. Optional environmental sensors enhance uptime protection, and its 5-year limited warranty ensures long-term reliability.
| Feature | Details |
|---|---|
| Part Number | VA7N31A0 |
| Type | Rack Transfer Switch with Switched Outlet Monitoring |
| Power Capacity | 30A, 208V, 4.9kW |
| Form Factor | 19" Horizontal Rackmount (1U) |
| Input Type | Dual NEMA L6-30P |

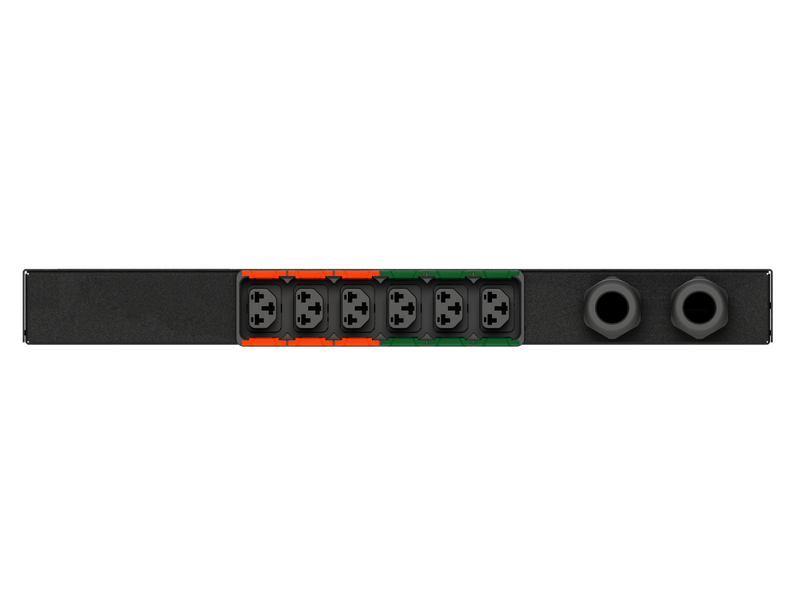

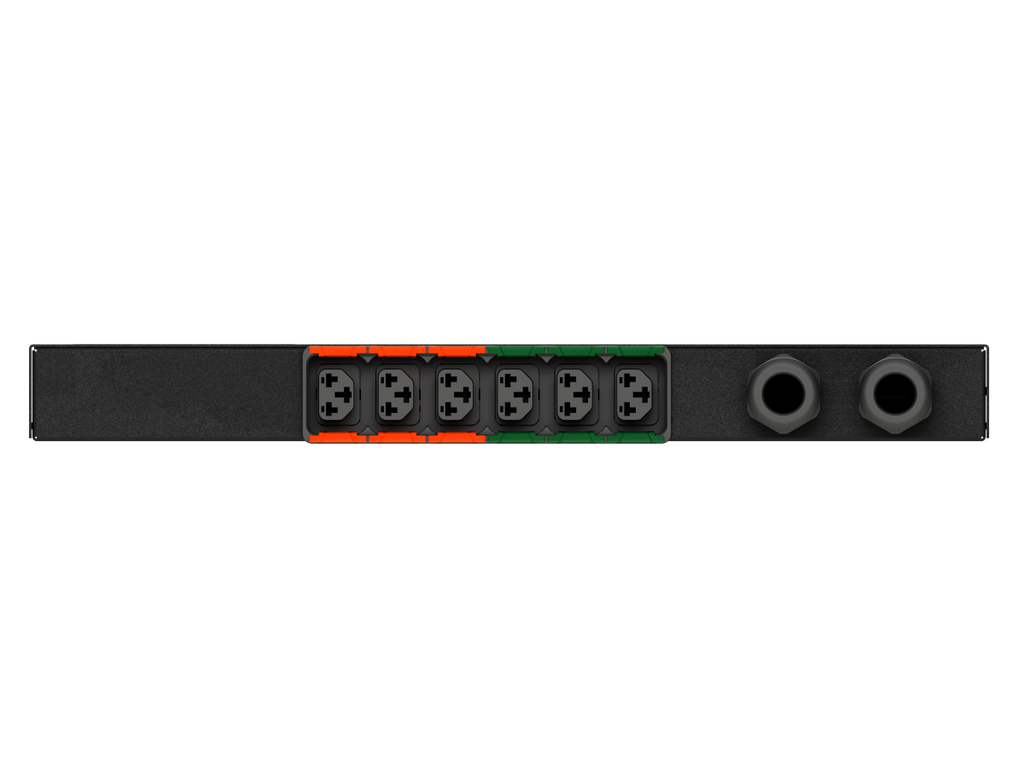

| Outlets | 6x Combination C13/C19 |
| Monitoring | Input & Outlet Power (kWh, W, VA, PF, V, A); Breaker Monitoring |
| Switching | Auto Transfer in <4–8ms (Supports Out-of-Phase Transfers) |
| Remote Management | Web, SNMP, SSH, JSON API, Modbus TCP, Daisy Chain Ethernet |
| Environmental Sensors | Optional; supports up to 16 via RJ connection |

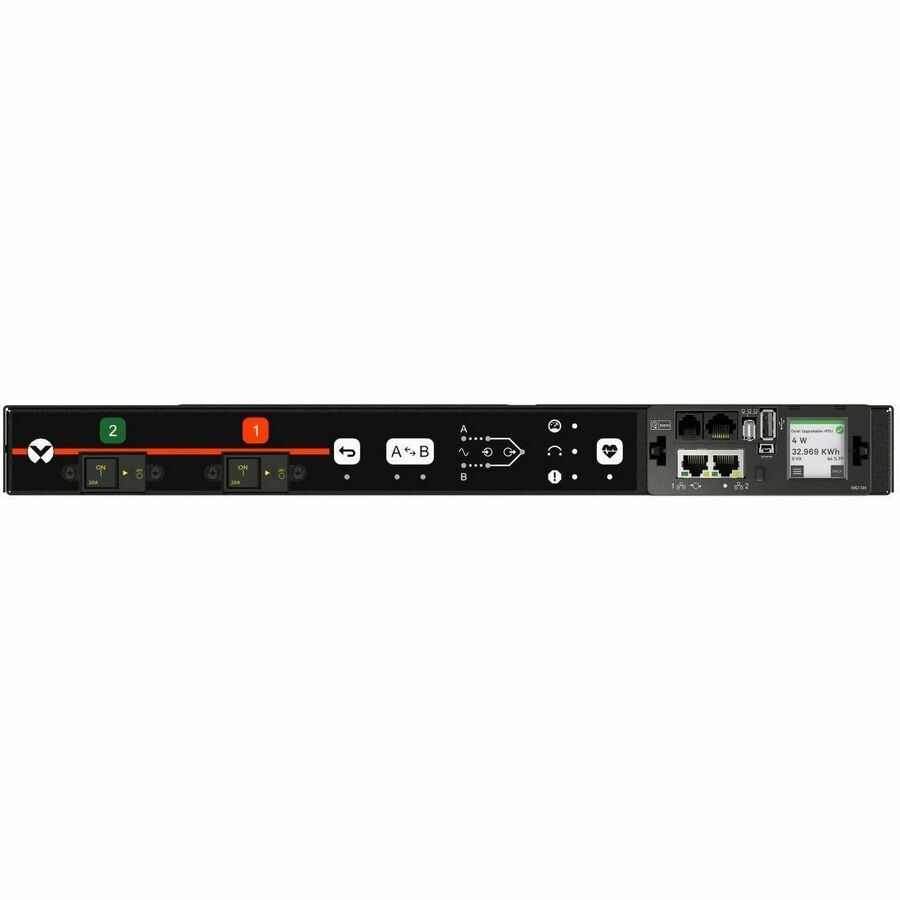

| Display | High-visibility LCD touchscreen display |
| Construction | Steel with Black Powder Coat Finish |
| Mounting Options | Adjustable 4-post (24"–37"), 2-post kit included |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Operating Temperature | Up to 60°C (140°F) |
| Warranty | 5-year (with registration within 120 days), otherwise 3-year standard |
| Dimensions (HxWxD) | 1.72" x 17" x 18" (44mm x 432mm x 457mm) |
| Weight | 12 lbs (5.44 kg) |
