Description

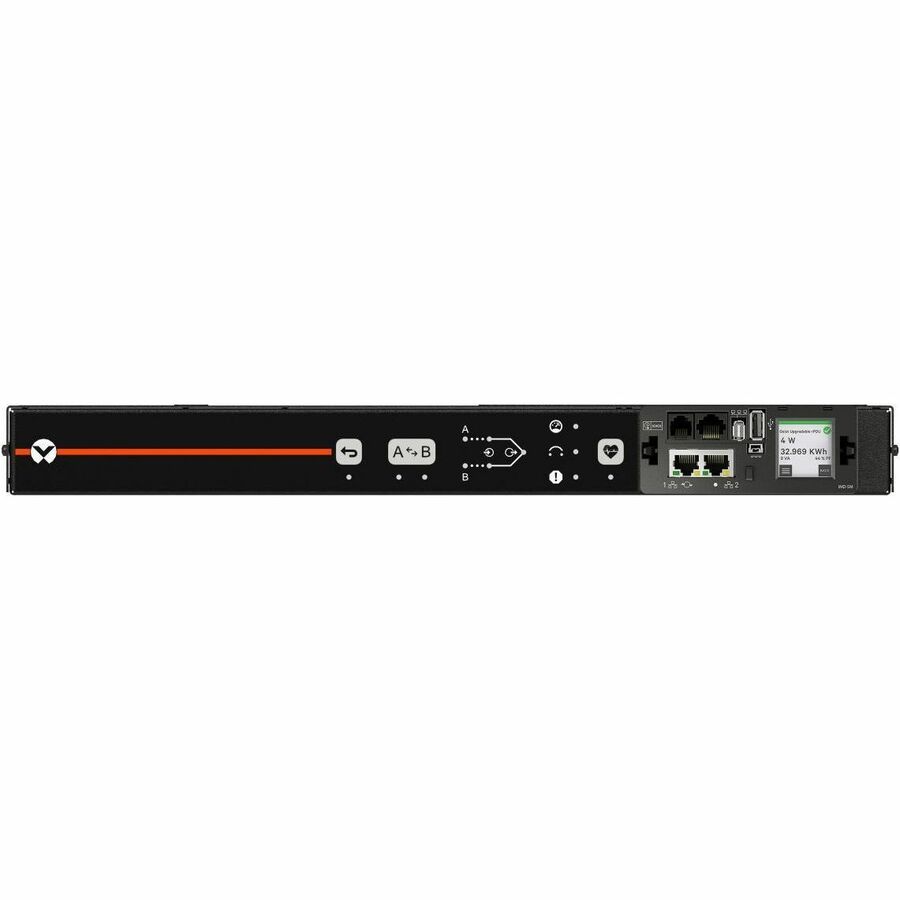

The Vertiv PowerIT VA5U11A0 Rack Transfer Switch (RTS) delivers reliable, redundant power to single-corded devices by automatically switching to an alternative power source in under 8 milliseconds—no synchronization required. Designed for high-availability IT environments, it features switched outlet-level control, input power monitoring, and optional environmental sensors for proactive infrastructure management. Ideal for edge deployments, data centers, or critical IT spaces, this horizontal 1U rPDU supports daisy chaining, outlet reboot, remote monitoring, and dual Ethernet connectivity for seamless network integration.
| Specification | Details |
|---|---|
| Model Number | VA5U11A0 |
| Product Type | Rack Transfer Switch (RTS) rPDU |
| Monitoring | Input power with outlet switching; environmental via optional sensors |
| Transfer Time | <4-8 milliseconds |
| Input Type | (2) IEC60320 C14 inlets (cords sold separately) |

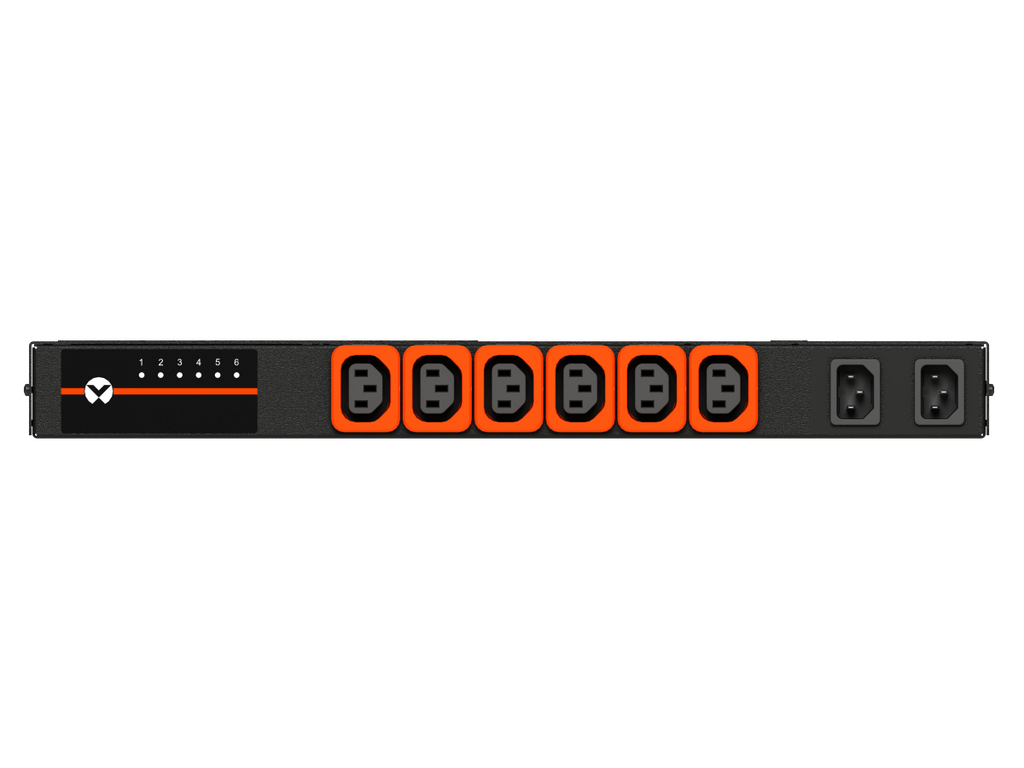

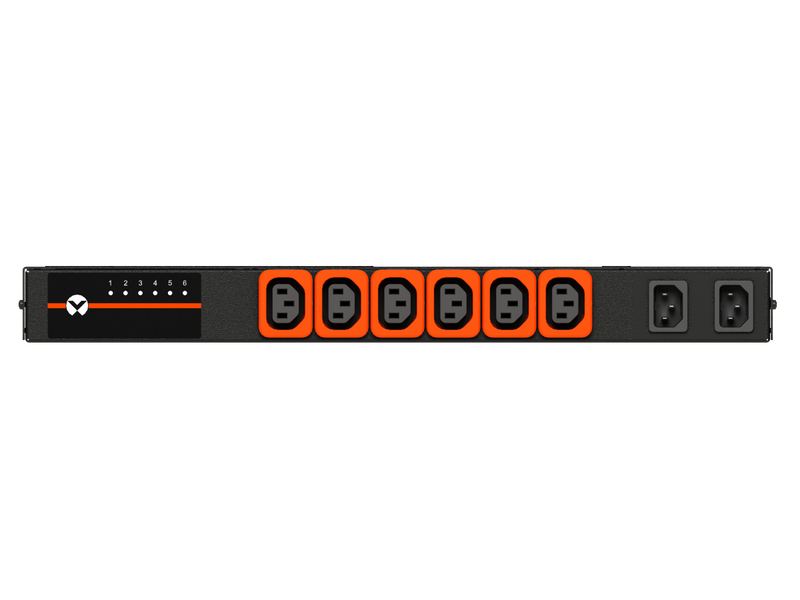

| Output Receptacles | (6) Locking IEC C13, U-Lock (1 circuit, orange ID) |
| Voltage Range | 100–240V |
| Current Rating | 10A or 15A |
| Power Capacity | 1.4kW (120V), 2.4kW (208V), 2.3kW (230V) |
| Mounting | 19" Horizontal Rackmount (1U), Adjustable 4-Post (24"–37"), 2-Post Kit |
| Communication Ports | Dual 10/100/1000Mbps Ethernet, USB, RS232 (RJ45), RJ sensor jack |
| Protocols Supported | SNMP, HTTPS, SSH, DHCP, RADIUS, Syslog, Modbus TCP, and more |
| Indicators | 6 LEDs, Local high-visibility LCD display |
| Chassis Color | Black Powder Coat |
| Dimensions (H x W x D) | 1.72" x 17" x 18" (44mm x 432mm x 457mm) |
| Weight (Shipped) | 12 lbs (5.44 kg) |
| Certifications | UL/c-UL 62368-1, CE, UKCA, RoHS, FCC Part 15 Class A, EN 55032/55035 |
| Operating Temperature | Up to 60°C (140°F) |
| Warranty | 5 years (if registered within 120 days), otherwise 3 years |
