Description
The Vertiv VA7U11A0 PowerIT™ Rack Transfer Switch (RTS) ensures reliable, redundant power delivery for single-corded IT devices. Featuring dual input auto-transfer switching in under 8ms, this horizontal 19" rPDU supports 10A or 15A at 100–240V with six locking IEC C13 outlets. Enjoy outlet-level switching, remote monitoring, and daisy-chained connectivity for up to 50 devices on one IP. With environmental sensor support, high-visibility displays, and industry-grade certifications, the VA7U11A0 optimizes uptime and power efficiency in modern IT environments.
| Specification | Details |
|---|---|
| Model | VA7U11A0 |
| Product Type | Rack Transfer Switch with Switched Outlet Monitoring |
| Input Voltage | 100–240V |
| Current Rating | 10A or 15A |
| Load Capacity | 1.4kW (120V), 2.4kW (208V), 2.3kW (230V) |
| Transfer Time | <4–8ms |

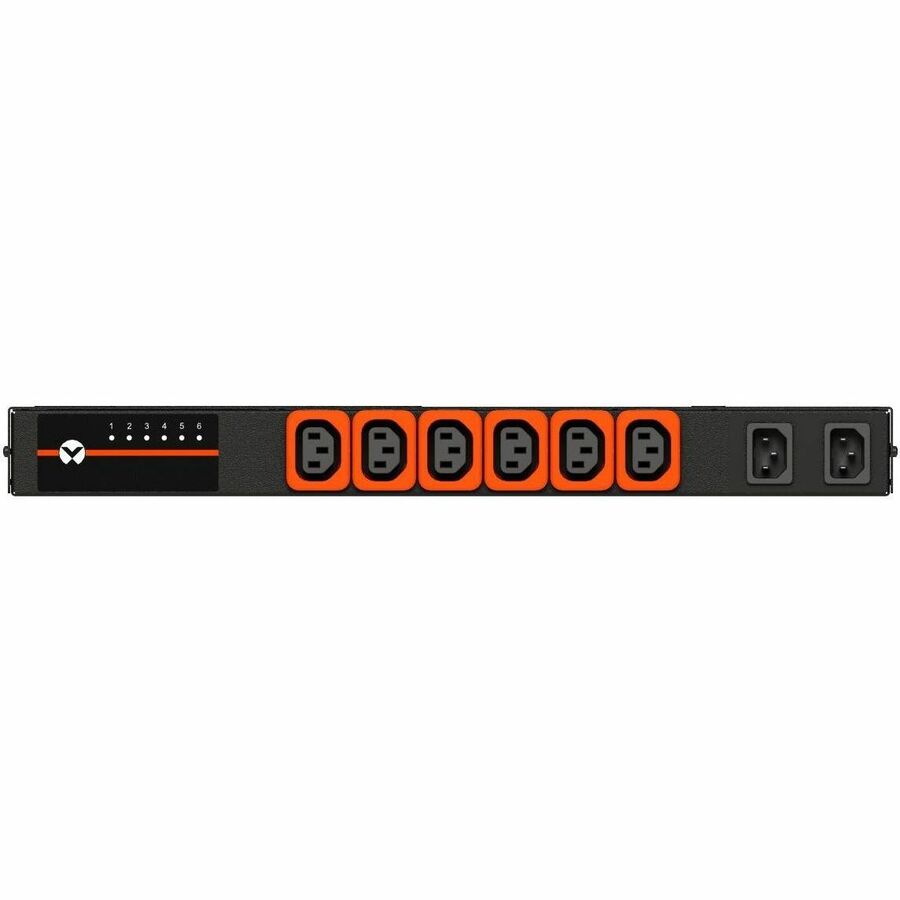

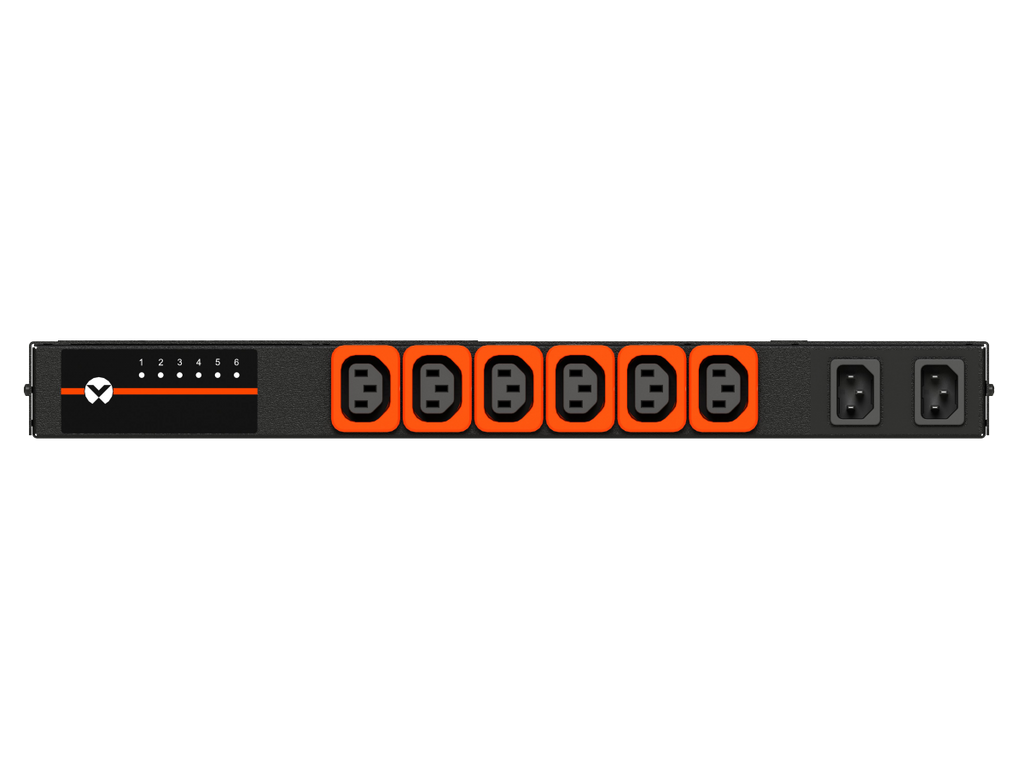

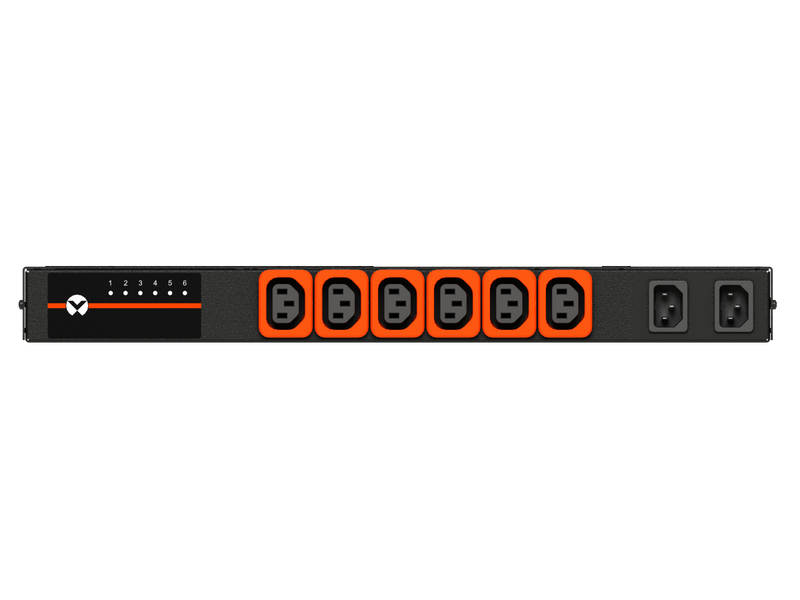

| Receptacles | (6) Locking IEC C13 |
| Input Type | (2) IEC60320 C14 Inlets (cords sold separately) |
| Form Factor | Horizontal 19 in. Rackmount |
| Monitoring | Input & Outlet Monitoring (kWh, W, VA, PF, V, A) |
| Switching | Auto Transfer + Outlet-Level Switching |
| Network Connectivity | Dual Ethernet (10/100/1000Mbps), SNMP, HTTPS, SSH, Modbus TCP, etc. |
| Environmental Monitoring | Optional via remote sensors (supports up to 16) |
| Mounting Options | Adjustable 4-post (24–37"), 2-post kit included |
| Chassis Finish | Black Powder-Coated Steel |

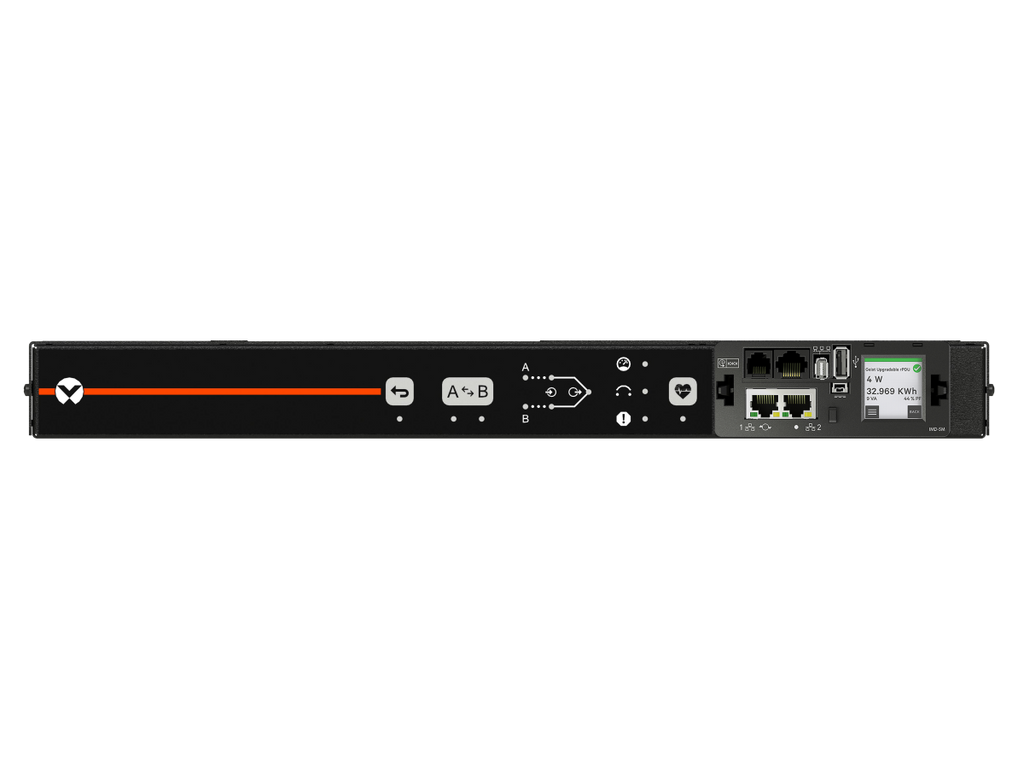

| Display | High-visibility LED and LCD touchscreen |
| Certifications | UL/c-UL 62368-1, CE, UKCA, RoHS, FCC Part 15 Class A, RCM, China RoHS |
| Dimensions (HxWxD) | 1.72 x 17 x 18 in. (44 x 432 x 457 mm) |
| Weight | 12 lbs (5.44 kg) |
| Warranty | 5-Year (with registration within 120 days), else 3-Year Standard |
