Description

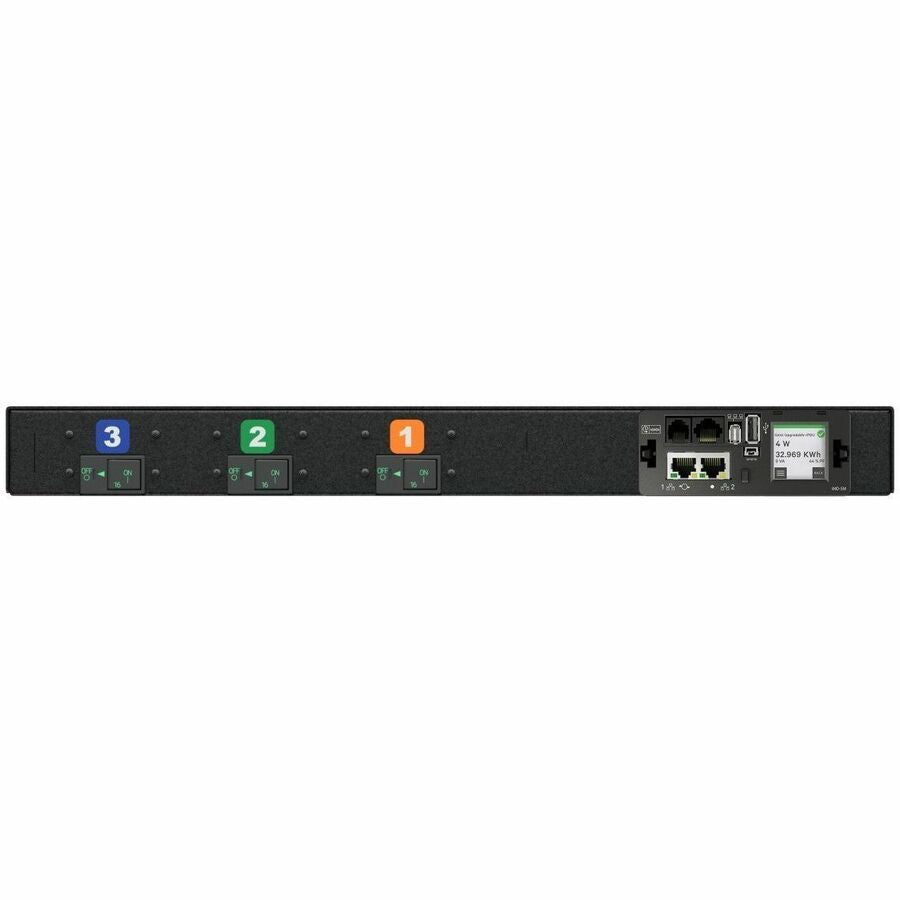

The Vertiv VP4UU1A0 PowerIT rPDU delivers reliable, intelligent power distribution with unit-level EC monitoring for critical IT equipment. This 1U horizontal rack PDU features 12 combination C13/C19 outlets and a universal inlet supporting up to 11.0kW. Equipped with high-accuracy power and circuit monitoring, environmental sensor support, and advanced network protocols, it ensures uptime and provides actionable energy data. Built with a black powder-coated steel chassis, the unit includes a local LCD display and daisy-chain Ethernet capability for scalable deployments.
| Specification | Details |
|---|---|
| Part Number | VP4UU1A0 |
| Mounting Configuration | 1U Horizontal |
| Power Capacity | Up to 11.0kW (Variable) |
| Input Power | Universal Inlet |
| Input Options | 48A 1-Phase 240V / 24A 3-Phase Delta 240V / 16A 3-Phase WYE 415V |
| Over Current Protection | (3) 16A Double Pole Magnetic Breakers (10kAIC) |

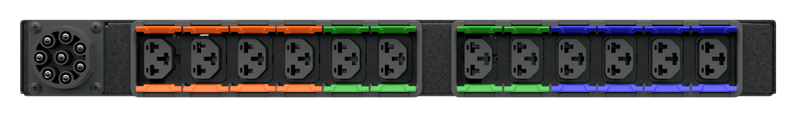

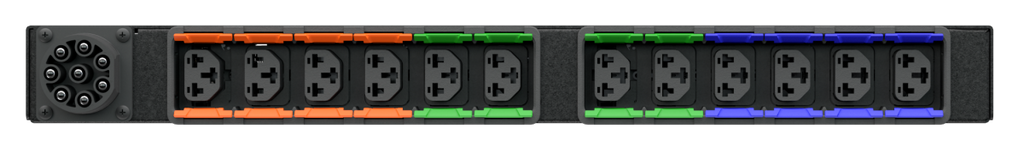

| Output Receptacles | 12x Combination C13/C19 |
| Receptacle Layout | Banks of 6; 4 outlets per breaker |
| Circuit Identification | 3 Circuits: Orange, Green, Blue |
| Monitoring | Unit Level (kWh, W, VA, PF) & Circuit Monitoring (A) |
| Accuracy | Power: ±1% / Current: ±2% |
| Environmental Monitoring | Via optional sensors (up to 16 supported) |
| Display | Local LCD Touchscreen (Auto-Oriented) |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet |
| Protocols Supported | DHCP, HTTP/HTTPS, SNMP (v1/v2c/v3), RADIUS, Modbus TCP, etc. |
| Data Access | CSV, JSON API |
| USB & Serial Ports | Yes (USB + RS232 via RJ45) |
| Chassis Material & Finish | Steel with Black Powder Coat |
| Operating Temperature | Up to 60°C (140°F) |
| Dimensions (HxWxD) | 1.72in x 17in x 9in (44mm x 432mm x 229mm) |
| Weight | 14 lbs (6.35 kg) |
| Certifications | UL, c-UL 62368-1, CE, UKCA, RoHS, FCC Class A |
| Warranty | 5-year limited (if registered within 120 days) |
