Description

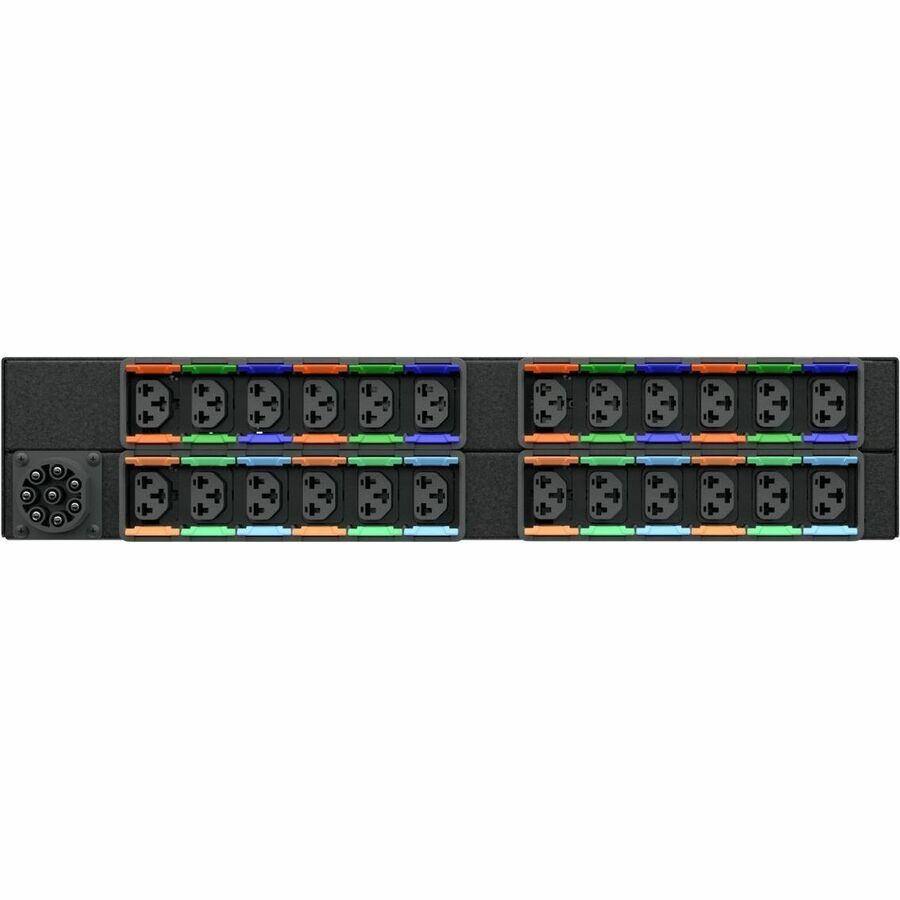

The Vertiv VP4UV2A1 is a high-performance Monitored rPDU designed to deliver reliable power distribution to critical IT infrastructure. With 22.0kW capacity, 24 combination C13/C19 outlets, and a universal inlet, this 2U horizontal unit features hot-swappable monitoring, local and remote access, environmental sensor support, and advanced network protocols. It simplifies deployment with daisy-chaining for up to 50 devices and ensures uptime with comprehensive breaker and circuit monitoring.
| Attribute | Details |
|---|---|
| Model Number | VP4UV2A1 |
| Power Capacity | Up to 22.0kW (32A WYE 3-Phase 240/415V Max) |
| Receptacles | (24) Combination C13/C19 |
| Mounting Orientation | Horizontal, 2U, 19in Recess Mount |
| Input Plug Type | Universal Inlet |
| Monitoring | Unit-Level EC, Input & Per Phase, Circuit Breaker |
| Display | Local LCD Touchscreen, Auto-Oriented |
| Environmental Monitoring | Supports optional sensors via RJ port (up to 16) |
| Network Connectivity | Dual Ethernet (10/100/1000 Mbps) |
| Supported Protocols | SNMP (v1/v2c/v3), SSH, HTTPS, Modbus TCP, etc. |
| Daisy Chaining | Up to 50 units, fault-tolerant with RSTP |
| Breakers | (6) 16A Double Pole Magnetic Breakers (10kAIC) |
| Power Measurements Accuracy | ANSI C12.1, IEC 62053-21 at 1% Accuracy |
| Color | Black Powder-Coated Heavy Steel |
| Chassis Dimensions | 3.39in x 17in x 9in (87mm x 432mm x 229mm) |
| Weight | 16 lbs (7.26 kg) |
| Certifications | UL 62368-1, c-UL, CE, UKCA, FCC Class A, RoHS |
| Warranty | 5-year limited (with registration), 3-year standard |
