Description

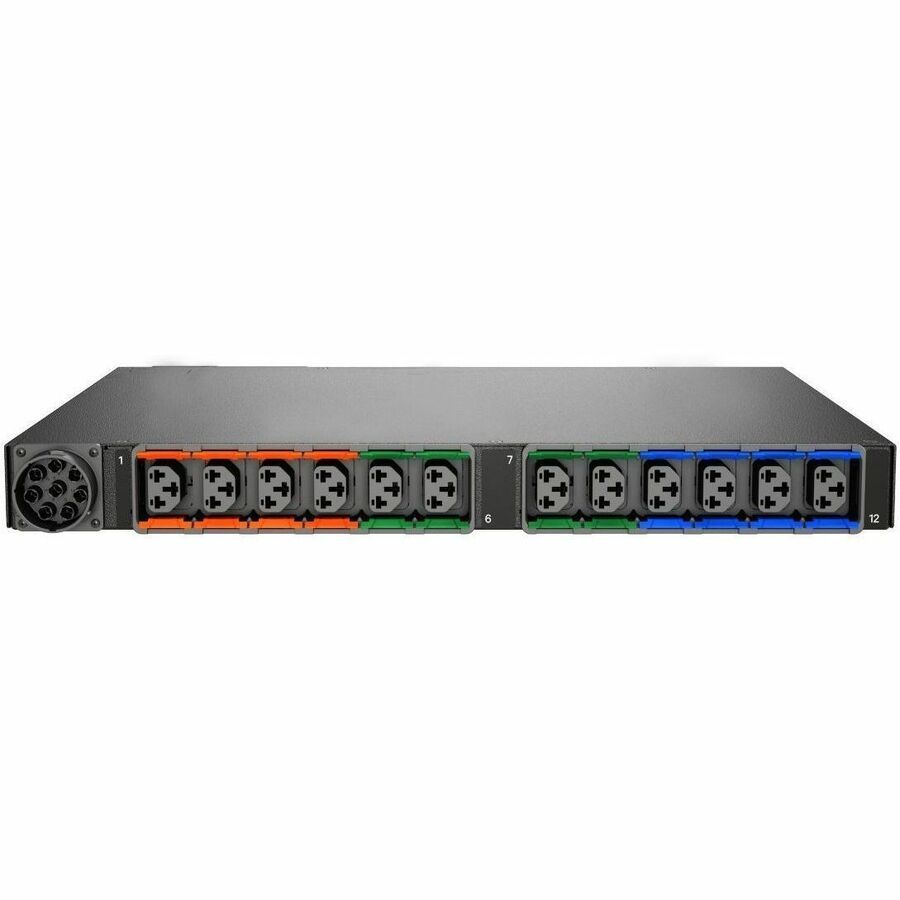

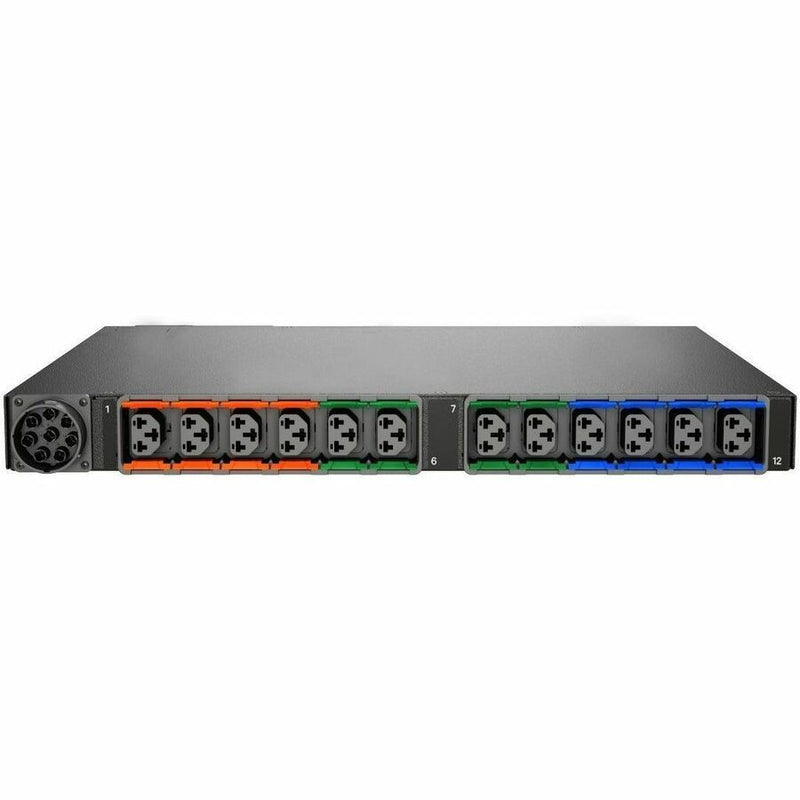

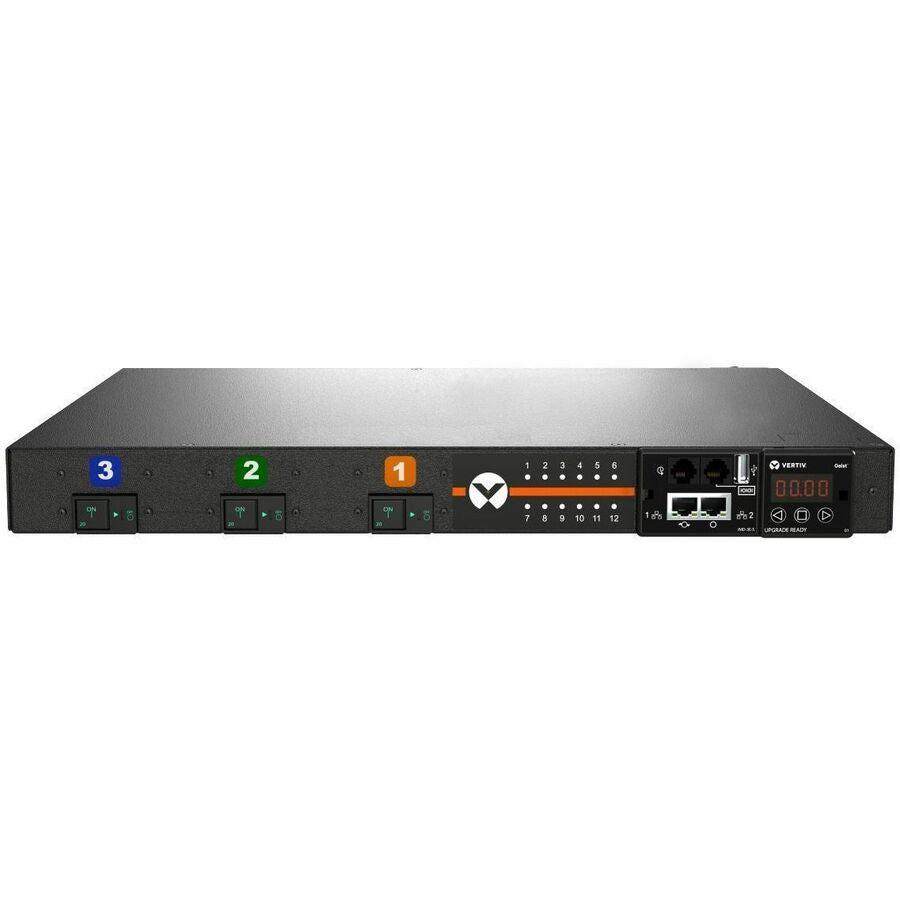

The Vertiv Geist UR30201 rPDU (model DUR3E1R6-12CF17-1S02A0H00-S) delivers robust, rack-mountable, monitored power distribution with 12 universal C13/C19 combination outlets. Designed for high-availability IT environments, it features 3-phase input (230V/415V AC), LED display, and advanced environmental monitoring capabilities. With support for daisy-chaining up to 50 units and hot-swappable monitoring upgrades, this horizontal 1U PDU is ideal for data centers requiring real-time energy usage visibility, fault tolerance, and network security.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Model Number | DUR3E1R6-12CF17-1S02A0H00-S |
| Part Number | UR30201 |
| Product Type | Monitored Rack PDU (rPDU) |
| Input Voltage | 230 V AC / 415 V AC |
| Input Current | 48 A |
| Input Frequency | 60 Hz |
| Input Plug Type | Universal Input |
| Receptacles | 12 x Combination C13/C19 |
| Power Capacity | 11 kW |
| Form Factor | 1U Horizontal Rack-Mountable |
| Dimensions (HxWxD) | 1.7" x 17" x 12" |
| Mounting | Adjustable Mount Brackets Included |
| Color | Black Powder Coat |
| Monitoring | Outlet-Level Monitoring (LED Display + Network) |
| Network Management | RJ-45 Port, SNMP, SSH, RADIUS, Syslog, JSON, Modbus TCP, DHCP, HTTPS, etc. |
| Environmental Monitoring | Yes (optional sensors supported) |
| Protection | Overcurrent Protection (Double Pole) |
| Certifications | UL, CE, UKCA, FCC, IEC 62368-1, RoHS, TAA Compliant |
| Operating Temperature | Up to 140°F (60°C) |
| Weight | 1 lb |
| Warranty | 5-Year Limited (with registration); 3-Year Default |
| Country of Origin | United States |
