Description

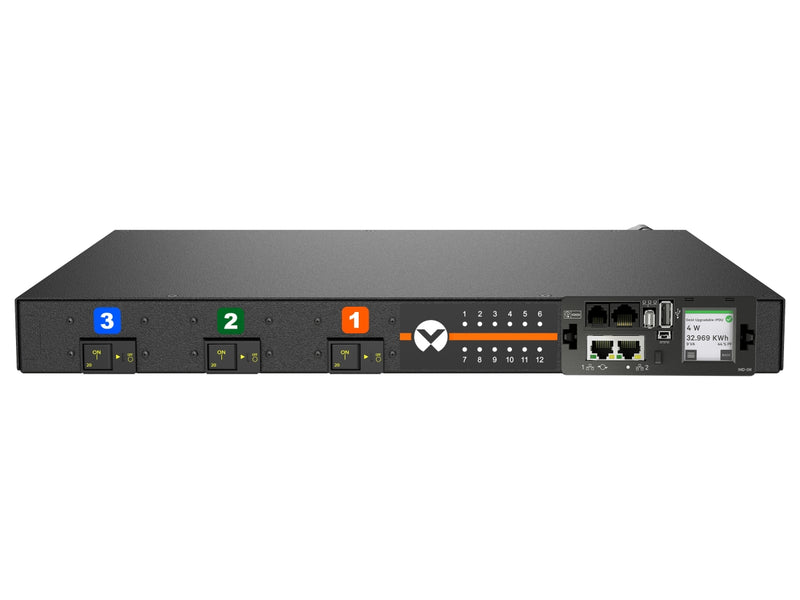

The Vertiv VP6UU1A0 PowerIT rPDU delivers advanced power distribution with outlet-level EC monitoring for modern IT infrastructure. Designed for high reliability, this 1U horizontal unit features 12 universal C13/C19 outlets and a hot-swappable monitoring device. It supports total unit, outlet, and circuit-level monitoring, environmental sensing via optional sensors, and daisy-chain Ethernet connectivity. Ideal for dynamic data center environments, this rPDU supports up to 11.0kW of power and integrates seamlessly with existing power infrastructure through a universal input inlet.
| Specification | Details |
|---|---|
| Model Number | VP6UU1A0 |
| Mounting | 1U Horizontal |
| Input Type | Universal Inlet |

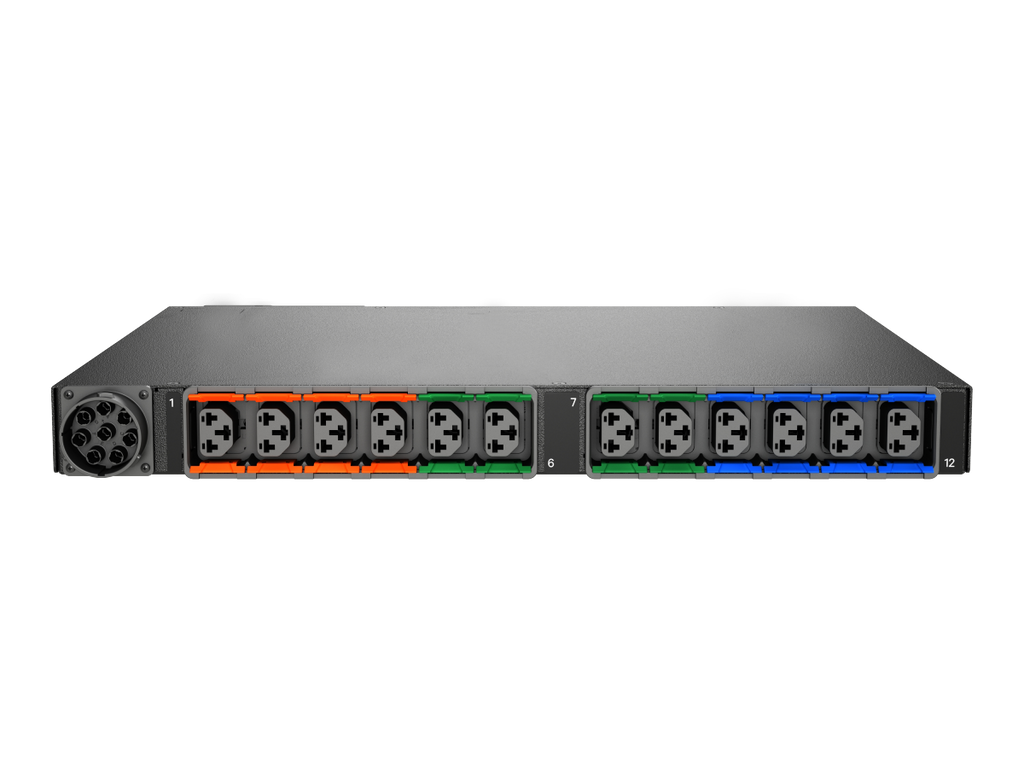

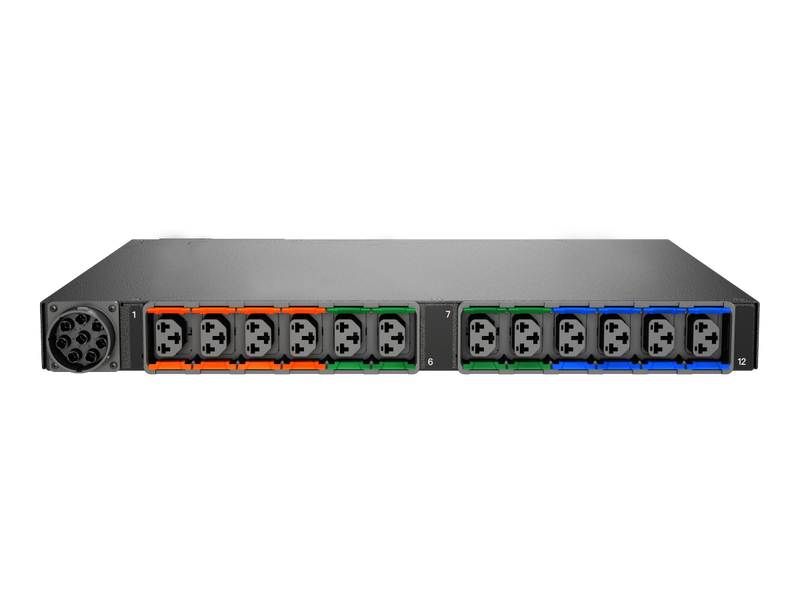

| Receptacle Type | Combination C13/C19 x12 |
| Max Power Capacity | Up to 11.0kW |
| Input Power Options | 48A 1PH / 24A 3PH DELTA / 16A 3PH WYE |
| Overcurrent Protection | (3) 16A Double Pole Magnetic Breakers (10kAIC) |
| Monitoring Level | Monitored - Outlet Level, Circuit, and Unit |
| Networking | Dual Ethernet, SNMP v1/v2c/v3, Modbus TCP, JSON, Syslog |
| Display | Local high visibility LCD touchscreen |
| Environmental Monitoring | Optional sensors, RJ jack supports up to 16 sensors |
| Compliance | CE, UL 62368-1, FCC Class A, RoHS, TAA, BAA, UKCA, RCM |
| Chassis Dimensions (HxWxD) | 1.72in x 17in x 12in (44mm x 432mm x 305mm) |
| Finish | Black Powder Coat Steel |
| Weight | 12 lbs (5.44 kg) |
| Warranty | 5 years with registration (otherwise 3 years) |
| Country of Origin | USA |
