Description

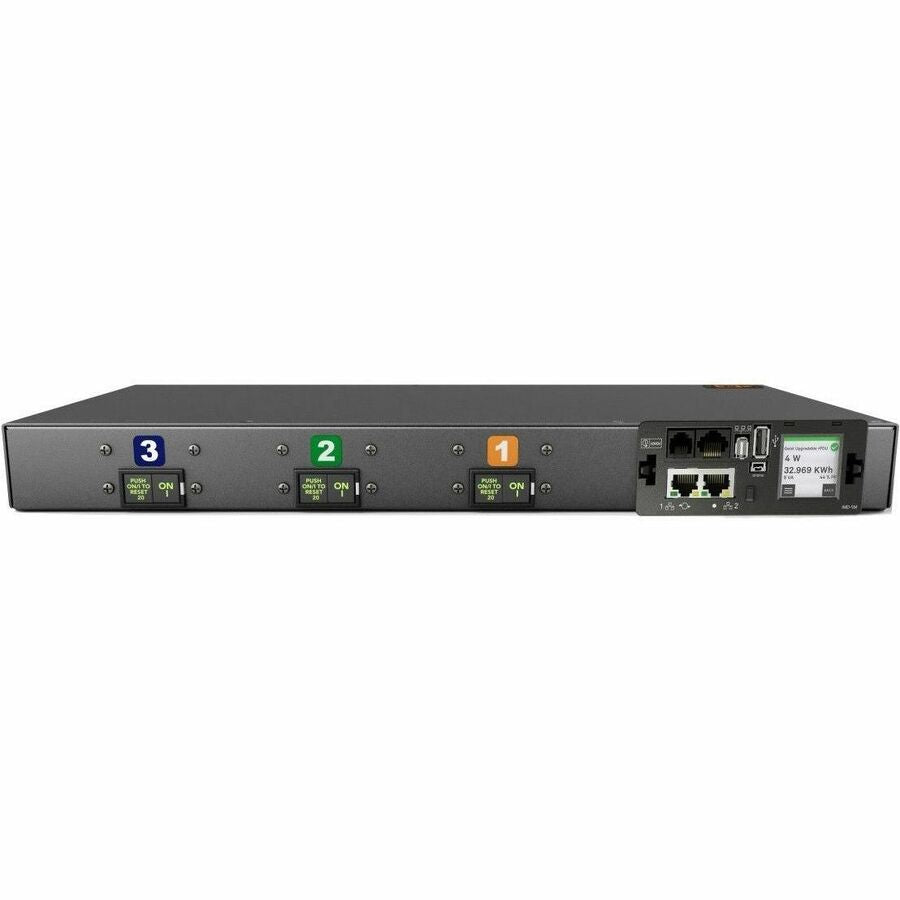

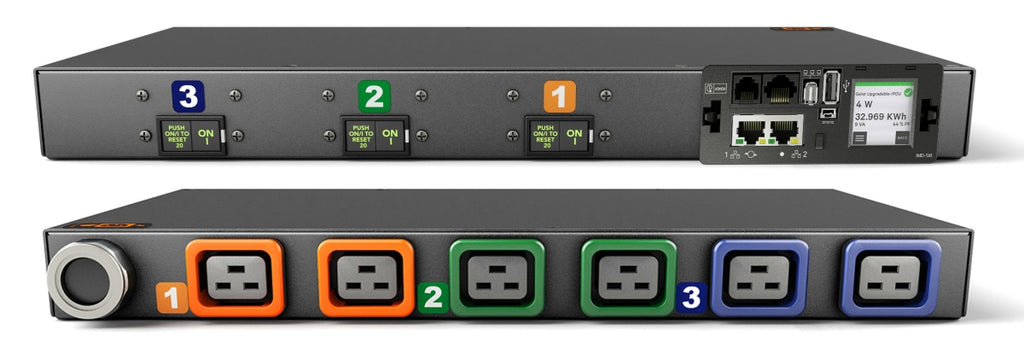

The Vertiv VP4N41A1 PowerIT™ Monitored rPDU delivers reliable, intelligent power distribution for critical IT infrastructure. It features unit-level monitoring with real-time input, phase, and breaker-level metrics, and supports daisy-chaining of up to 50 devices on a single IP. With 6 locking IEC C19 outlets, a 10ft power cord, and a rugged 1U horizontal chassis, it ensures high visibility, manageability, and uptime. Built with environmental sensor support, dual Ethernet ports, and ANSI-compliant metering accuracy, this rPDU is ideal for modern data center needs.
| Specification | Details |
|---|---|
| Model Number | VP4N41A1 |
| Form Factor | Horizontal, 1U |
| Input Voltage | 208V Delta |
| Current Rating | 35A, 3-Phase |
| Power Capacity | 10.0kW |
| Plug Type | 3P+E CA Twistlock |
| Receptacle Type / Quantity | Locking IEC C19 / 6 |
| Receptacle Voltage | 208V |
| Power Cord Length | 10 ft (3m) |
| Monitoring Levels | Unit, Phase, Breaker (kWh, A, V, PF, etc.) |
| Display | Auto-oriented LCD Touchscreen |
| Environmental Monitoring | Optional remote sensors (up to 16) |
| Network Connectivity | Dual Gigabit Ethernet |
| Supported Protocols | SNMP, HTTPS, RADIUS, Modbus TCP, etc. |
| Chassis Color / Finish | Black Powder Coat |
| Operating Temp. Max | 60°C (140°F) |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-Year (with registration) |
| Country of Origin | USA, TAA & BAA COTS Compliant |
| Dimensions (HxWxD) | 1.72in x 17in x 8.5in |
| Weight (Shipped) | 12 lbs (5.44 kg) |
