Description

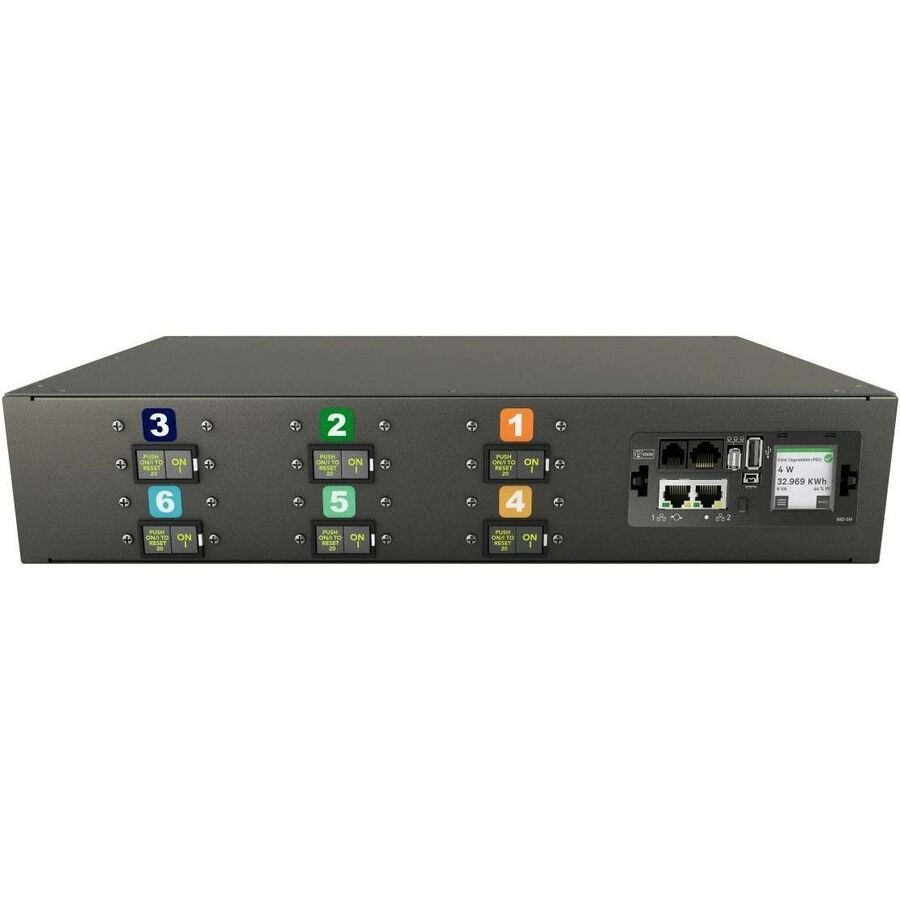

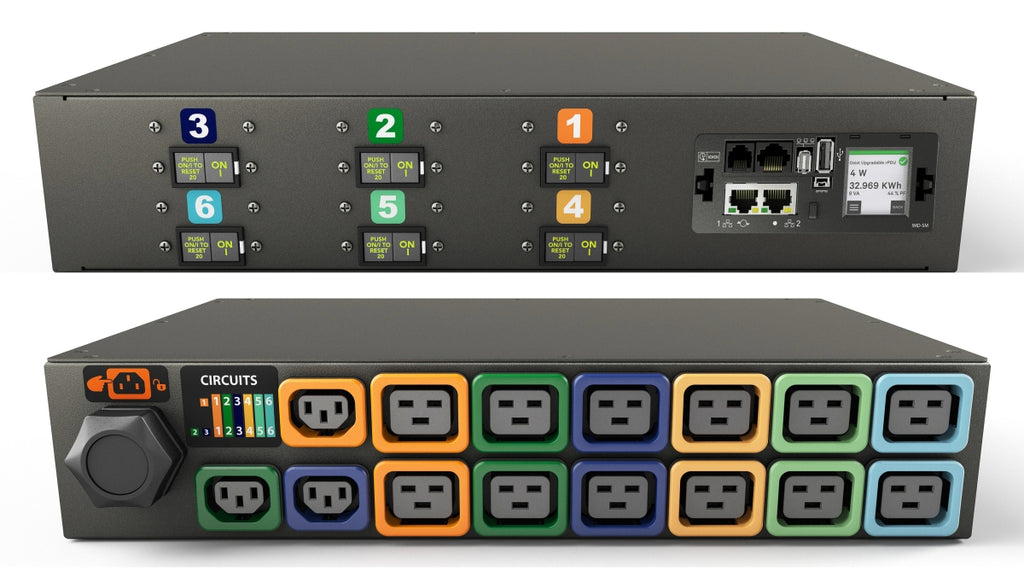

The Vertiv VP4N62A1 PowerIT™ rPDU provides reliable, monitored power distribution for high-density IT environments. This 60A, 208V DELTA, 17.2kW unit features unit-level power monitoring and environmental sensing capabilities. Designed for horizontal rackmount applications, it includes 3 locking IEC C13 and 12 locking IEC C19 outlets, a 10ft power cord with a watertight IP67 plug, and advanced daisy-chain networking for up to 50 devices. The hot-swappable controller allows upgrades without downtime, ensuring scalability for evolving IT needs.
| Specification | Details |
|---|---|
| Part Number | VP4N62A1 |
| Mounting | 19” Horizontal Rackmount (483mm) |
| Input Voltage | 200–240V DELTA |
| Input Current | 60A, 3-Phase DELTA |
| Power Capacity | 17.2kW (208V) |
| Plug Type | IEC60309 3P+E (IP67 Rated) |
| Cord Length | 10 ft / 3m |
| Receptacles | (3) Locking IEC C13, (12) Locking IEC C19 |
| Monitoring | Unit, Phase, Circuit-Level (Input/Breaker) |
| Environmental Monitoring | Optional via remote sensors |
| Display | Local High-Visibility Touchscreen LCD |
| Daisy-Chaining | Up to 50 rPDUs per IP with RSTP support |
| Breaker Configuration | (6) 20A Double Pole Magnetic Breakers |
| Network Protocols | SNMP, HTTPS, SSH, Modbus TCP, RADIUS, TACACS+, etc. |
| USB & Serial Connectivity | Yes (USB, RS232 via RJ45) |
| Data Access | JSON API, CSV, Syslog |
| Compliance | UL 62368-1, FCC Class A, RoHS, TAA, BAA |
| Operating Temperature | Up to 60°C / 140°F |
| Construction | Steel, Black Powder Coat Finish |
| Dimensions (HxWxD) | 3.4 in x 17 in x 12 in |
| Weight | 29 lbs (13.15 kg) |
| Warranty | 5-year limited (with registration), 3-year standard |
