Description

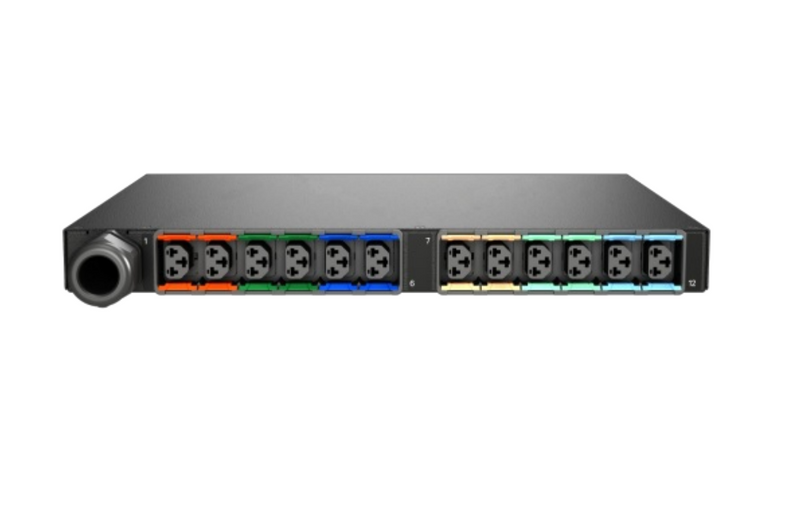

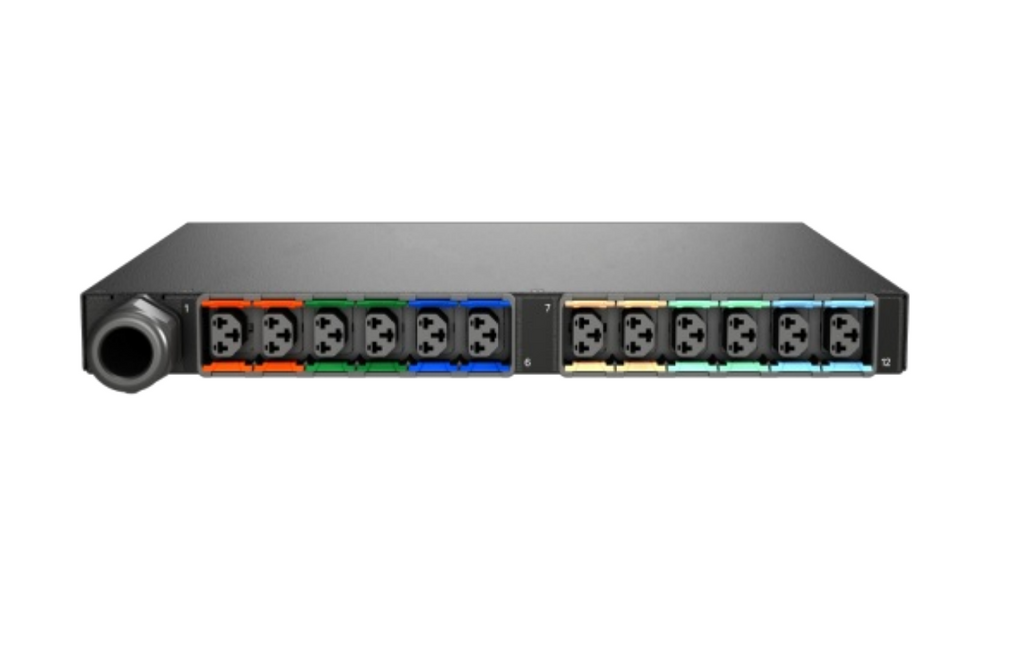

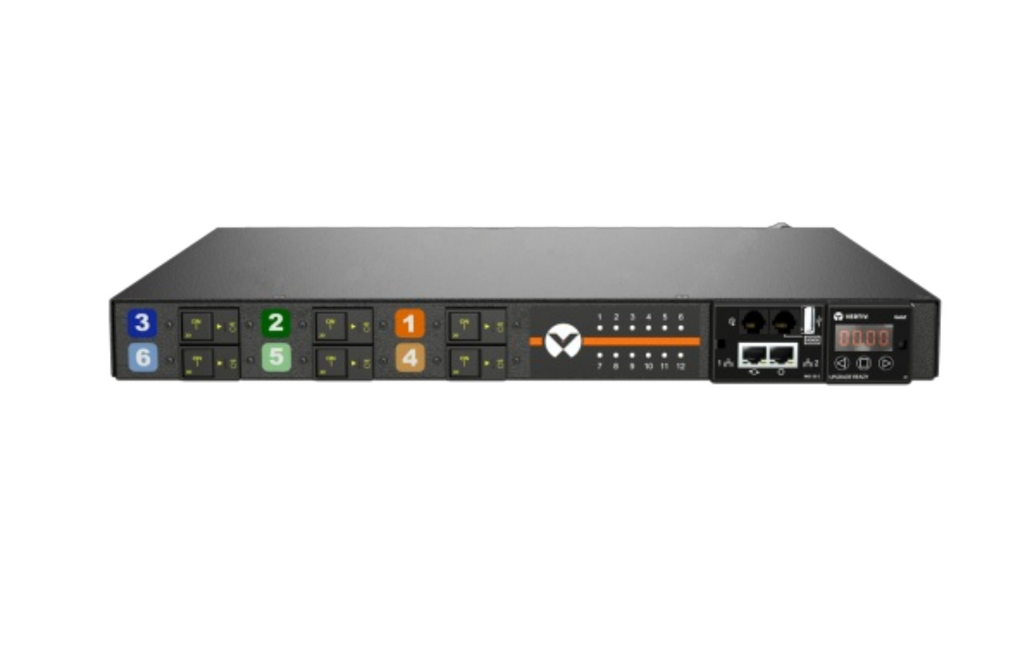

The Vertiv Geist rPDU MNR3E1R6-12CF13-3PS56B0H10-S delivers robust, reliable power distribution with advanced outlet-level monitoring. Designed for critical IT environments, this 3-phase rack-mountable PDU features 12 combination C13/C19 outlets and a 30A IEC 60309 plug. With built-in environmental monitoring capabilities and remote access via SNMP, HTTP/HTTPS, SSH, and more, it helps maximize uptime and improve power efficiency. The unit supports daisy-chaining of up to 50 devices and includes overcurrent protection and fault-tolerant network redundancy with RSTP.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Model | MNR3E1R6-12CF13-3PS56B0H10-S |
| Part Number | NR30210 |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug Type | IEC 60309 (3P+N+E) 30A |
| Input Voltage | 230V AC (Range: 200–240V AC / 346–415V AC) |
| Input Frequency | 60 Hz |
| Input Current | 30A |
| Output Voltage | 240V AC |
| Output Power | 17.20 kW |
| Outlets | 12 x Combination C13/C19 |
| Cord Length | 10 ft |
| Mounting | Horizontal, Rack-mountable |
| Monitoring & Management | SNMP (v1/v2c/v3), HTTPS, SSH, RADIUS, Syslog, Modbus TCP, JSON API, CSV Datalog, RS232 |
| Network Ports | 1 x RJ-45 |
| Environmental Monitoring | Supported (optional sensors) |
| Protection | Overcurrent, Single Pole |
| Operating Temperature | Up to 140°F (60°C) |
| Certifications | UL, c-UL Listed 62368-1, FCC Part 15 Class A |
| Compliance | TAA Compliant, RoHS |
| Color | Black Powder Coat |
| Warranty | 5-Year (if registered within 120 days, else 3-Year) |
| Shipping Weight | 1 lb |
| Country of Origin | United States |
