Description

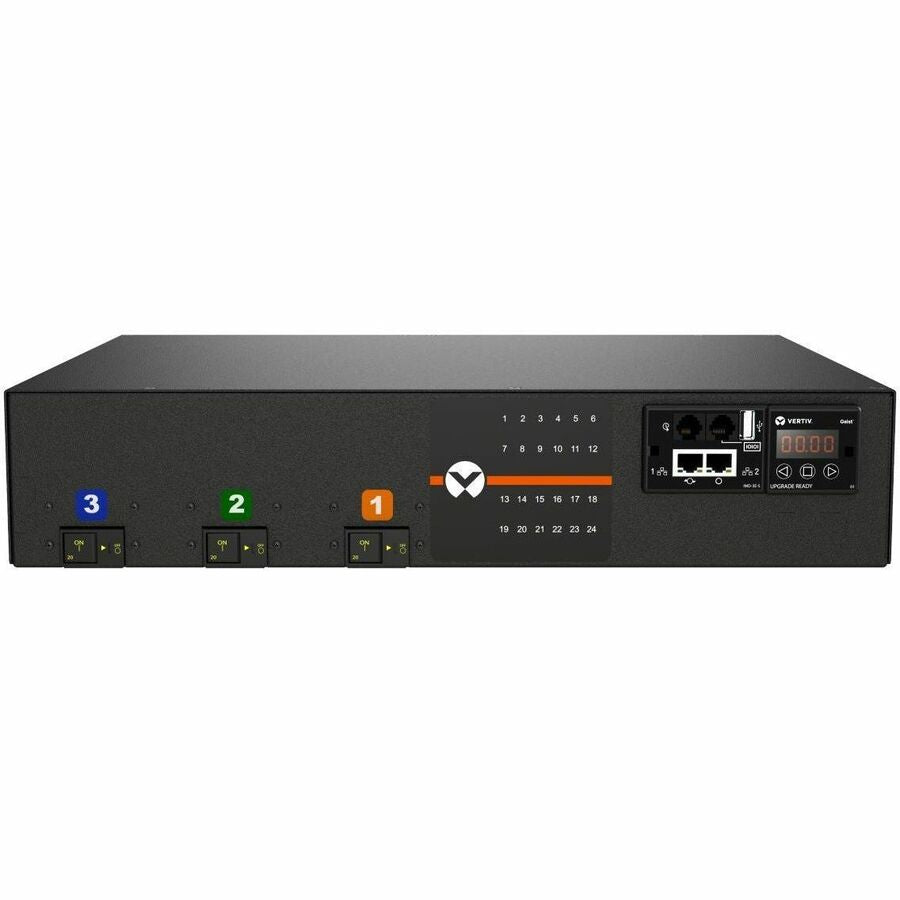

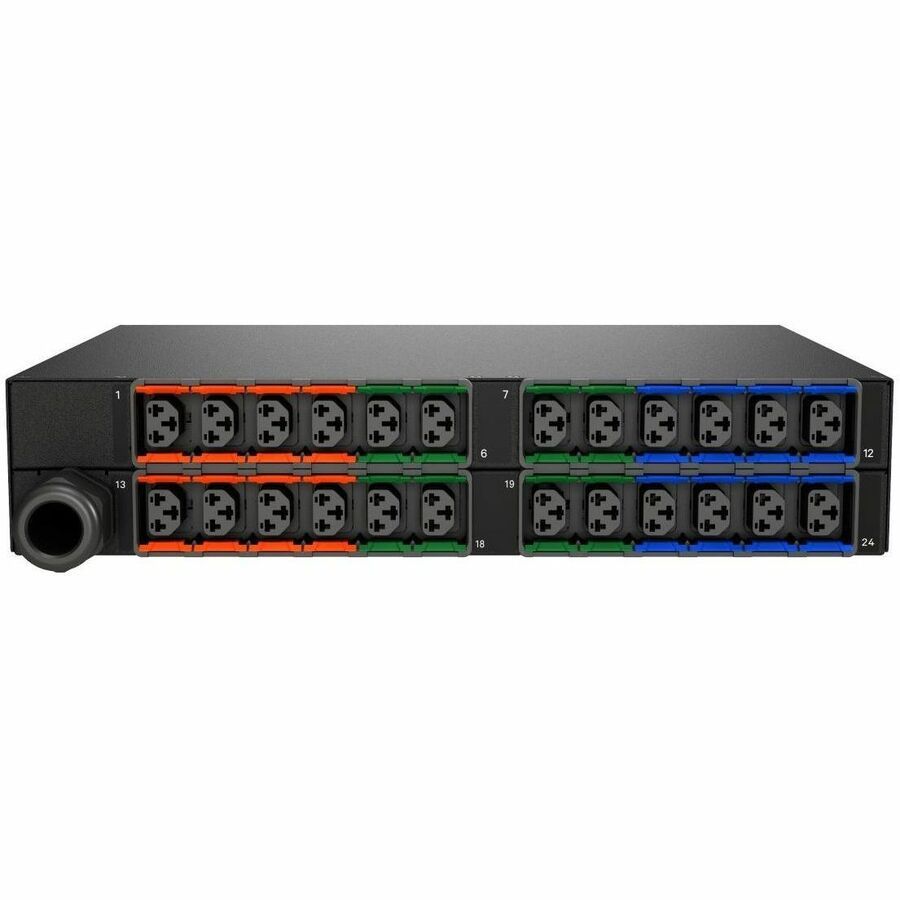

The Vertiv Geist rPDU MNR3EDR6-24CF18-3TL15A0H10-S is a monitored 3-phase rack power distribution unit designed to provide reliable power to critical IT equipment. It features 24 combination C13/C19 outlets, NEMA L15-30P input, and supports 230V AC operation with a 30A current rating. The unit enables comprehensive outlet-level monitoring through remote access and includes environmental monitoring capability with optional sensors. With robust overcurrent protection and a daisy-chaining feature supporting up to 50 devices, this unit ensures uptime and power transparency in modern data center environments.
Perfect for high-density applications, the rPDU is TAA compliant, RoHS certified, and comes with a 5-year limited warranty (when registered within 120 days). It ships with a 10-foot power cord and supports horizontal rack and recess mounting in 2U rack space.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Series / Model | rPDU / MNR3EDR6-24CF18-3TL15A0H10-S |
| Part Number | NR30218 |
| Product Type | Monitored Rack PDU |
| Plug Type | NEMA L15-30P |
| Input Voltage Range | 200–240 V AC |
| Output Voltage | 208 V AC |
| Input Current | 30A |
| Power Rating | 8600 W |
| Frequency | 60 Hz |
| Receptacles | 24 x Combination C13/C19 |
| Protection | Overcurrent Protection, Double Pole |
| Mounting Orientation | Horizontal |
| Rack Height | 2U |
| Cord Length | 10 ft |
| Network Port | Yes (RJ-45) |
| Mount Type | Rack-mountable, Recess-mountable |
| Color | Black Powder Coat |
| Dimensions (HxWxD) | 3.4" x 17" x 12" |
| Max Operating Temp | 140°F (60°C) |
| Compliance | TAA Compliant, UL, c-UL, FCC Part 15 Class A |
| Environmental Standards | RoHS |
| Warranty | 5-Year (if registered within 120 days) |
| Country of Origin | United States |
| Management Protocols | DHCP, HTTP(S), SNMP, SSH, Syslog, Modbus TCP, etc. |
| Package Includes | rPDU, 19in Recess Mount |
