Description

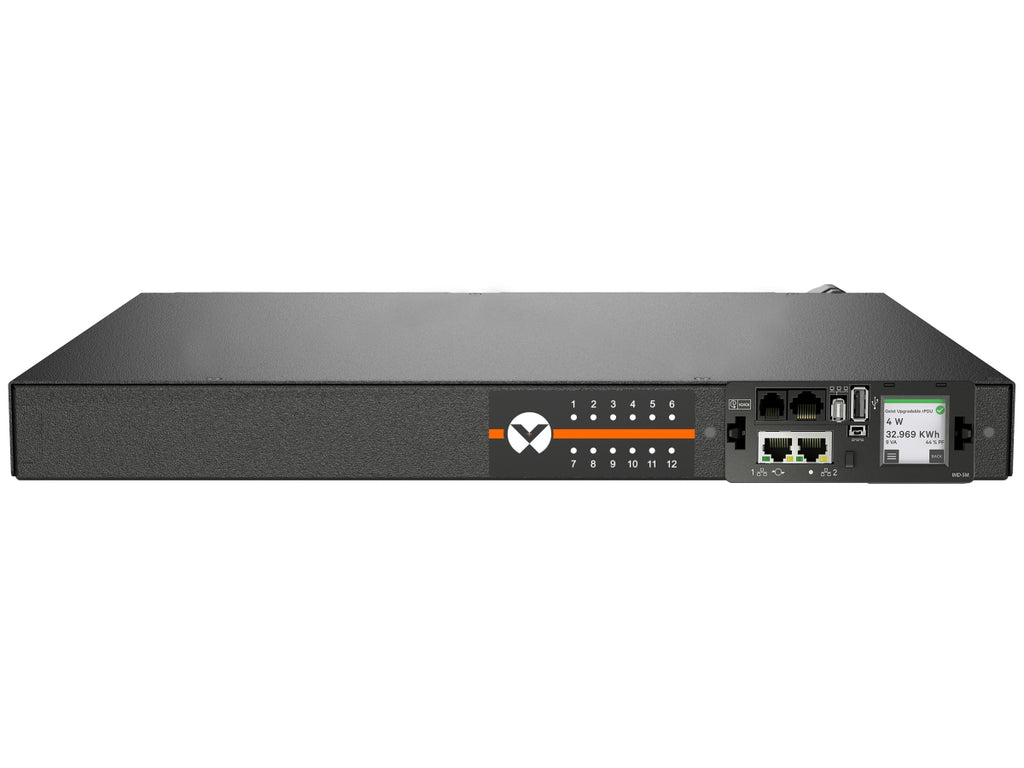

The Vertiv VP6N11A1 PowerIT rPDU delivers reliable and intelligent power distribution for critical IT environments. This horizontal rackmount unit supports monitored outlet-level EC functionality for detailed visibility into energy usage per outlet. With 12 NEMA 5-15R receptacles, a 10-ft power cord, and advanced environmental and power monitoring capabilities, this 15A 120V rPDU ensures maximum uptime and efficient power management. Built with fault-tolerant networking and daisy-chaining support, it is ideal for scalable deployments. Includes LCD touchscreen, remote access, and TAA compliance.
| Feature | Details |
|---|---|
| Model Number | VP6N11A1 |
| Mounting Configuration | 19in Horizontal Rackmount (483mm) |
| Power Capacity | 15A, 120V, 1.4kW |
| Receptacles | 12 × NEMA 5-15R |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft / 3 m |
| Monitoring Type | Monitored - Outlet Level EC |
| Display | Local LCD Touchscreen, Auto-Oriented |
| Network Protocols | SNMP, HTTP/S, SSH, Modbus TCP, Syslog, etc. |
| Ethernet Ports | Dual 10/100/1000 Mbps, Daisy-Chain Support |
| Remote Sensor Ports | 1 × RJ (Supports up to 16 sensors) |
| Operating Temp | Max 60°C / 140°F |
| Chassis Color | Black Powder Coat |
| Dimensions (HxWxD) | 1.72 × 17 × 12 in (44 × 432 × 305 mm) |
| Weight | 10 lbs / 4.54 kg |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5 Years (if registered in 120 days) |
| Country of Origin | USA – TAA and BAA Compliant |
