Description

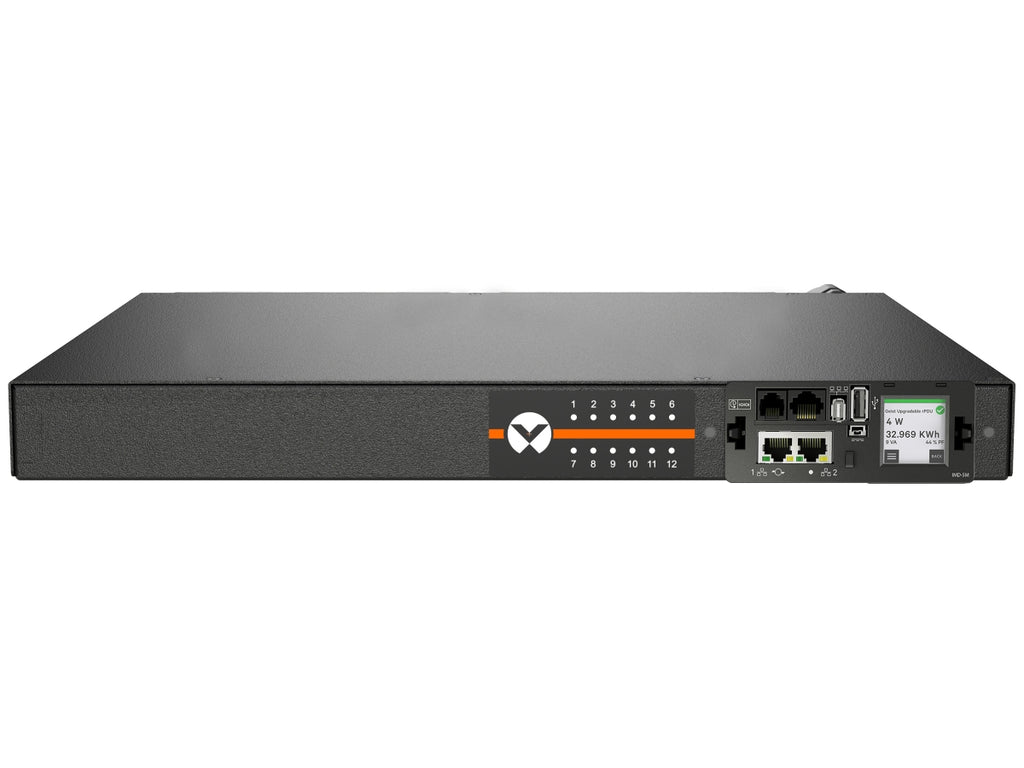

The Vertiv™ VP6N21A1 is a horizontal Monitored rPDU offering outlet-level EC monitoring for detailed power usage insight. Designed for 120V, 20A applications, this 19-inch rackmount unit delivers 1.9kW of reliable power across (12) NEMA 5-20R receptacles with a 10ft cord and L5-20P plug. It features environmental monitoring via optional sensors, daisy-chain Ethernet support, and a local high-visibility display. Built for scalability and uptime, it supports up to 50 devices on a single IP and meets ANSI and IEC power monitoring standards.
| Specification | Details |
|---|---|
| Part Number | VP6N21A1 |
| Form Factor | Horizontal (19in / 483mm Rackmount) |
| Power Rating | 20A, 120V, 1.9kW |

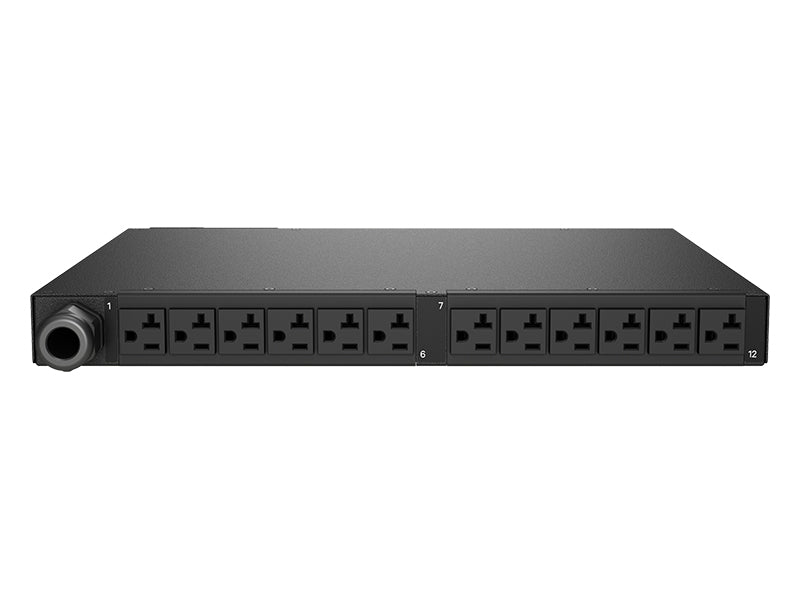

| Receptacles | (12) NEMA 5-20R |
| Input Plug Type | NEMA L5-20P Twistlock |
| Cord Length | 10ft (3m) |
| Monitoring | Outlet-Level EC Monitoring (kWh, W, VA, PF, V, A) |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet |
| Protocols Supported | SNMP (v1/v2c/v3), HTTP/S, DHCP, SSH, Modbus TCP, etc. |
| Sensor Ports | 1 RJ Connection (Supports up to 16 Sensors) |
| Display | Local high visibility LCD, auto-oriented |
| Chassis Color | Black Powder Coat |
| Mounting | Adjustable Brackets Included |
| Certifications | UL, c-UL, FCC Class A, RoHS Compliant |
| Warranty | 5 years (with registration within 120 days), otherwise 3 years |
| Operating Temperature | Up to 60°C / 140°F |
| Made In | USA (TAA & BAA COTS Compliant) |
| Dimensions (HxWxD) | 1.72in x 17in x 12in (44mm x 432mm x 305mm) |
| Weight | 10 lbs (4.54 kg) |
