Description

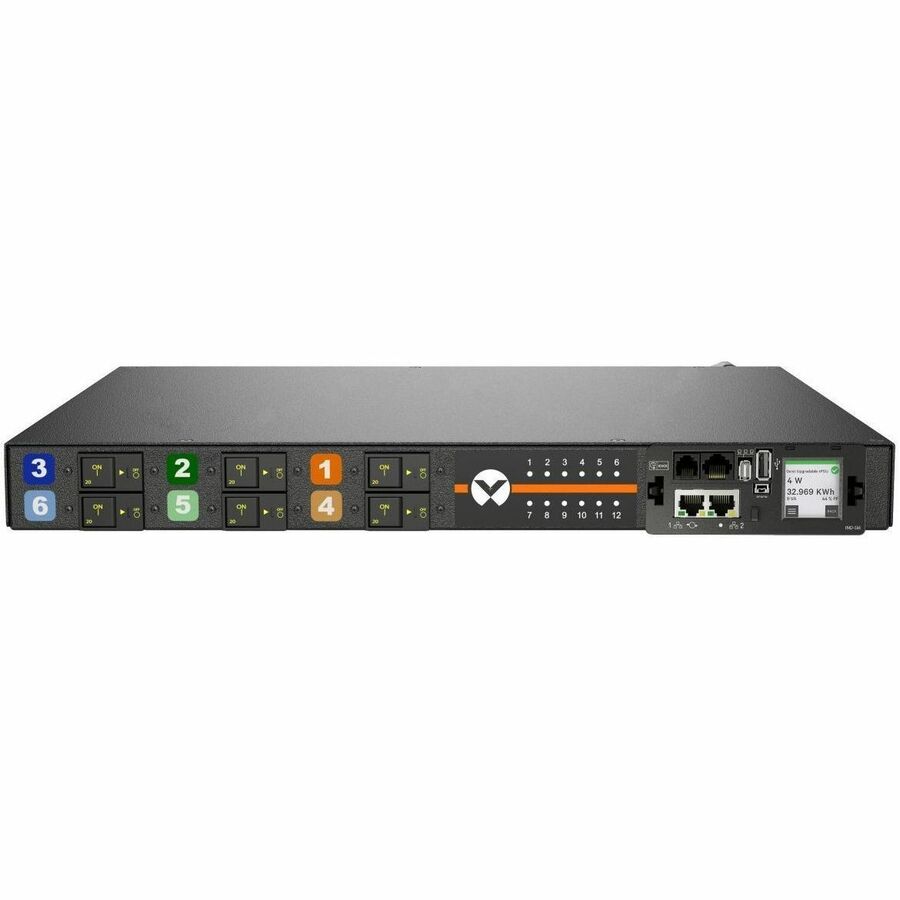

The Vertiv VP6N31A5 is a Monitored Outlet-Level EC Rack PDU designed for advanced power distribution and precise energy tracking in enterprise IT environments. Operating at 30A and 240/415V WYE with a total capacity of 17.2kW, this horizontal 19-inch unit features 12 combination C13/C19 outlets. Equipped with input and outlet-level power monitoring, daisy-chaining, and environmental sensor support, it ensures uptime and visibility across critical infrastructure. The unit includes a local display, IP44 splash-proof plug, and supports industry-standard network protocols for seamless integration.
| Specification | Details |
|---|---|
| Model | VP6N31A5 |
| Mounting Orientation | Horizontal, 19in / 483mm |
| Input Voltage | 200-240/346-415V WYE |
| Input Current | 30A, 3-Phase |
| Power Capacity | 17.2kW |
| Plug Type | IEC60309 3P+N+E (IP44), 10ft / 3m cord |

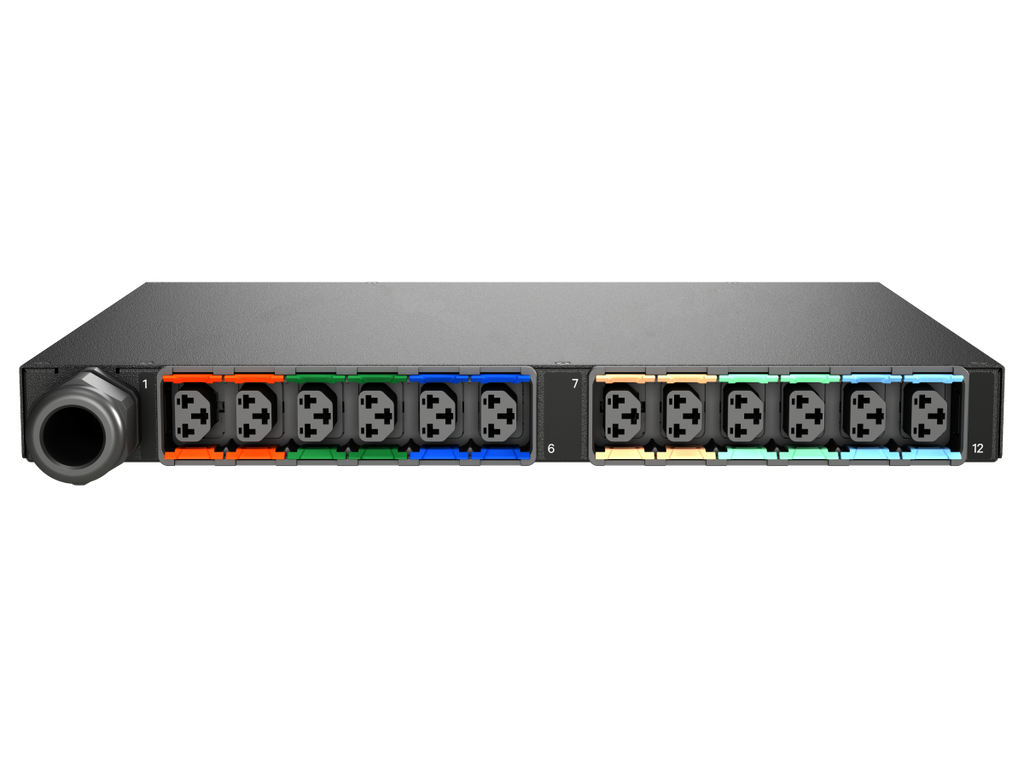

| Outlets | 12 x Combination C13/C19 |
| Outlet Groups | 6 circuits (2 outlets per breaker) |
| Breaker Protection | (6) 20A Single Pole Magnetic (10kAIC) |
| Monitoring | Input, Outlet, Circuit-Level (W, V, A, PF, kWh) |
| Environmental Monitoring | Yes, with optional sensors |
| Display | Local high-visibility LCD |
| Networking | Dual 10/100/1000 Mbps Ethernet, Daisy Chain |
| Protocols Supported | SNMP v1/v2c/v3, HTTP/HTTPS, SSH, Modbus TCP etc. |
| Chassis Color | Black Powder Coat |
| Build | Heavy-duty steel, adjustable mount brackets |
| Temperature Rating | Up to 60°C / 140°F |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Dimensions (H x W x D) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 18 lbs / 8.16 kg |
| Warranty | 5 years (with registration), 3 years standard |
| Country of Origin | USA, TAA and BAA COTS Compliant |
