Description

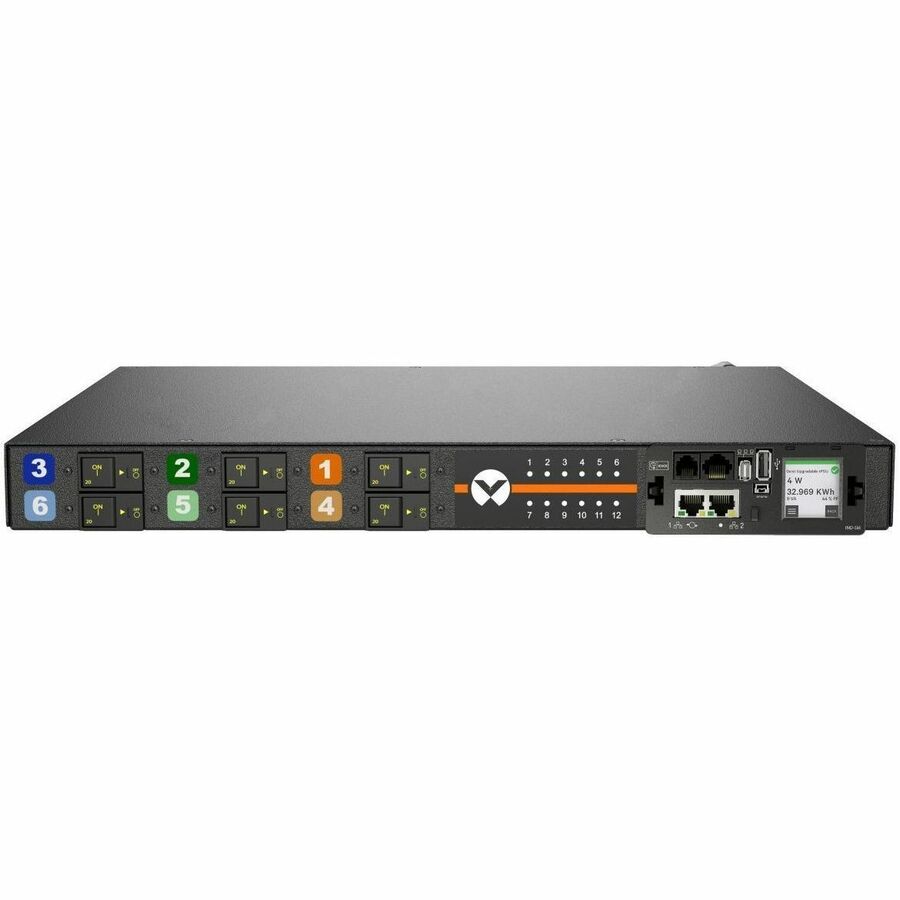

The Vertiv Geist VP6N31A4 is a horizontal rackmount Monitored Outlet Level EC rPDU delivering 30A, 240/415V WYE power with 17.2kW load capacity. Designed for data centers and mission-critical environments, this intelligent rPDU features input and outlet-level power monitoring, circuit-level current measurement, and optional environmental sensors for climate monitoring. The VP6N31A4 supports daisy chaining of up to 50 units, advanced remote access protocols, and is built with a rugged black powder-coated steel chassis for durability.
| Specification | Details |
|---|---|
| Part Number | VP6N31A4 |
| Power Rating | 30A, 240/415V WYE, 17.2kW |
| Form Factor | 19in / 483mm Horizontal Rackmount |
| Outlets | 12 x Combination C13/C19 |
| Plug Type | NEMA L22-30P |
| Power Cord Length | 10ft / 3m |
| Monitoring | Input & Outlet-Level (kWh, W, VA, PF, V, A), Circuit/Breaker Current |
| Display | Local LCD Touchscreen (Auto-Oriented) |
| Network | Dual Gigabit Ethernet, Daisy-Chain Capable |
| Supported Protocols | SNMP, SSH, HTTPS, Modbus TCP, RADIUS, TACACS+, Syslog, etc. |
| Sensors Support | 1 RJ Sensor Port (Supports up to 16 Sensors) |
| Circuit Protection | (6) x 16A Single Pole Magnetic Breakers |
| Operating Temp. | Up to 60°C (140°F) |
| Material & Color | Heavy Steel, Black Powder Coat |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-Year Limited (with registration), 3-Year Standard |
| Country of Origin | USA (TAA & BAA Compliant) |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 18 lbs (8.16 kg) |
