Description

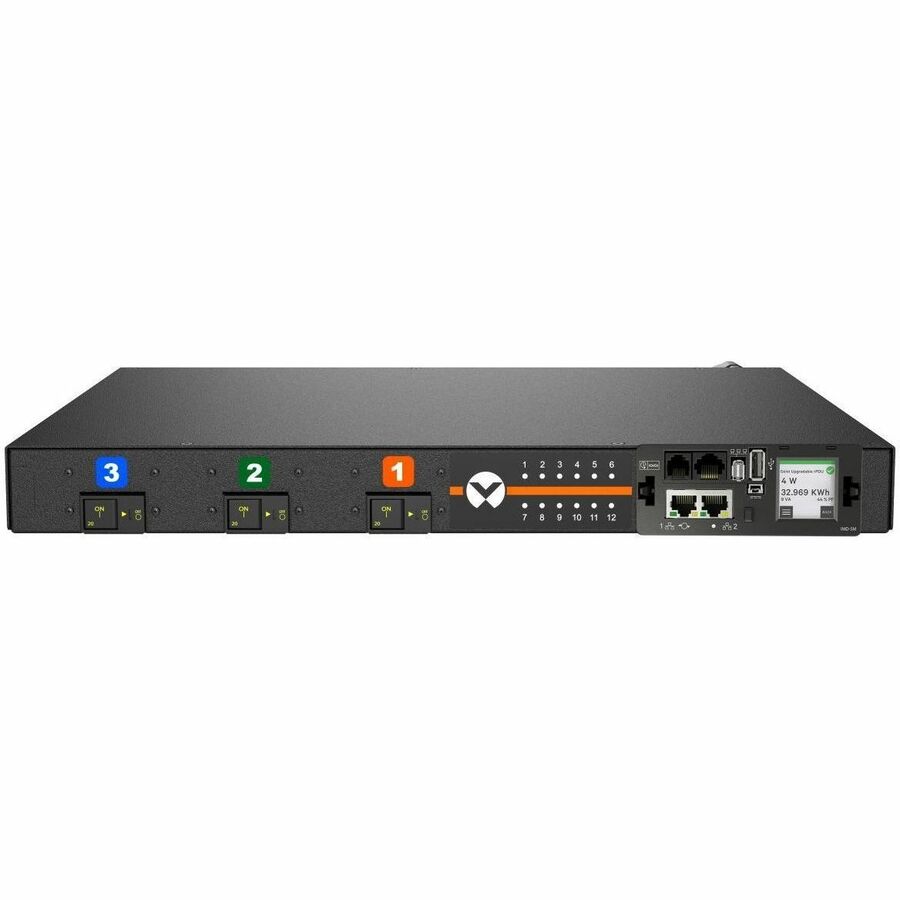

The Vertiv VP6N31A3 PowerIT™ Monitored rPDU delivers robust power distribution and advanced outlet-level monitoring to optimize energy usage in critical IT environments. Featuring 12 combination C13/C19 outlets, this 30A, 208V DELTA horizontal rackmount PDU provides 8.6kW of reliable power. Integrated environmental monitoring support, a hot-swappable monitoring unit, and high-visibility local display ensure visibility and uptime. Easily manage power metrics with support for SNMP, Modbus TCP, and JSON API, and daisy-chain up to 50 devices via Ethernet.
| Specification | Details |
|---|---|
| Model | VP6N31A3 |
| Form Factor | 19" Horizontal Rackmount |
| Input Voltage | 200-240V DELTA |
| Input Current | 30A, 3-Phase |
| Power Capacity | 8.6kW |
| Plug Type | NEMA L15-30P Twistlock |
| Receptacles | 12x Combination C13/C19 |
| Receptacle Voltage | 208V |
| Breakers | (3) 20A Double Pole Magnetic, 10kAIC |
| Circuit Monitoring | Yes (A) |
| Outlet Monitoring | Yes (kWh, W, VA, PF, V, A) |
| Display | LCD Auto-Oriented Touchscreen |
| Ethernet Ports | Dual 10/100/1000Mbps |
| Protocols Supported | SNMP, Modbus TCP, HTTP/HTTPS, SSH, Syslog, etc. |
| Environmental Monitoring | Optional Sensors (RJ Connection, up to 16) |
| Mounting | Adjustable Brackets Included |
| Build Material | Heavy Steel with Black Powder Coat |
| Operating Temperature | Up to 60°C / 140°F |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 18 lbs (8.16 kg) |
| Certifications | UL 62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 5-Year (if registered within 120 days) |
| Country of Origin | USA (TAA and BAA COTS Compliant) |
