Description

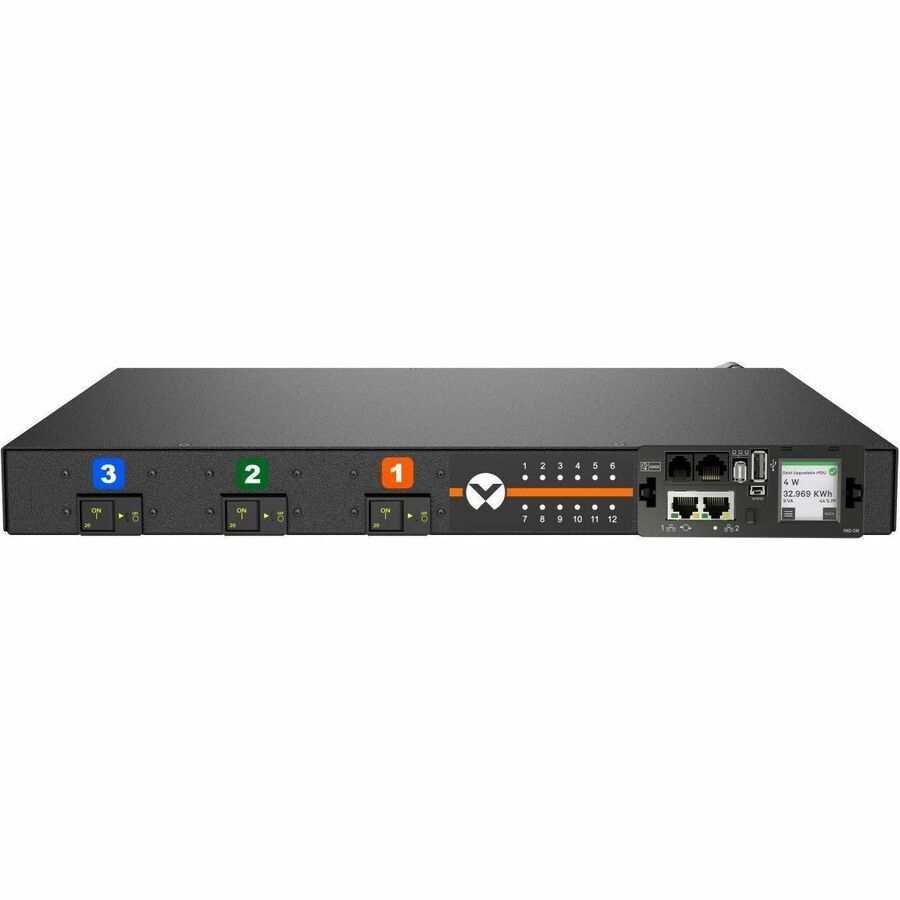

The Vertiv VP6N31A2 is a horizontal 19-inch monitored rPDU designed for critical IT applications, offering reliable 30A power distribution at 120/208V WYE. With 12 combination C13/C19 outlets and a 10-ft L21-30P twist-lock plug, it enables precise outlet-level power monitoring, circuit monitoring, and optional environmental monitoring. Daisy-chain up to 50 devices over a single IP address and gain real-time insights via a local touchscreen and remote network access. Backed by Vertiv’s robust 5-year warranty, the VP6N31A2 is ideal for scalable and resilient power management.
| Feature | Specification |
|---|---|
| Model Number | VP6N31A2 |
| Form Factor | 19" Horizontal Rackmount |
| Power Capacity | 30A, 120/208V WYE, 8.6kW |
| Input Plug Type | NEMA L21-30P Twist-lock |

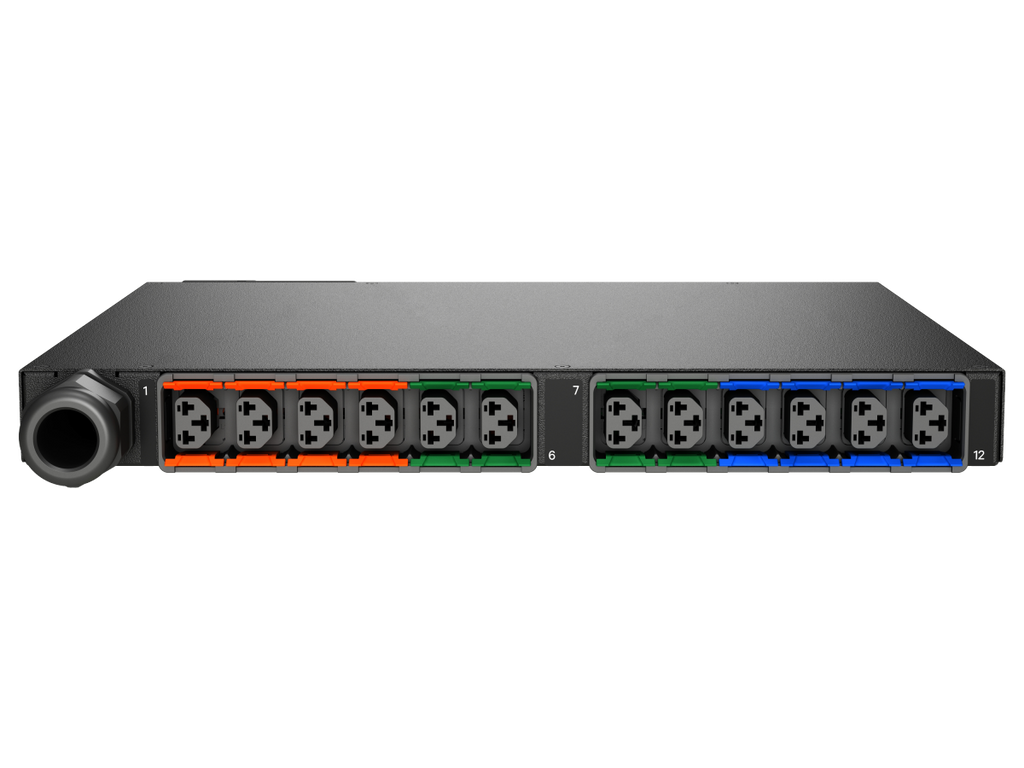

| Receptacles | 12 x Combination C13/C19 |
| Monitoring | Outlet-level, circuit/breaker, input-level |
| Environmental Monitoring | Optional sensors via RJ port (supports up to 16) |
| Networking | Dual Ethernet, DHCP, SNMP, HTTPS, SSH, Modbus TCP |
| Data Access | Local display, CSV, JSON API, Syslog |
| Daisy-Chaining | Up to 50 units, RSTP supported |
| Breaker Protection | (3) 20A double-pole magnetic breakers |
| Display | Auto-orienting LCD touchscreen |
| Chassis Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Finish | Black powder coat, steel chassis |
| Weight | 18 lbs (8.16 kg) |
| Operating Temperature | Up to 60°C / 140°F |
| Certifications | UL 62368-1, RoHS, FCC Class A |
| Warranty | 5-year limited (if registered), otherwise 3 years |
| Country of Origin | USA, TAA & BAA COTS compliant |
