Description

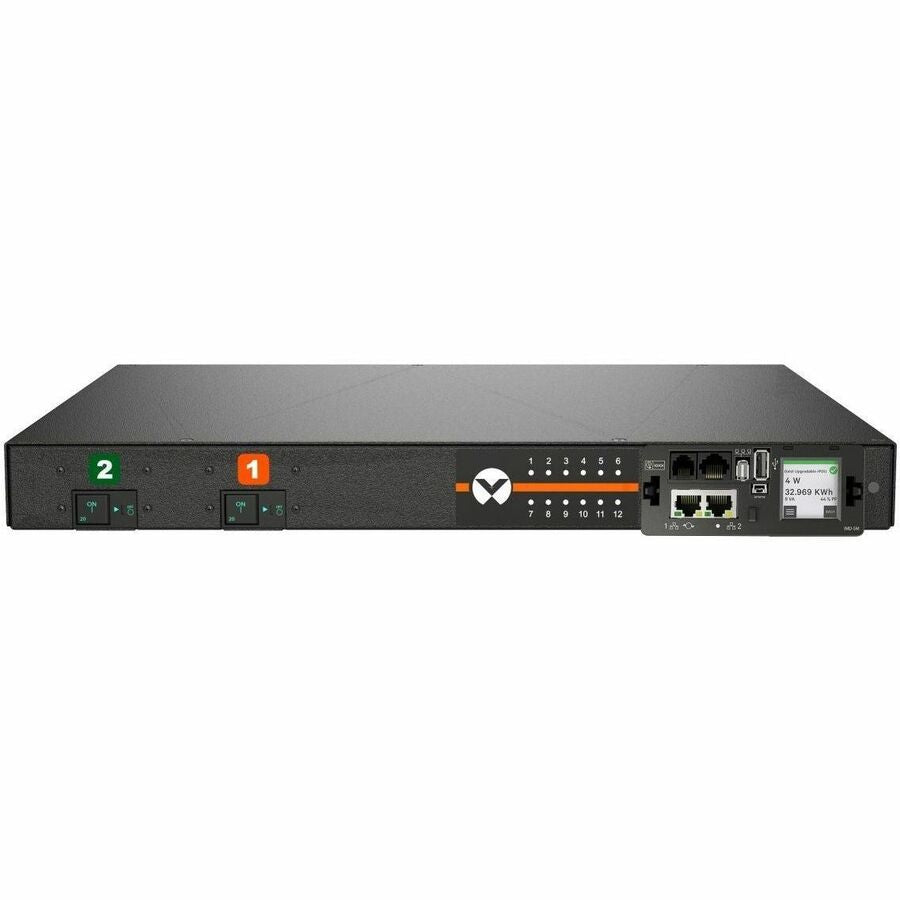

The Vertiv VP6N31A1 PowerIT™ rPDU delivers intelligent outlet-level power monitoring, enabling real-time visibility into energy usage across your IT infrastructure. With a robust 30A, 208V input and a 4.9kW capacity, this horizontal 19-inch unit includes 12 combination C13/C19 outlets, a 10-ft L6-30P power cord, and hot-swappable monitoring. Designed for reliability and uptime, it also features optional environmental sensors, daisy-chain Ethernet, and an auto-orienting local display to simplify management and improve resilience.
| Specification | Details |
|---|---|
| Part Number | VP6N31A1 |
| Form Factor | 19” / 483mm Horizontal Rackmount |
| Input Voltage / Frequency | 208V / 50–60Hz |
| Input Plug Type | NEMA L6-30P Twistlock |
| Max Input Current | 30A |
| Load Capacity | 4.9kW |

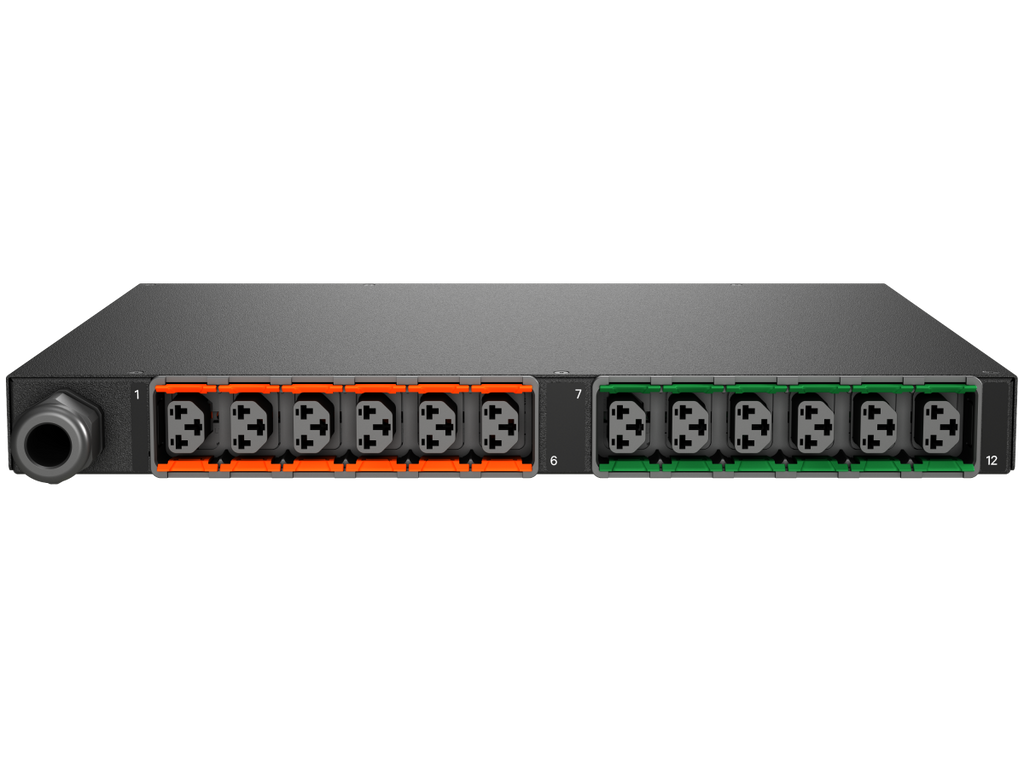

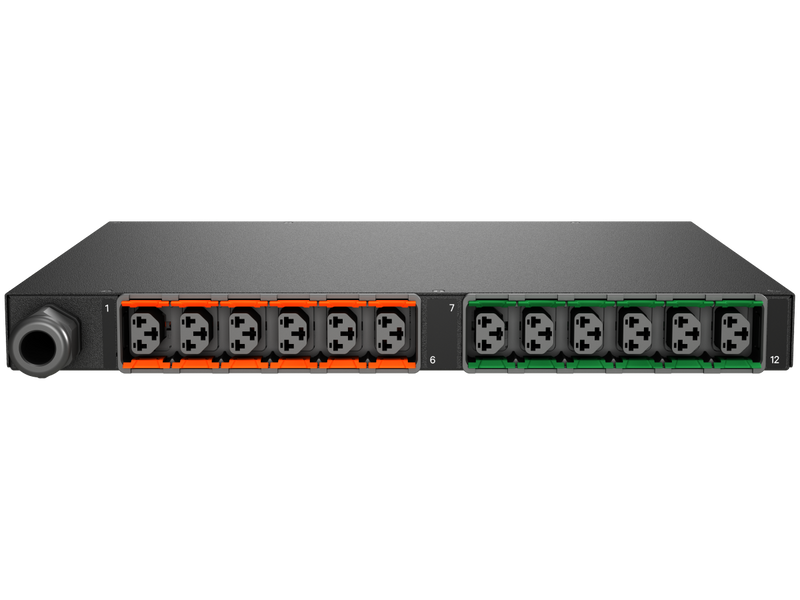

| Receptacles | (12) Combination C13/C19 |
| Breakers | (2) 20A Double Pole Magnetic Breakers |
| Monitoring | Input, Outlet, Circuit/Breaker, Environmental |
| Display | Local high-visibility LCD (Auto-oriented) |
| Network Connectivity | Dual Ethernet (10/100/1000 Mbps) |
| Protocols Supported | SNMP (v1/v2c/v3), HTTPS, SSH, RADIUS, Modbus TCP |
| Sensor Support | 1 RJ port (up to 16 sensors) |
| Chassis Color | Black Powder Coat |
| Material | Heavy Steel |
| Mounting | Adjustable Mount Brackets |
| Cable Length | 10 ft / 3 m |
| Dimensions (H x W x D) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight (Shipped) | 14 lbs (6.35 kg) |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-Year (with registration) / 3-Year Standard |
| Country of Origin | USA, TAA and BAA COTS Compliant |
