Description

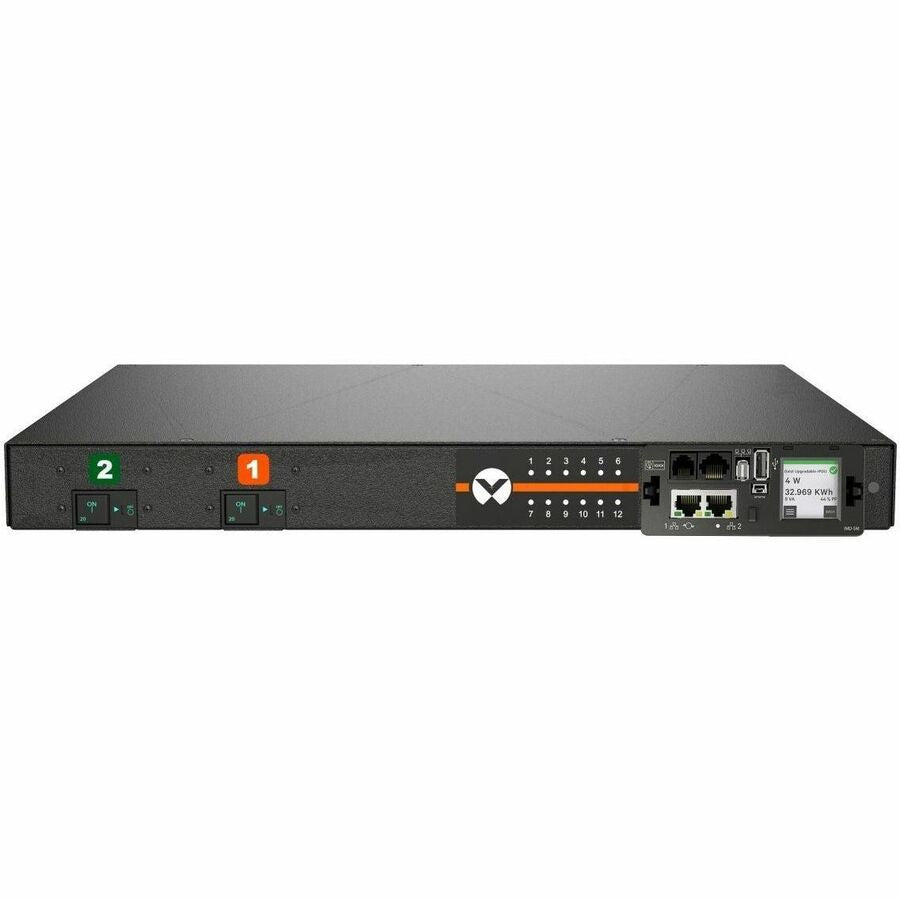

The Vertiv VP6N31A0 is a high-performance, horizontal rack PDU that delivers reliable 30A, 120V power distribution across 12 NEMA 5-20R outlets. Featuring outlet-level EC monitoring, local LCD display, and network connectivity, this monitored rPDU ensures full visibility into energy usage for optimizing uptime. Designed for scalable data centers, it supports environmental sensors, dual Ethernet, USB, Modbus TCP, SNMP, and more — all housed in a durable black steel chassis. Ideal for fault-tolerant IT environments.
| Specification | Details |
|---|---|
| Model Number | VP6N31A0 |
| Form Factor | Horizontal, 19in / 483mm |
| Mounting | Adjustable brackets, rackmount |
| Power Capacity | 2.8kW |
| Input Voltage | 100–120V |
| Input Current | 30A |
| Input Plug Type | NEMA L5-30P Twistlock |

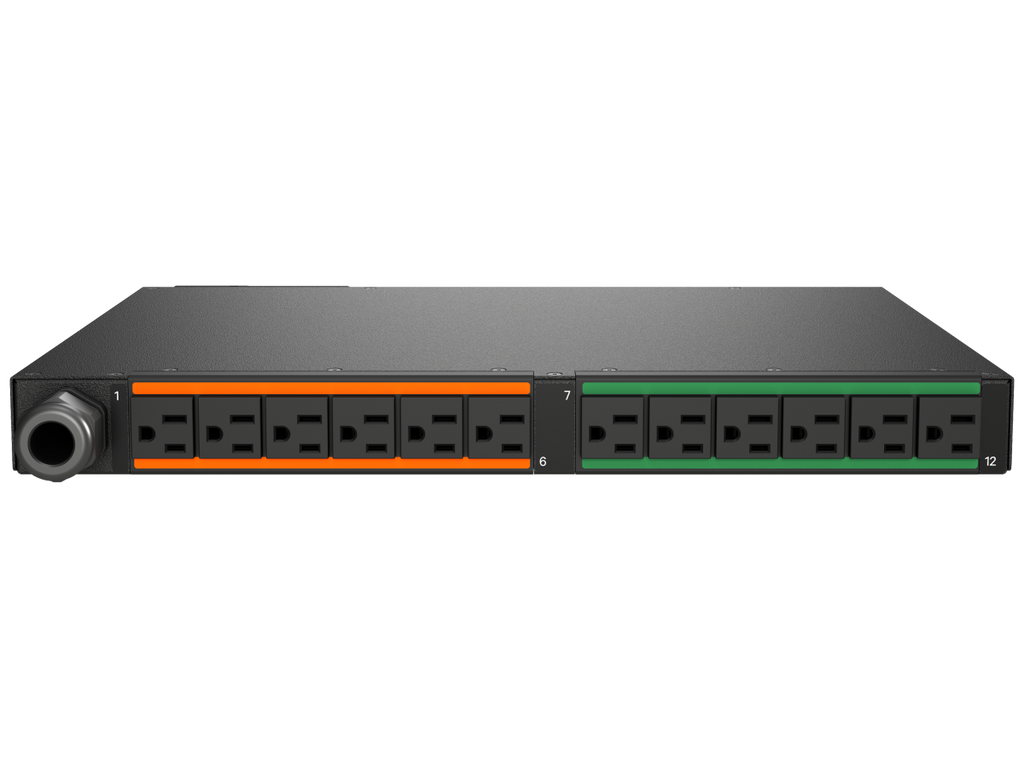

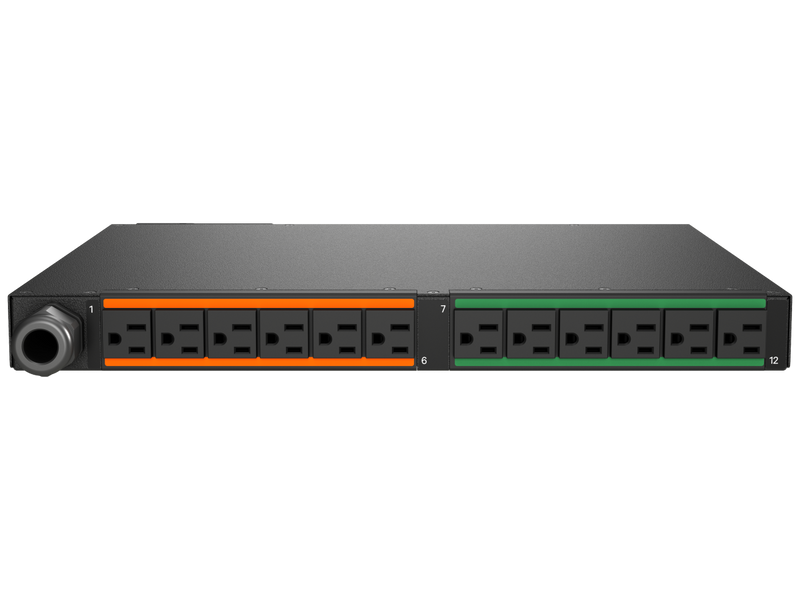

| Outlet Receptacles | (12) NEMA 5-20R |
| Breakers | (2) 20A Single Pole Magnetic (10kAIC) |
| Monitoring Type | Outlet Level EC Monitoring |
| Power Monitoring | Input & Outlet (kWh, W, VA, PF, V, A) |
| Circuit Monitoring | Breaker-level (2% accuracy) |
| Display | High-visibility LCD, auto-oriented |
| Network Ports | Dual 10/100/1000 Mbps Ethernet |
| Protocols Supported | SNMP (v1/v2c/v3), Modbus TCP, HTTPS, etc. |
| USB Support / Serial Connection | Yes / RS232 via RJ45 |
| Environmental Monitoring | Optional (supports up to 16 sensors) |
| Chassis Material & Color | Heavy steel, black powder coat |
| Power Cord Length | 10ft / 3m |
| Operating Temperature | Max 60°C / 140°F |
| Certifications | UL, c-UL 62368-1, FCC Part 15A, RoHS |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
| Dimensions (HxWxD) | 1.72in x 17in x 12in (44 x 432 x 305mm) |
| Shipped Weight | 12 lbs / 5.44 kg |
| Warranty | 5 years with registration, 3 years otherwise |
