Description

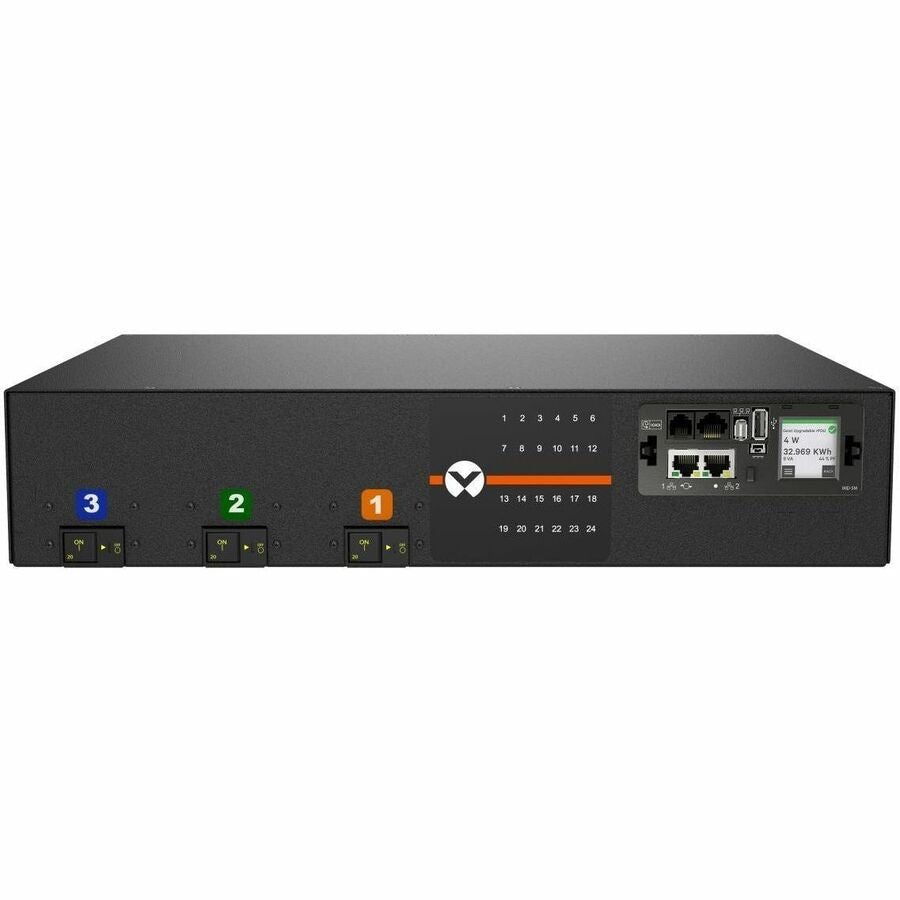

The Vertiv VP6N32A3 PowerIT Rack PDU provides intelligent outlet-level power monitoring and environmental sensing capabilities in a robust 2U horizontal form. With a 30A 208V Delta input and 8.6kW capacity, this rPDU features 24 combination C13/C19 outlets, a 10-ft power cord with NEMA L15-30P plug, and is designed for high-availability IT environments. Daisy-chain up to 50 units on one IP for simplified deployment. Built for critical infrastructure with ANSI/IEC-compliant metering, touchscreen LCD, and dual Ethernet ports.
| Feature | Details |
|---|---|
| Model | VP6N32A3 |
| Form Factor | 2U Horizontal (19” rackmount) |
| Input Voltage / Phases | 208V, 3-Phase Delta |
| Input Current | 30A |
| Load Capacity | 8.6kW |
| Input Plug | NEMA L15-30P, 10ft (3m) cord |

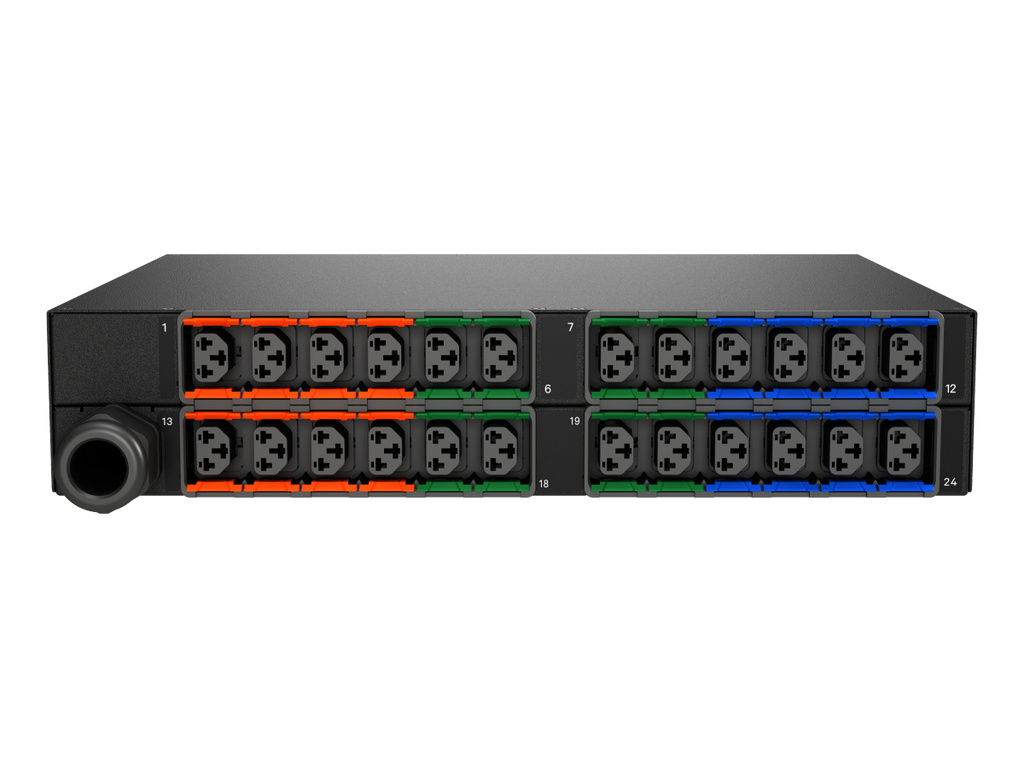

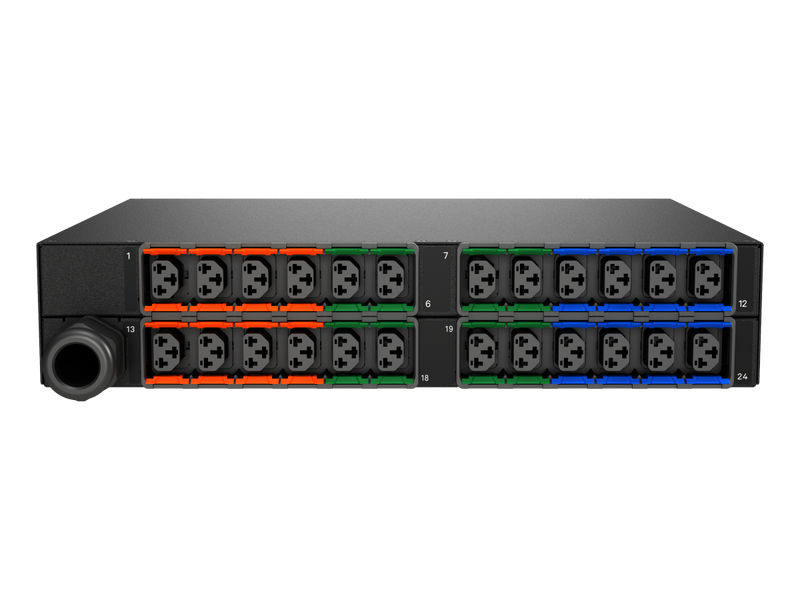

| Receptacles | 24 × Combination C13/C19 |
| Receptacle Voltage | 208V |
| Breaker Configuration | (3) 20A Double Pole Magnetic Breakers |
| Monitoring Level | Monitored – Outlet Level (kWh, W, VA, PF, V, A) |
| Environmental Monitoring | Yes – via optional sensors (up to 16) |
| Network Connectivity | Dual Ethernet (10/100/1000 Mbps) |
| Protocols Supported | SNMP (v1/v2c/v3), Modbus TCP, RADIUS, HTTP(S), SSH, etc. |
| Display | Auto-orienting LCD touchscreen |
| Indicators | 24 LED indicators |
| Data Access | JSON API, CSV Datalog |
| USB Support | Yes |
| Chassis Color | Black Powder Coat |
| Dimensions (HxWxD) | 3.39in x 17in x 12in (87mm x 432mm x 305mm) |
| Weight | 20 lbs (9.07 kg) |
| Operating Temp. | Up to 60°C (140°F) |
| Certifications | UL 62368-1, FCC Class A, RoHS Compliant |
| Warranty | 5-Year Limited (with registration) |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
