Description

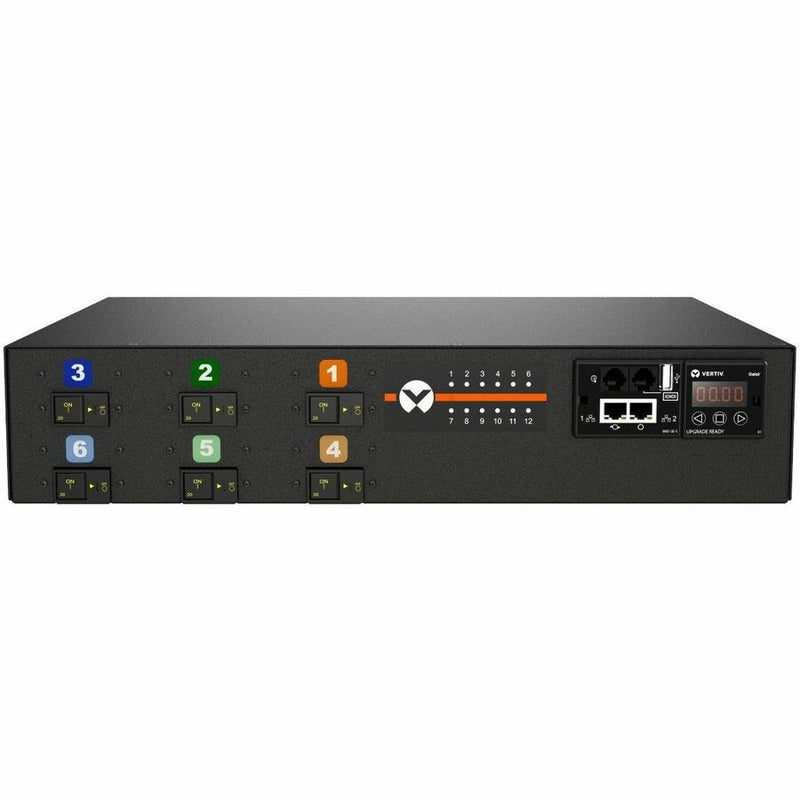

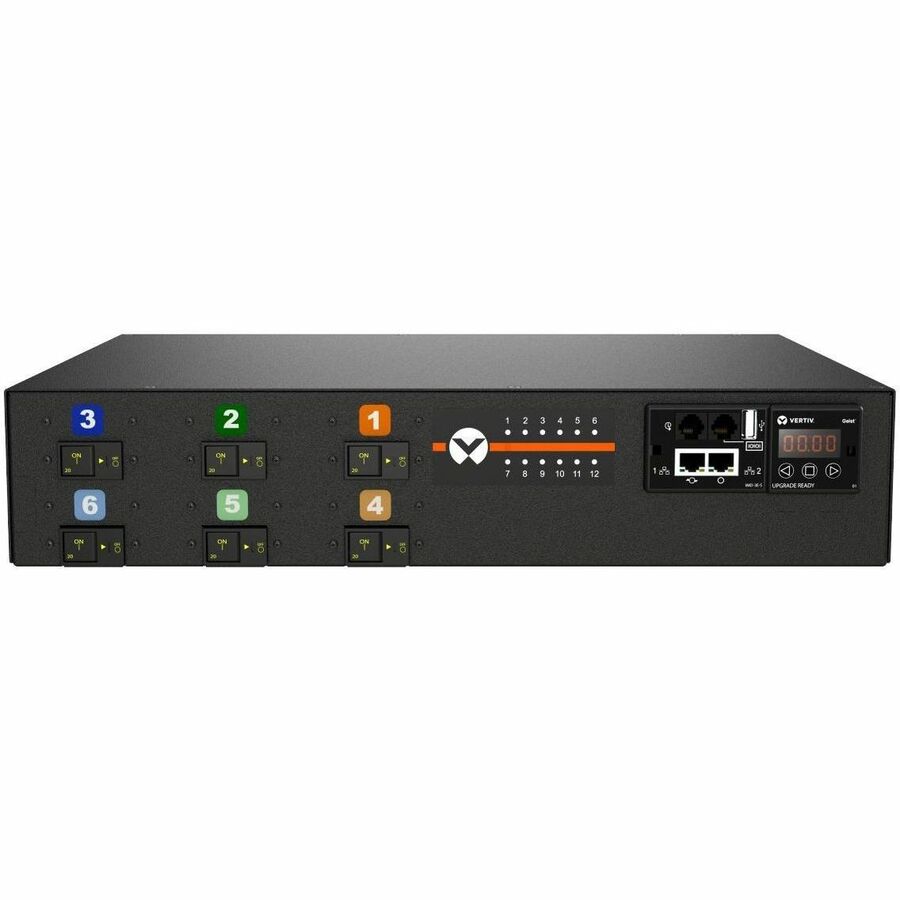

The Vertiv Geist NS30212 is a 50A Switched Rack PDU designed for enterprise-class data centers and critical infrastructure. This 2U horizontal power distribution unit delivers 14.4kW at 208V, equipped with 12 Combination C13/C19 outlets, robust input monitoring, and outlet-level switching. It features dual Ethernet ports for daisy-chain connectivity, high-visibility LED display, and supports environmental sensors to ensure intelligent power management.
With circuit/breaker current monitoring and hot-swappable monitoring capabilities, the NS30212 enables real-time control, analytics, and proactive maintenance. Built with a durable black powder-coated finish and compliant with TAA standards, it's ideal for mission-critical environments requiring reliable, flexible power distribution.
Specification | Details |
---|---|
Manufacturer | Vertiv |
Brand Name | Geist |
Model Number | NS30212 |
Series | rPDU |
Type | Switched Unit Level Monitored EC rPDU |
Mounting | Horizontal, 2U Rack-Mountable |

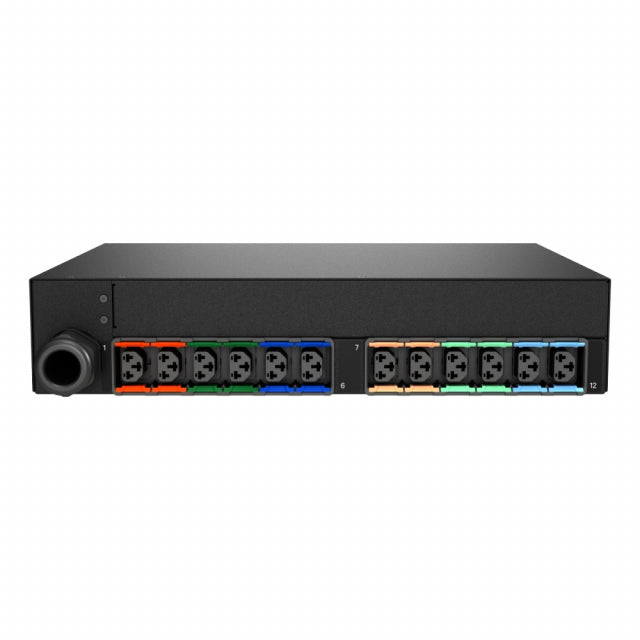

Outlet Quantity | 12 Combination Outlets (C13/C19) |
Input Power | 50A, 208V 3-Phase DELTA |
Power Capacity | 14.4kW |
Cord Length | 10 ft / 3 m |
Plug Type | California Style 50A, 250V, 3P/4W Twistlock |
Overcurrent Protection | (6) 20A Double Pole Magnetic Breakers (10kAIC Rated) |
Outlet Switching | Individual Outlet Control |
Input Monitoring | Total Unit (kWh, W, VA, PF), Phase & Line Monitoring |
Circuit Monitoring | Circuit/Breaker Current (2% Accuracy) |
Ethernet Ports | Dual 10/100Mbps, Daisy Chain Support |
Indicators | 12 High-Visibility LEDs |
Display | Rotatable Digital LED Display |
Configuration Style | Banks of 6 |
Circuit Colors | Orange, Green, Blue, Light Orange, Light Green, Light Blue |
Temperature Rating | Max 60°C / 140°F |
Remote Management Protocols | DHCP, HTTP, HTTPS, SNMP, RADIUS, SSH, Syslog, TACACS+, etc. |
Data Access Formats | CSV Datalog, JSON API, JSON Datalog |
Sensor Support | 1 RJ Port (Supports up to 16 Sensors) |
Reset Buttons | IP Reset, Hard Reboot |
Finish | Black Heavy Steel Powder Coat |
Compliance | TAA Compliant |
Dimensions (HxWxD) | 3.39in x 17in x 12in / 87mm x 432mm x 305mm |
Country of Origin | USA |
