Description

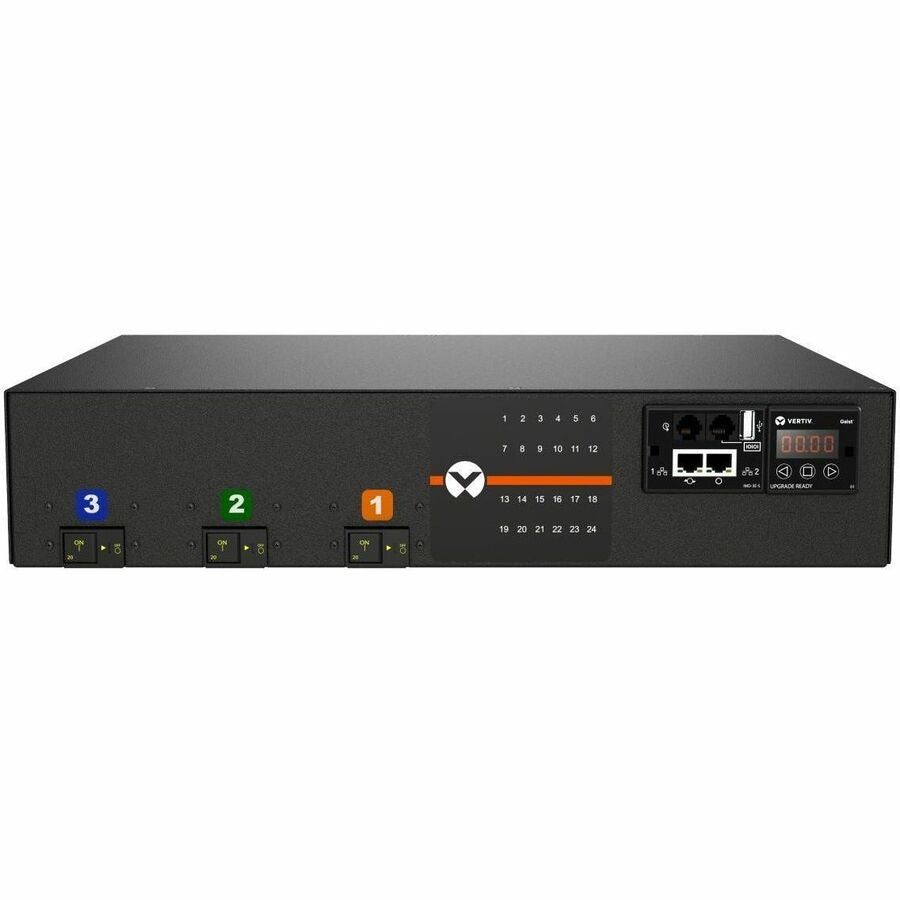

The Vertiv Geist Switched Rack PDU NS30217 (MNS3EDR6-24CF18-3TL21A0H10-S) is a highly reliable 3-phase, 30A, horizontal 2U rack-mountable power distribution unit designed to support mission-critical IT equipment. It features 24 combination C13/C19 outlets with remote switching capabilities, allowing outlet-level power cycling and monitoring. Built with environmental sensors and advanced network management protocols, this rPDU enables comprehensive visibility and control of energy consumption, outlet status, and environmental metrics. With fault-tolerant daisy chaining and TAA compliance, it's ideal for high-performance data centers and federal environments.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Series | rPDU |
| Model | MNS3EDR6-24CF18-3TL21A0H10-S |
| Part Number | NS30217 |
| PDU Type | Switched |
| Phase | Three Phase |
| Input Plug | NEMA L21-30P |
| Input Voltage | 100–120V / 200–240V AC |
| Output Voltage | 208V AC |
| Current Rating | 30A |
| Power Capacity | 8600 Watts |

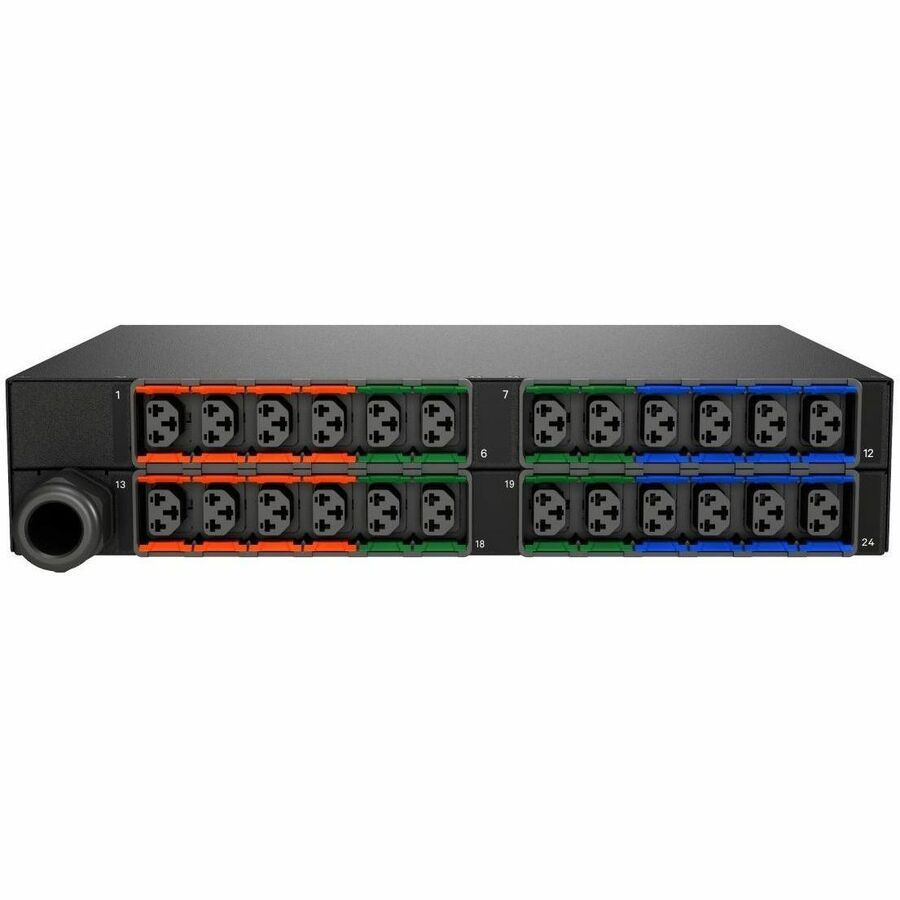

| Receptacles | 24 x Combination C13/C19 |
| Cord Length | 10 ft |
| Mounting | Rack-mountable, Recess-mountable |
| Orientation | Horizontal |
| Rack Height | 2U |
| Dimensions (HxWxD) | 3.4" x 17" x 12" |
| Color | Black Powder Coat |
| Environmental Compliance | RoHS, TAA Compliant |
| Management Protocols | SNMP (v1/v2c/v3), HTTP/HTTPS, RADIUS, SSH, Modbus TCP, JSON API, Syslog, etc. |
| Network Interface | RJ-45 |
| Monitoring | Switched Unit-Level, Environmental Monitoring Capable |
| Circuit Protection | Overcurrent Protection, Double Pole, Circuit Breaker |
| Operating Temp | Up to 140°F (60°C) |
| Package Includes | rPDU Unit, 19in Recess Mount |
| Application | IT Equipment |
| Certifications | UL, c-UL 62368-1, FCC Part 15 Class A |
| Warranty | 5-Year Limited (with registration within 120 days) |
| Country of Origin | United States |
| Shipping Weight | 1 lb |
