Description

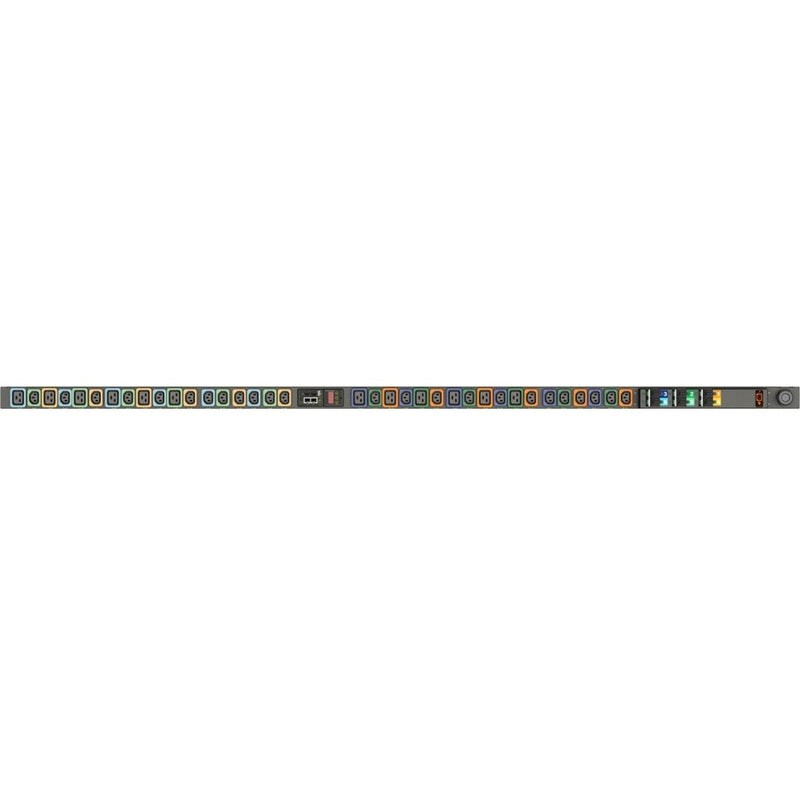

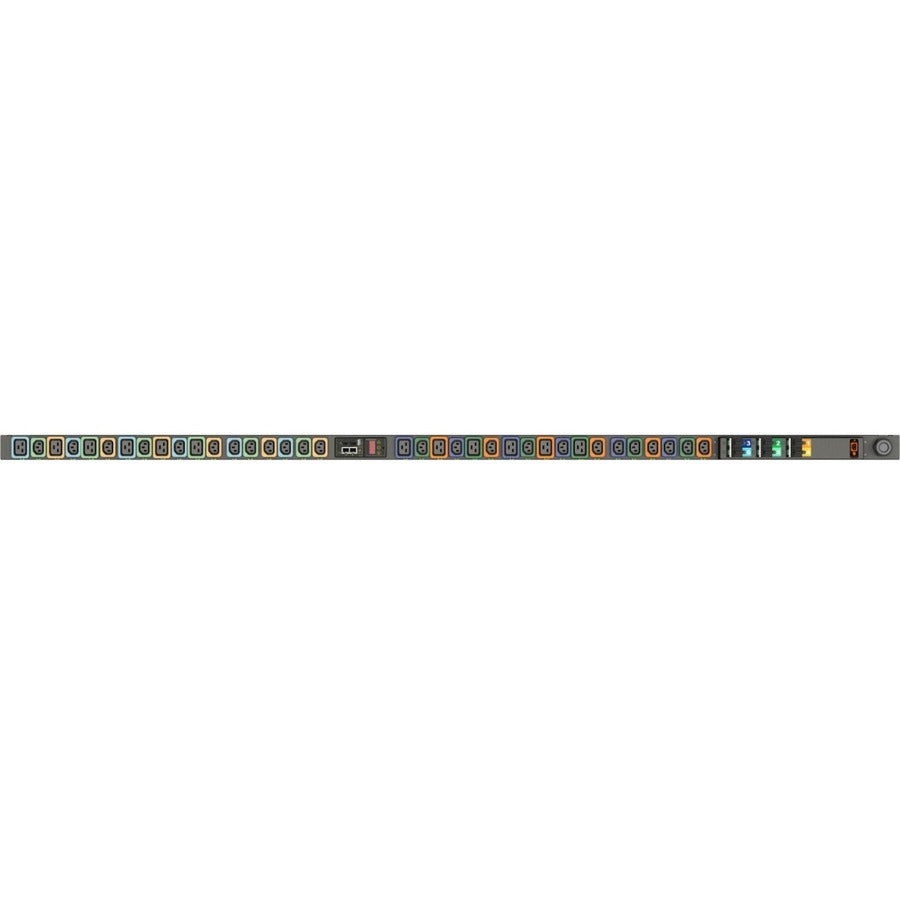

The Vertiv Geist NS30035L is a switched rPDU that delivers reliable and intelligent power distribution for mission-critical IT equipment. It provides outlet-level EC monitoring with remote access, allowing for real-time data tracking and enhanced operational efficiency. With 36 outlets (24 C13 and 12 C19) and a vertical 0U design, this PDU supports three-phase 230V/415V input and includes advanced network management, environmental monitoring capabilities, and fault-tolerant daisy chaining for up to 50 devices on one IP address.
Ideal for enterprise data centers, the NS30035L enhances uptime, simplifies energy usage tracking, and ensures safe, scalable deployment in rack environments.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Product Series | rPDU |
| Part Number | NS30035L |
| Model | MNS3EGW2-36PNB3-3PS56B0A10-S-A |
| Product Type | Switched PDU |
| Input Plug Type | 3P+N+E (IP44) |
| Receptacles | 24 x Locking IEC 60320 C13, 12 x Locking IEC 60320 C19 |
| Input Voltage | 230V AC / 415V AC |
| Output Voltage | 230V AC |
| Input Voltage Range | 200–240V AC / 346–415V AC |
| Input Current | 30A |
| Power Rating | 16.60 kW |
| Network Interface | RJ-45 (Supports SNMP, HTTP/HTTPS, SSH, RADIUS, TACACS+, etc.) |
| Remote Switching | Yes |
| Form Factor | Vertical |
| Rack Units | 0U |
| Mount Type | Rack-Mountable |
| Dimensions (W x D x L) | 2" x 2.6" x 72" |
| TAA Compliant | Yes |
| Warranty | 5-Year Limited Warranty |
| Environmental Monitoring | Supported (Sensors Sold Separately) |
| Package Includes | PDU, Vertical Mounting Bracket Kit |
| Country of Origin | USA |
| Shipping Weight | 22 lbs |
