Description
The Vertiv VP5N21A2 is a horizontal switched rack PDU offering 11.5kW capacity at 20A, 240/415V WYE. Designed for high-density IT environments, it provides outlet-level control, input monitoring, and environmental sensing. With 12 combination C13/C19 outlets and robust network management features, this rPDU enables real-time monitoring, remote reboot capabilities, and reliable power delivery. Daisy-chain support and high-visibility display streamline deployment and uptime assurance.
| Specification | Details |
|---|---|
| Model | VP5N21A2 |
| Type | Switched rPDU, Unit Level Monitoring |
| Mounting | Horizontal, 19in / 483mm |
| Input Voltage | 200-240/346-415V WYE |
| Input Current | 20A x 3 Phase |
| Load Capacity | 11.5kW (240V) |
| Plug Type | IEC60309 3P+N+E, 20A, IP44 |

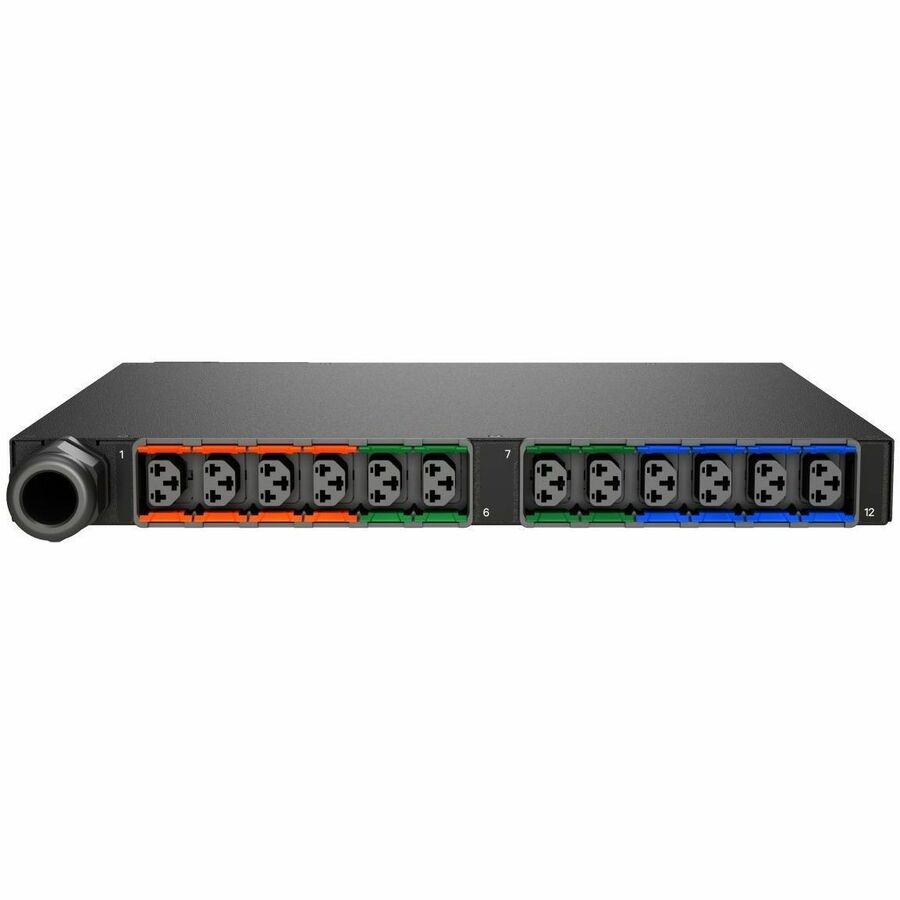

| Receptacles | 12x Combination C13/C19 |
| Per Phase Distribution | 4 per phase (Color-coded: Orange, Green, Blue) |

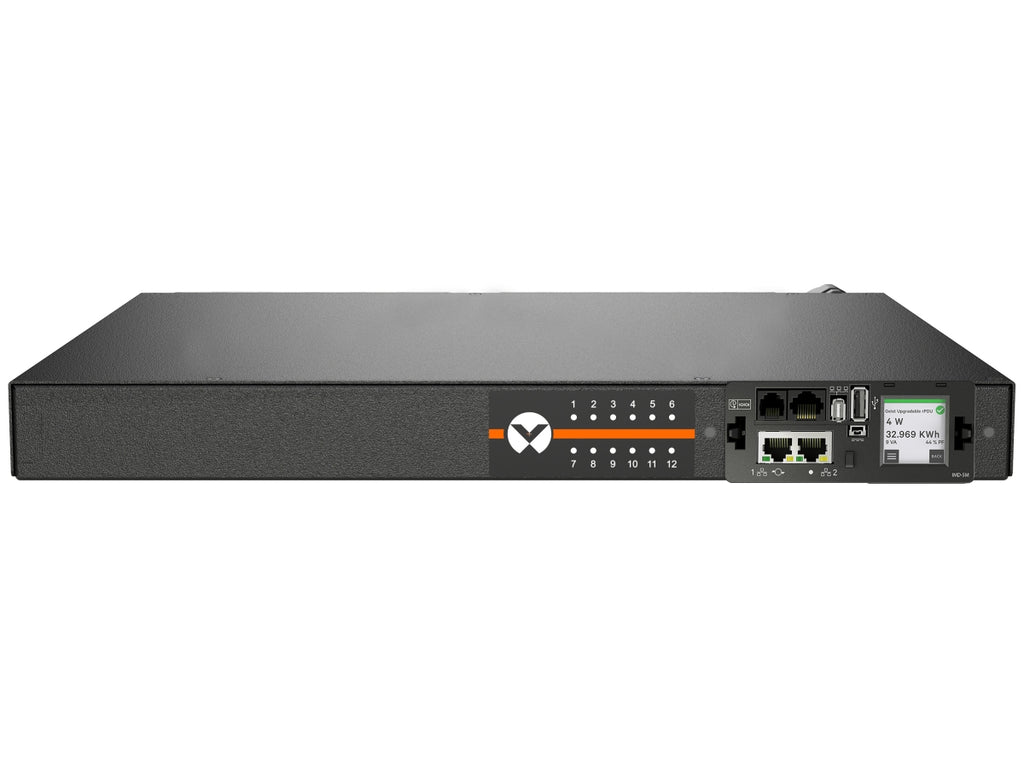

| Display | LCD, Auto-Oriented, High Visibility |
| Monitoring | Input, Phase, Circuit/Breake (A), kWh, W, VA, PF |
| Accuracy | ANSI C12.1 / IEC 62053-21 (1%); Circuit at 2% |
| Environmental Monitoring | Yes, via optional sensors (up to 16) |
| Remote Management | Outlet-level control, sequencing, delay |
| Ethernet Ports | Dual 10/100/1000Mbps |
| Supported Protocols | SNMP, RADIUS, TACACS+, Syslog, Modbus TCP, etc. |
| USB / Serial Ports | USB support; RS232 via RJ45 |
| Cable Length | 10ft / 3m |
| Finish | Black powder-coated steel |
| Operating Temp. | Up to 60°C / 140°F |
| Certifications | UL 62368-1, RoHS, FCC Class A |
| Warranty | 5 years (if registered in 120 days), else 3 years |
| Country of Origin | USA – TAA & BAA COTS Compliant |
| Weight | 10 lbs / 4.54 kg |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in / 44 x 432 x 305 mm |
