Description

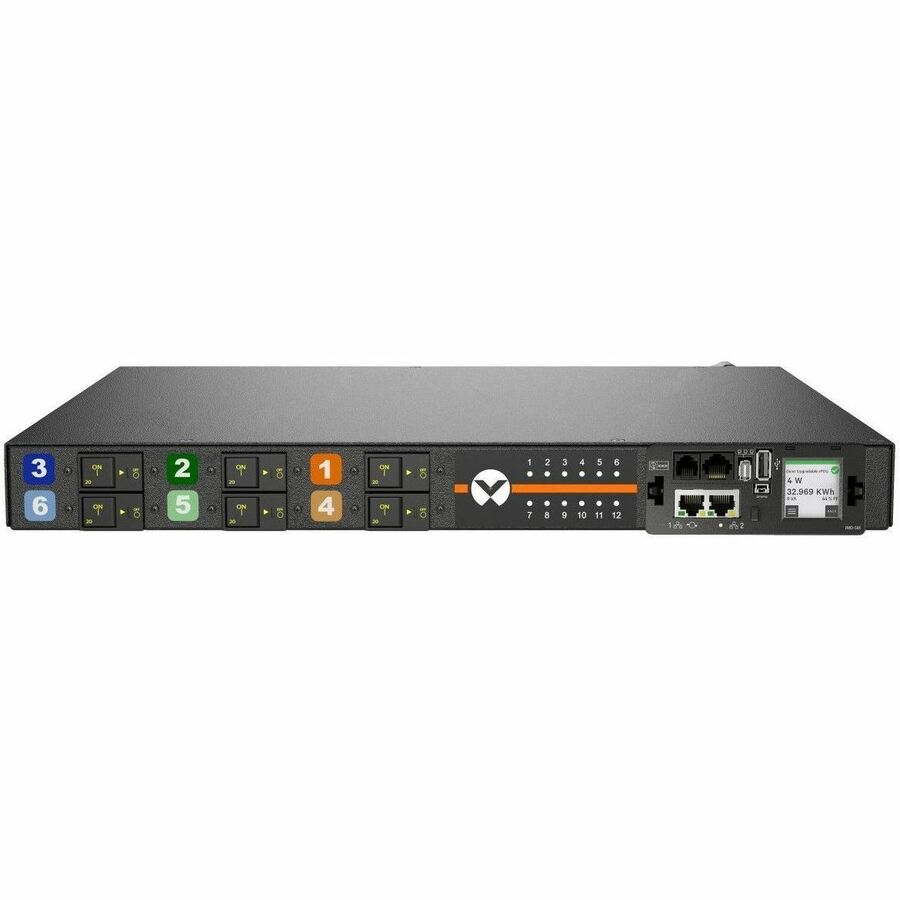

The Vertiv VP5N31A5 is a switched rack PDU offering advanced unit-level monitoring, remote outlet control, and environmental sensing to optimize IT power management. With 12 combination C13/C19 outlets, this 30A, 240/415V WYE rPDU supports a load capacity of 17.2kW and includes features such as input power monitoring, breaker-level current tracking, daisy-chain Ethernet, and dual network ports. Its horizontal 19-inch form factor and durable black powder-coated finish make it ideal for high-density, mission-critical rack environments.
| Attribute | Details |
|---|---|
| Model Number | VP5N31A5 |
| PDU Type | Switched |
| Monitoring | Unit-level (kWh, W, VA, PF, V, A) with outlet switching |
| Current Rating | 30A x 3 Phase WYE |
| Voltage | 200-240/346-415V WYE |
| Power Capacity | 17.2kW @ 240V |
| Input Plug Type | IEC60309 3P+N+E (IP44) |

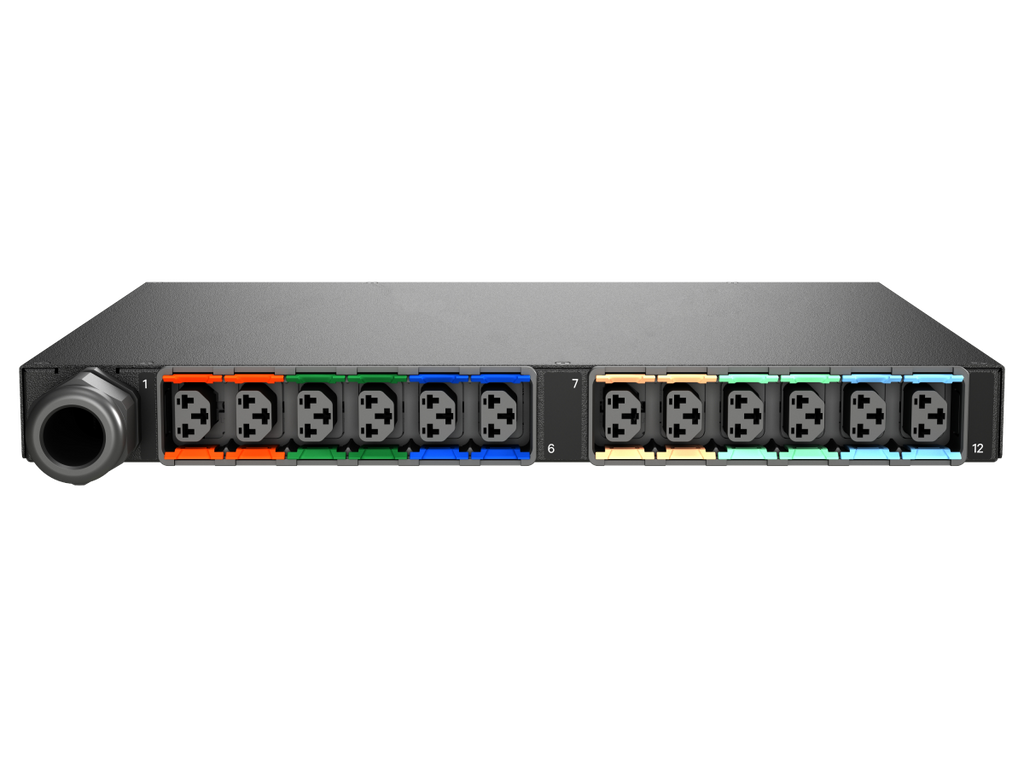

| Receptacles | 12 x Combination C13/C19 |
| Mounting Orientation | Horizontal, 19-inch (483mm) |
| Power Cord Length | 10ft / 3m |
| Overcurrent Protection | (6) 20A Single Pole Magnetic Breakers (10kAIC) |
| Circuit Monitoring | Breaker-level (A), 2% accuracy |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet |
| Supported Protocols | SNMP (v1/v2c/v3), HTTPS, SSH, Modbus TCP, etc. |
| Remote Features | Outlet switching, time delays, sequential power-up |
| Environmental Monitoring | Supports optional sensors (up to 16) |
| Display | Auto-orienting LCD touchscreen display |
| Chassis Color | Black powder coat |
| Chassis Dimensions (HxWxD) | 1.72in x 17in x 12in (44mm x 432mm x 305mm) |
| Weight | 18 lbs (8.16 kg) |
| Operating Temperature | Max 60°C / 140°F |
| Compliance & Certifications | UL 62368-1, RoHS, FCC Part 15 Class A, TAA & BAA Compliant |
| Warranty | 5-year limited (if registered within 120 days), otherwise 3 years |
| Country of Origin | USA |
