Description

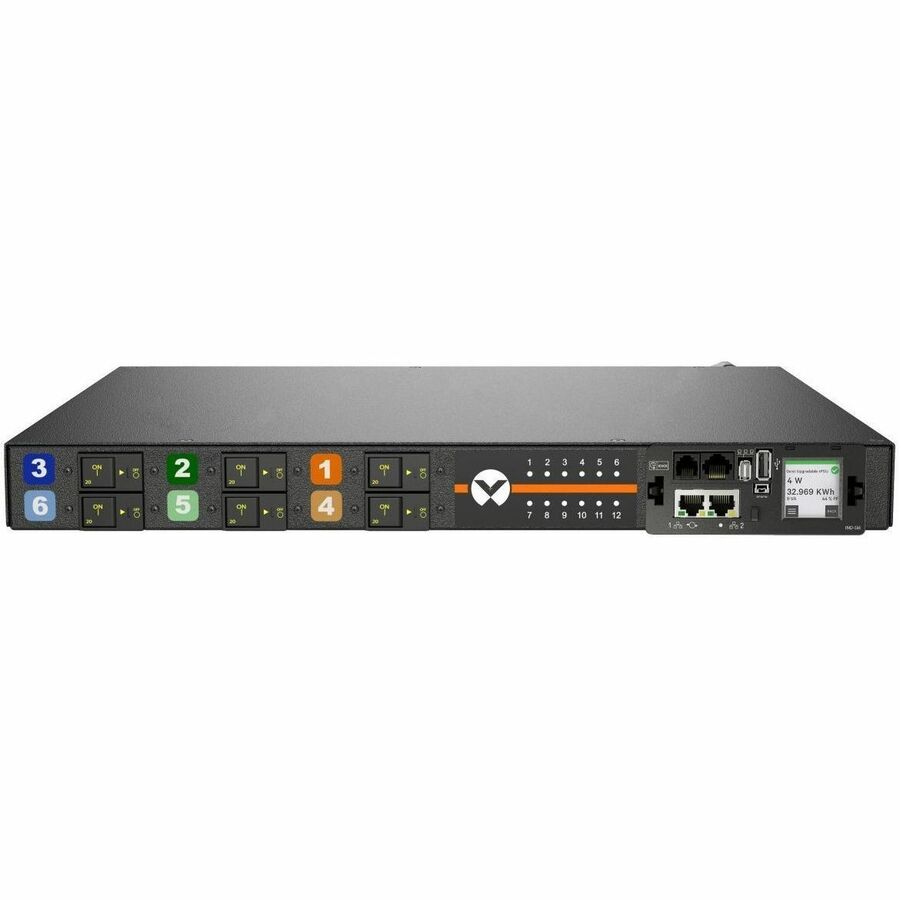

The Vertiv VP5N31A4 is a horizontal switched rack PDU delivering intelligent unit-level power monitoring and individual outlet control. Designed for 3-phase, 30A WYE input with 17.2kW capacity, it features 12 combination C13/C19 outlets, a 10ft power cord with L22-30P plug, and an integrated touchscreen display. Environmental monitoring, fault-tolerant daisy chaining, and robust remote management make it ideal for high-density data centers seeking reliability, visibility, and control.
| Attribute | Details |
|---|---|
| Part Number | VP5N31A4 |
| Product Type | Switched Rack PDU (rPDU) |
| Input Voltage / Phase | 200-240/346-415V WYE, 3-Phase |
| Maximum Load Capacity | 17.2kW |
| Input Plug Type | NEMA L22-30P (Twistlock) |

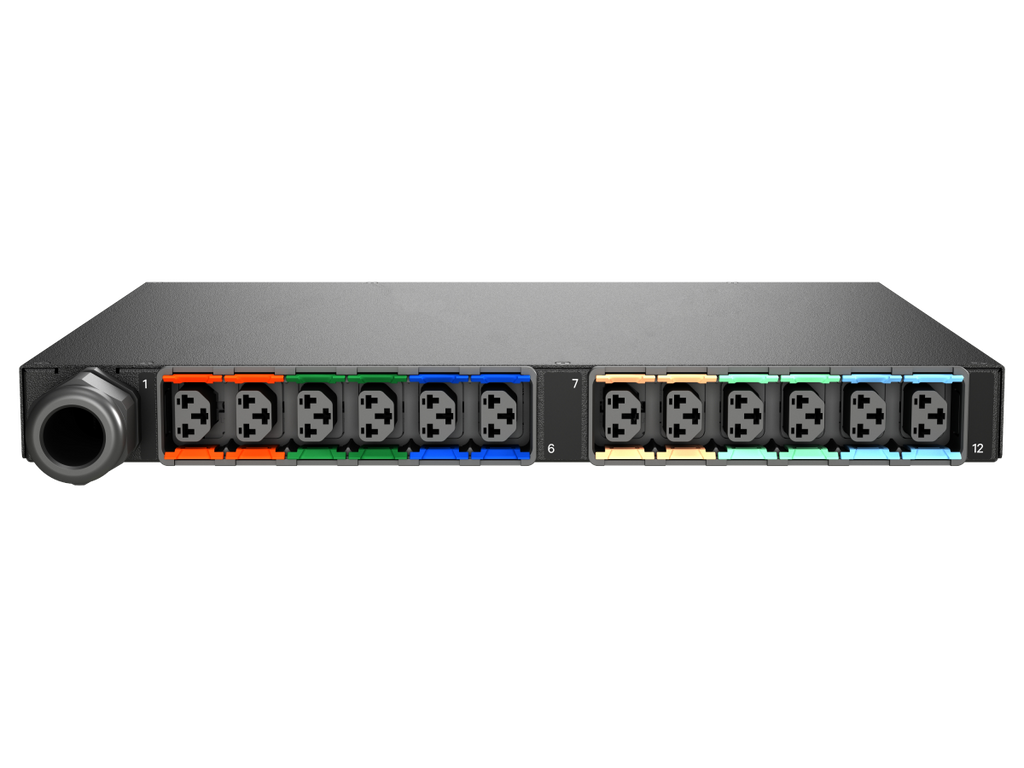

| Receptacle Type | (12) Combination C13/C19 |
| Output Voltage per Receptacle | 240V (L-N) |
| Current Rating | 30A |
| Form Factor | 19in / 483mm Horizontal |
| Power Cord Length | 10 ft / 3 m |
| Monitoring | Unit-level + Phase + Breaker Monitoring (kWh, A, PF) |
| Switching | Individual outlet control with power-up delay options |
| Display | Auto-orienting LCD touchscreen + LED indicators (12) |
| Network Ports | Dual Gigabit Ethernet (10/100/1000 Mbps) |
| Protocols | SNMP v1/v2c/v3, HTTPS, SSH, RADIUS, Modbus TCP, etc. |
| Environmental Monitoring | Optional sensors (up to 16) via RJ connection jack |
| Daisy Chaining | Up to 50 devices, fault-tolerant via RSTP |
| Overcurrent Protection | (6) 16A Magnetic Breakers, 10kAIC |
| Construction | Steel, Black Powder Coat Finish |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Operating Temperature | Max 60°C / 140°F |
| Mounting | Adjustable brackets included |
| Dimensions (H x W x D) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 18 lbs (8.16 kg) |
| Warranty | 5 years (with registration), otherwise 3 years |
| Country of Origin | USA – TAA & BAA COTS Compliant |
