Description

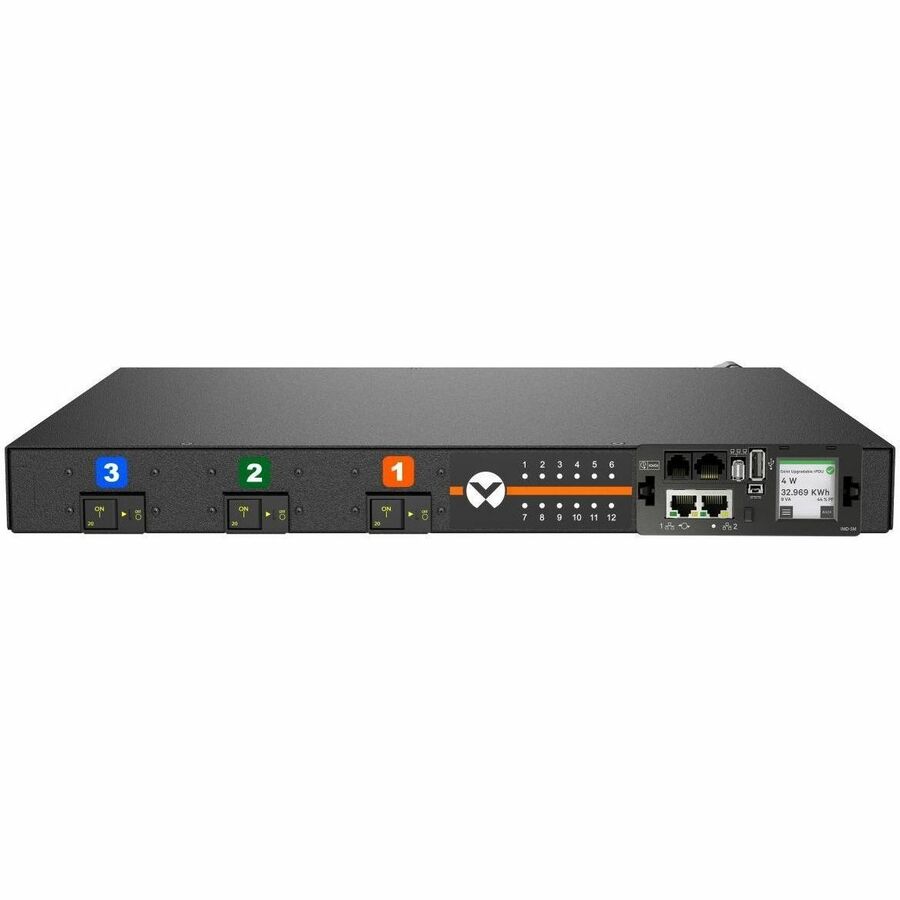

The Vertiv VP5N31A3 is a horizontal, switched rack power distribution unit (rPDU) designed for high-performance data centers and IT environments. It delivers 30A of three-phase 208V power, supporting a total load capacity of 8.6kW. With 12 combination C13/C19 outlets, this unit enables individual outlet switching and input-level monitoring, along with environmental monitoring support. The VP5N31A3 also features daisy-chain Ethernet connectivity, circuit-level current monitoring, and a high-visibility touchscreen display—all housed in a durable black powder-coated chassis.
| Specification | Details |
|---|---|
| Model Number | VP5N31A3 |
| Power Configuration | 30A, 208V DELTA, 8.6kW |
| Form Factor | Horizontal, 19in / 483mm |

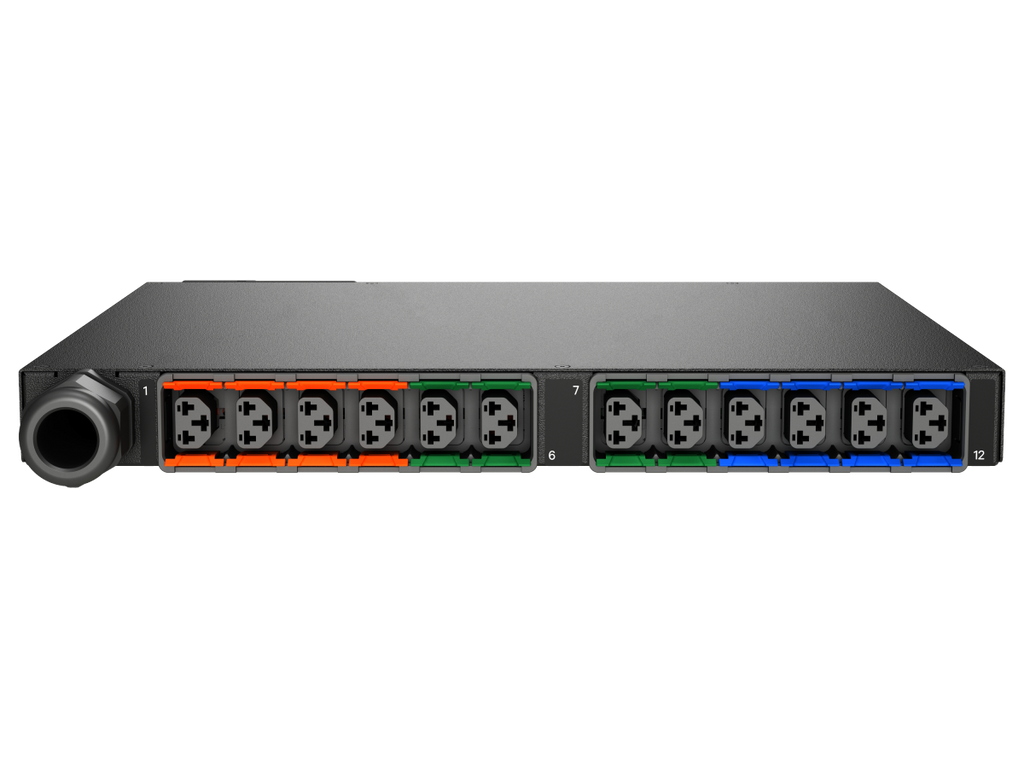

| Outlets | 12 x Combination C13/C19 |
| Plug Type | NEMA L15-30P (Twistlock) |
| Power Cord Length | 10ft / 3m |
| Monitoring | Switched, Unit Level, Input, Circuit/Breaker (Current), Environmental |
| Display | LCD Touchscreen, Auto Oriented |
| Networking | Dual 10/100/1000 Mbps Ethernet, Daisy-Chaining up to 50 units |
| Supported Protocols | SNMP (v1/v2c/v3), HTTP/HTTPS, SSH, Modbus TCP, RADIUS, Syslog, TACACS+ |
| Environmental Sensor Support | Yes (1 RJ port, up to 16 sensors) |
| Breaker Configuration | (3) 20A Double Pole Magnetic Breakers, 10kAIC Rated |
| Chassis Dimensions (HxWxD) | 1.72in x 17in x 12in / 44mm x 432mm x 305mm |
| Weight | 18lbs / 8.16kg |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Operating Temperature | Up to 60°C / 140°F |
| Finish | Black Powder Coat, Steel |
| Country of Origin | USA, TAA & BAA COTS Compliant |
| Warranty | 5-Year (with registration within 120 days), otherwise 3-Year |
