Description

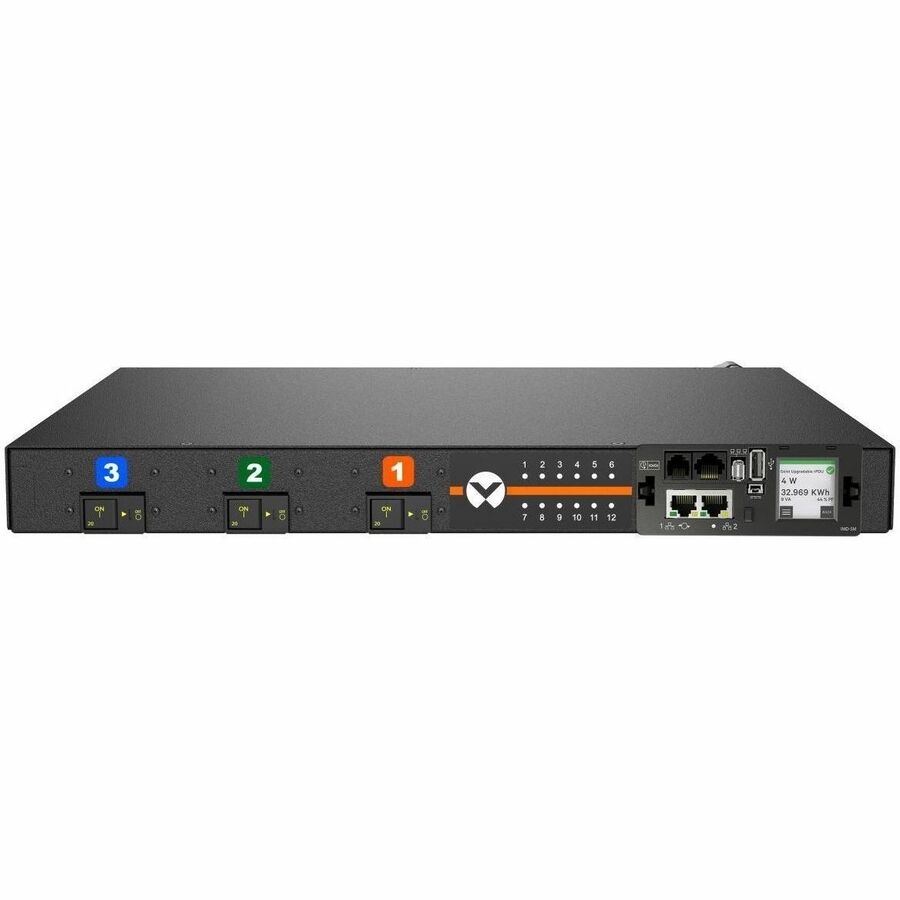

The Vertiv Geist VP5N31A2 is a Switched rPDU with unit-level monitoring and remote outlet control, designed for high-performance data centers and IT environments. Delivering 30A, 120/208V WYE power across 12 combination C13/C19 outlets, this 19-inch horizontal rackmount unit offers precise circuit-level current monitoring, real-time energy metrics, and advanced remote access features. Equipped with daisy-chain Ethernet connectivity, environmental sensor support, and a high-visibility local LCD display, it ensures reliable and efficient power distribution with intelligent infrastructure management.
| Specification | Details |
|---|---|
| Model | VP5N31A2 |
| Power Rating | 30A, 120/208V WYE, 8.6kW |
| Monitoring | Unit-level, Phase (A/B/C), Breaker/Circuit |
| Remote Management | Individual outlet switching with sequencing |
| Mounting Orientation | 19" Horizontal Rackmount |

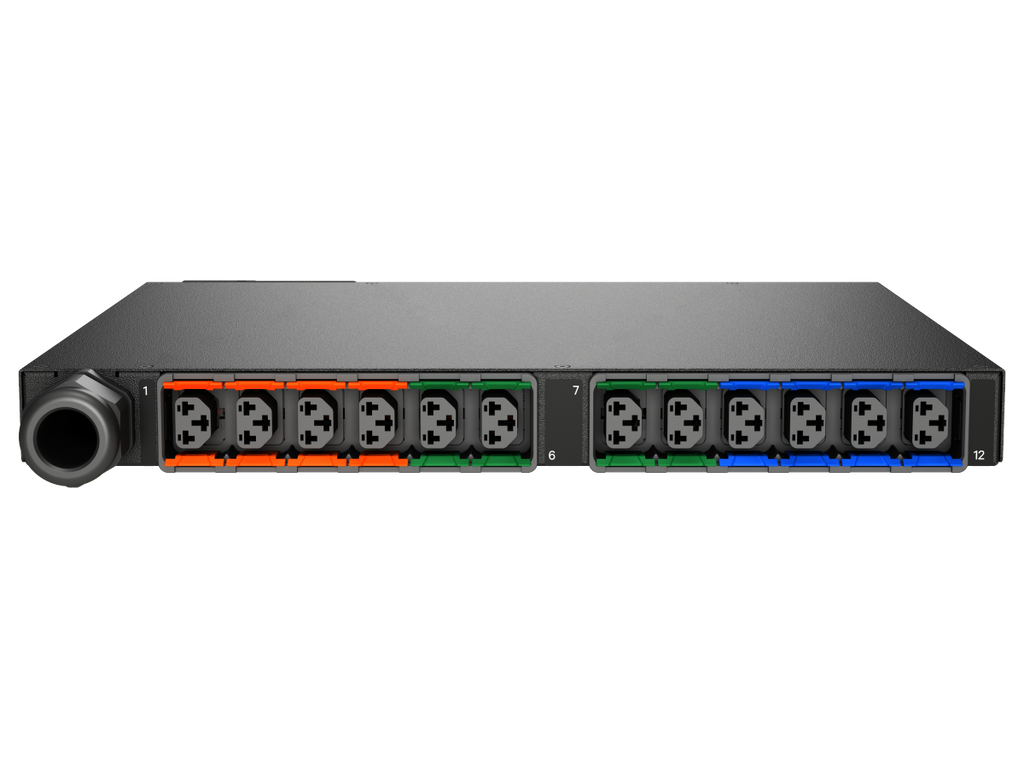

| Outlets | 12 Combination C13/C19 |
| Plug Type | NEMA L21-30P Twistlock |
| Power Cord | 10 ft / 3m, 10/5 gauge |
| Overcurrent Protection | (3) 20A Double Pole Breakers (10kAIC) |
| Display | LCD Touchscreen, Auto Orientation |
| Chassis Color | Black Powder Coat |
| Chassis Dimensions | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 18 lbs (8.16 kg) |
| Network Interfaces | Dual 10/100/1000 Mbps Ethernet |
| Supported Protocols | SNMP, HTTP/HTTPS, SSH, RADIUS, Modbus TCP etc. |
| Environmental Monitoring | Via optional sensors (up to 16) |
| USB Support | Yes |
| Reset/Reboot Buttons | Yes (IP Reset, Hard Reboot) |
| Daisy Chain Capacity | Up to 50 devices per IP |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Country of Origin | USA (TAA & BAA Compliant) |
| Warranty | 5-year (if registered within 120 days) |
