Description

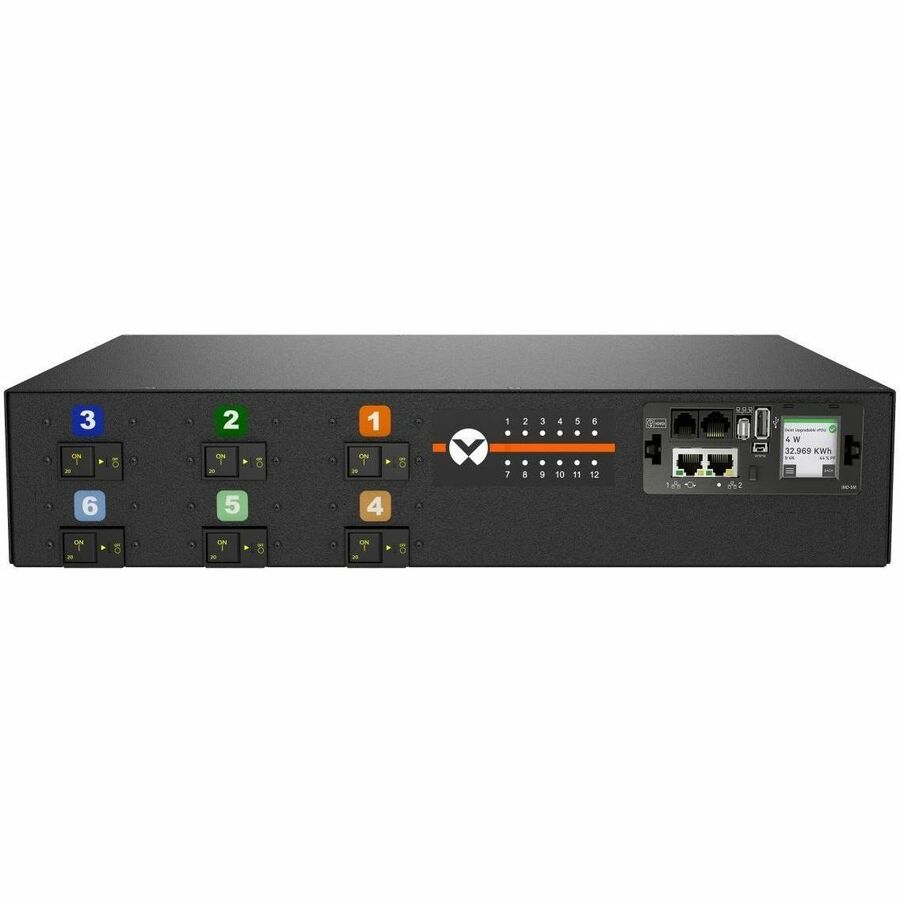

The Vertiv VP5N52A0 is a horizontal switched rack PDU (rPDU) providing reliable, intelligent power distribution with unit-level input metering and outlet-level switching. With 50A, 208V Delta input delivering up to 14.4kW, it features 12 C13/C19 outlets, robust circuit protection, and advanced environmental monitoring support. Ideal for high-density IT deployments, this 2U unit includes remote management capabilities and daisy chaining for up to 50 devices on one IP.
| Feature | Specification |
|---|---|
| Model | VP5N52A0 |
| Form Factor | Horizontal, 2U, 19in rackmount |
| Input Voltage / Phase | 208V, 3-Phase Delta |
| Input Current | 50A |
| Load Capacity | 14.4kW |
| Plug Type | 3P+E California Style Twistlock |

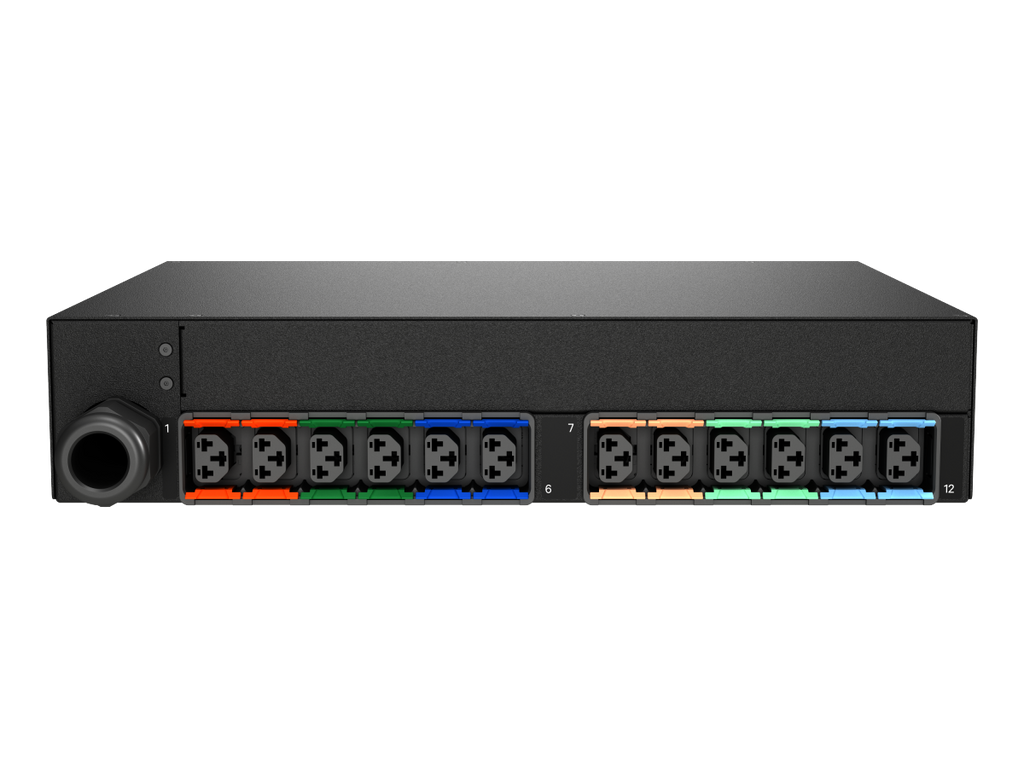

| Outlet Type & Qty | Combination C13/C19 x 12 |
| Overcurrent Protection | (6) 20A Double Pole Magnetic Breakers |
| Monitoring | Unit-level input monitoring, circuit monitoring |
| Switching | Individual outlet-level remote switching |
| Display | High-visibility local touchscreen display |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet |
| Protocol Support | SNMP, HTTP/S, SSH, DHCP, Modbus TCP, Syslog, etc. |
| Environmental Sensors | Optional (supports up to 16 sensors) |
| Daisy Chaining | Up to 50 rPDUs on one IP |
| Operating Temperature | Up to 60°C |
| Finish | Black Powder Coat, Steel |
| Certifications | UL 62368-1, FCC Class A, RoHS |
| Warranty | 5-Year Limited (with registration) |
| Dimensions (HxWxD) | 3.39 x 17 x 12 in (87 x 432 x 305 mm) |
| Weight | 20 lbs (9.07 kg) |
| Country of Origin | USA, TAA & BAA COTS Compliant |
