Description

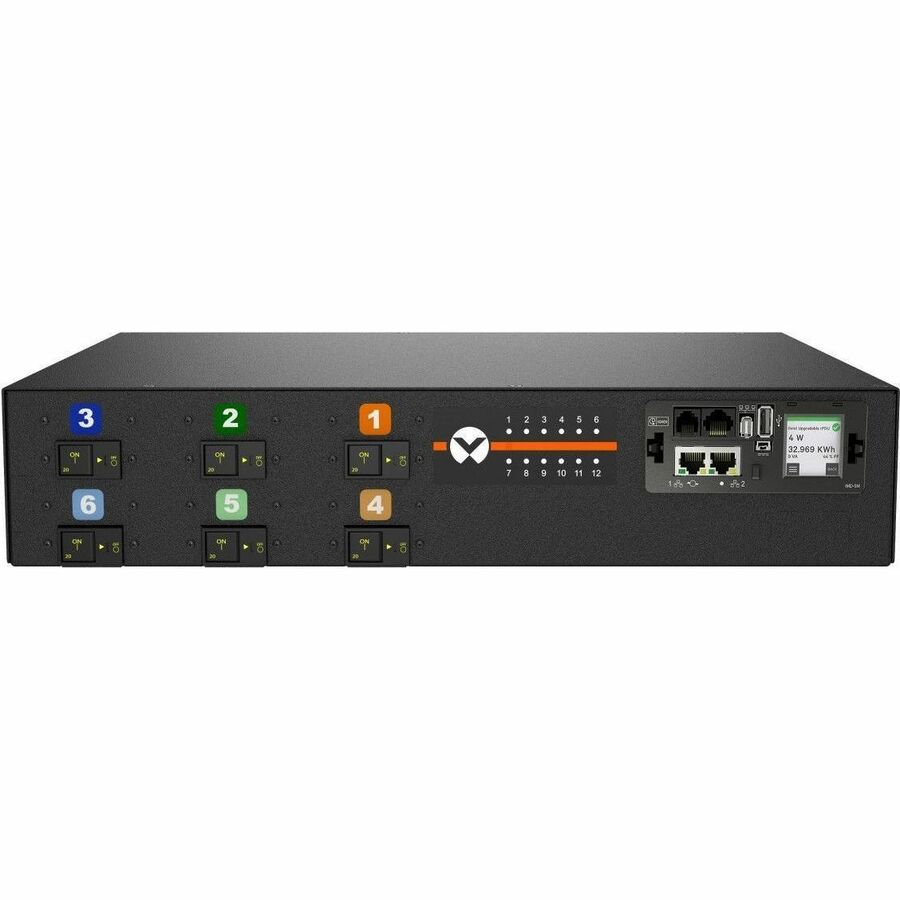

The Vertiv VP5N62A0 is a 2U horizontal switched rack PDU designed to deliver reliable, intelligent power distribution for high-density IT environments. It supports 60A, 208V Delta input with a 17.2kW load capacity, providing 12 combination C13/C19 outlets. Featuring unit-level monitoring, individual outlet switching, optional environmental sensors, and daisy chain connectivity for up to 50 devices, this rPDU ensures efficient remote power management and uptime. Includes a 10ft power cord with IP44-rated IEC60309 3P+E plug.
| Specification | Details |
|---|---|
| Model | VP5N62A0 |
| Form Factor | Horizontal, 2U |
| Input Voltage / Type | 208V Delta, 60A, 3-Phase |
| Load Capacity | 17.2kW |

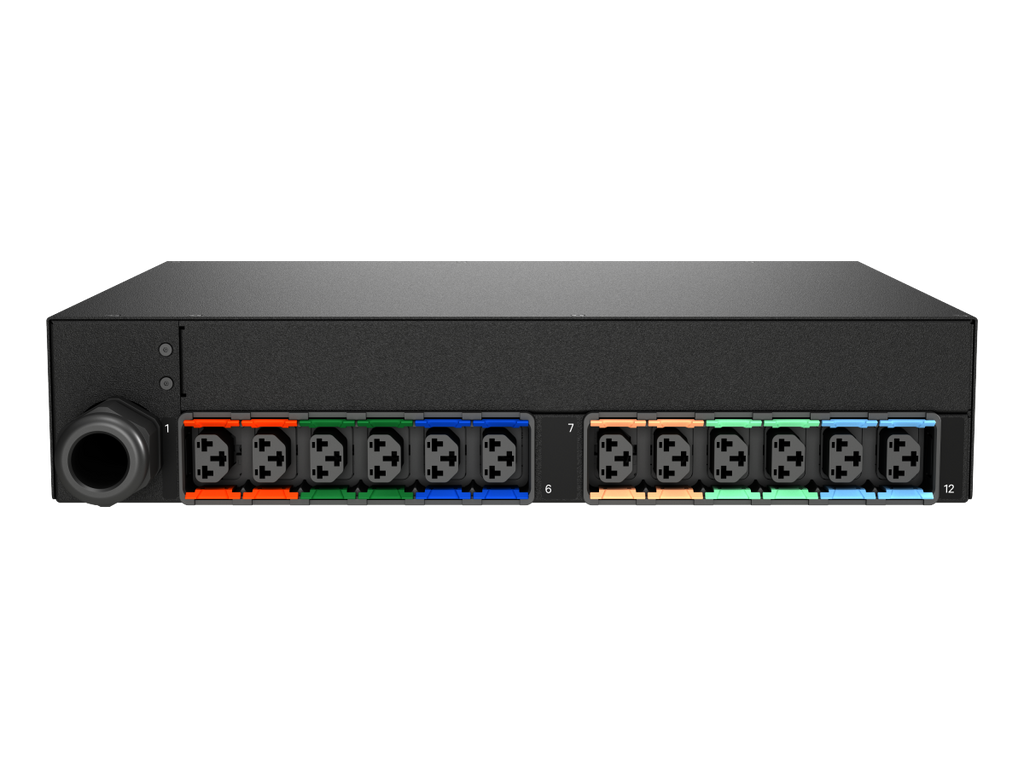

| Receptacle Type / Qty | Combination C13/C19 x12 |
| Input Plug | IEC60309 3P+E, IP44 |
| Power Cord Length | 10ft (3m) |
| Monitoring Type | Unit-level monitoring with outlet switching |
| Breaker Configuration | (6) 20A Double Pole Magnetic Breakers |
| Circuit Monitoring Accuracy | 2% (Independently verified) |
| Display | LCD touchscreen with auto-orientation |
| Networking | Dual Ethernet 10/100/1000 Mbps |
| Supported Protocols | SNMP, DHCP, HTTPS, IPv4/6, Modbus TCP, etc. |
| Remote Management | Outlet control with delay/sequencing |
| Environmental Sensors | Optional; supports up to 16 sensors |
| Daisy Chain Support | Up to 50 rPDUs on one IP address |
| Mounting | 19" rack mount compatible |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-year (with registration) |
| Chassis Finish / Color | Black powder coat, heavy-duty steel |
| Dimensions (HxWxD) | 3.39 x 17 x 12 in / 87 x 432 x 305 mm |
| Weight | 20 lbs / 9.07 kg |
