Description

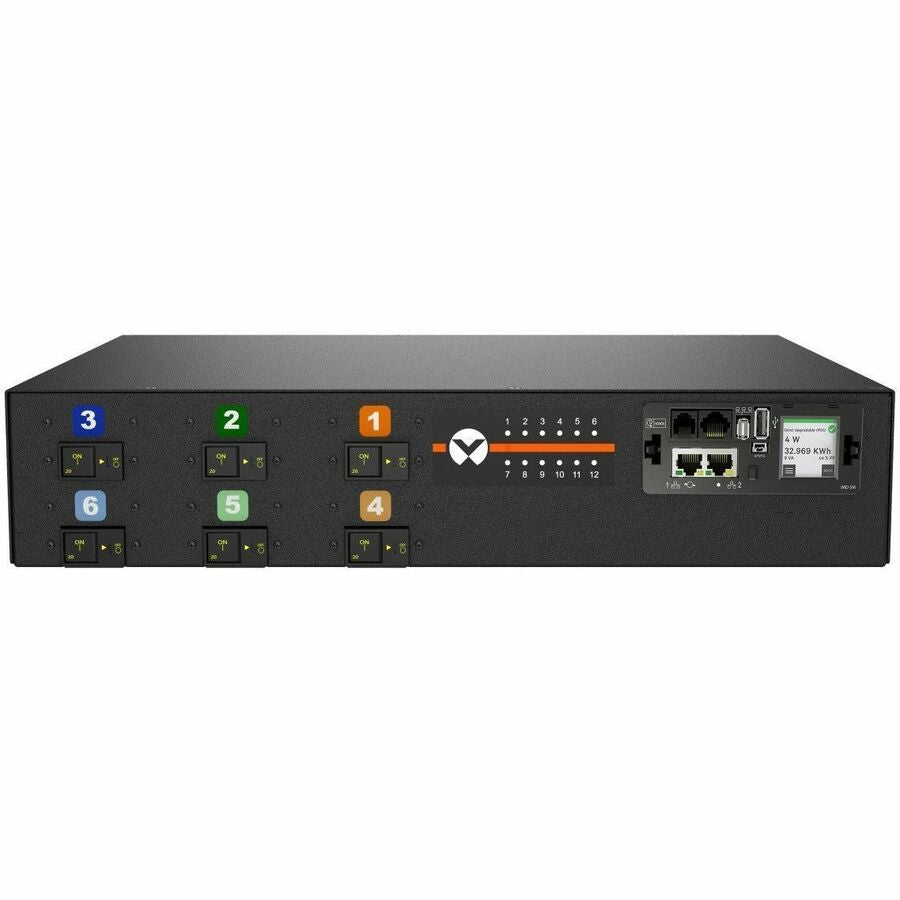

The Vertiv VP5N62A1 is a Switched rack PDU (rPDU) offering unit-level power monitoring and individual outlet control to help optimize power usage and support remote rebooting of unresponsive equipment. Designed for high-density IT environments, it delivers 17.2kW power at 60A 208V Delta across 12 combination C13/C19 outlets. Featuring a horizontal 2U form factor, integrated environmental sensor support, daisy chaining up to 50 devices, and secure remote access via multiple network protocols, the VP5N62A1 ensures reliable, scalable power distribution with advanced control and monitoring capabilities.
| Feature | Details |
|---|---|
| Model Number | VP5N62A1 |
| Function | Switched rPDU with Unit Level Monitoring |
| Input Voltage | 200–240V Delta |
| Current Rating | 60A, 3-Phase |
| Power Capacity | 17.2kW |

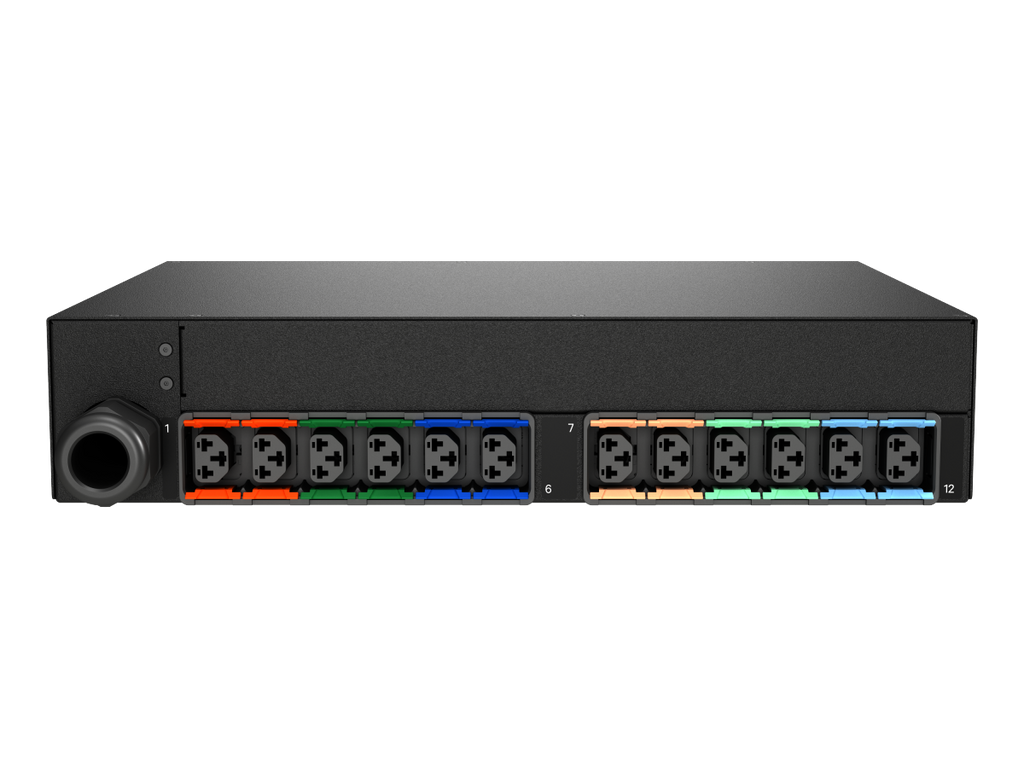

| Outlet Quantity & Type | 12 Combination C13/C19 |
| Mounting Configuration | Horizontal, 2U, 19" Rack Mount |
| Power Cord | 10ft (3m), 6/4 gauge |
| Plug Type | IEC60309 3P+E, 60A, IP67 |
| Monitoring | Input, Circuit/Breaker, Phase, Line Monitoring; 1%–2% Accuracy |
| Switching | Individual outlet control with optional delays and sequencing |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet |
| Protocols Supported | SNMP (v1/v2c/v3), Modbus TCP, HTTPS, SSH, RADIUS, Syslog, more |
| Environmental Monitoring | Optional sensors via 1 RJ port (supports up to 16 sensors) |
| Indicators | LED indicators for each outlet (12 total) |
| Display | Auto-orienting LCD touchscreen |
| Chassis Color | Black powder-coated heavy steel |
| Operating Temperature | Max 60°C (140°F) |
| Compliance | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-year limited (with registration), 3-year otherwise |
| Country of Origin | USA, TAA and Buy American Act COTS compliant |
| Dimensions (HxWxD) | 3.39in x 17in x 12in (87mm x 432mm x 305mm) |
| Weight | 20 lbs (9.07 kg) |
