Description

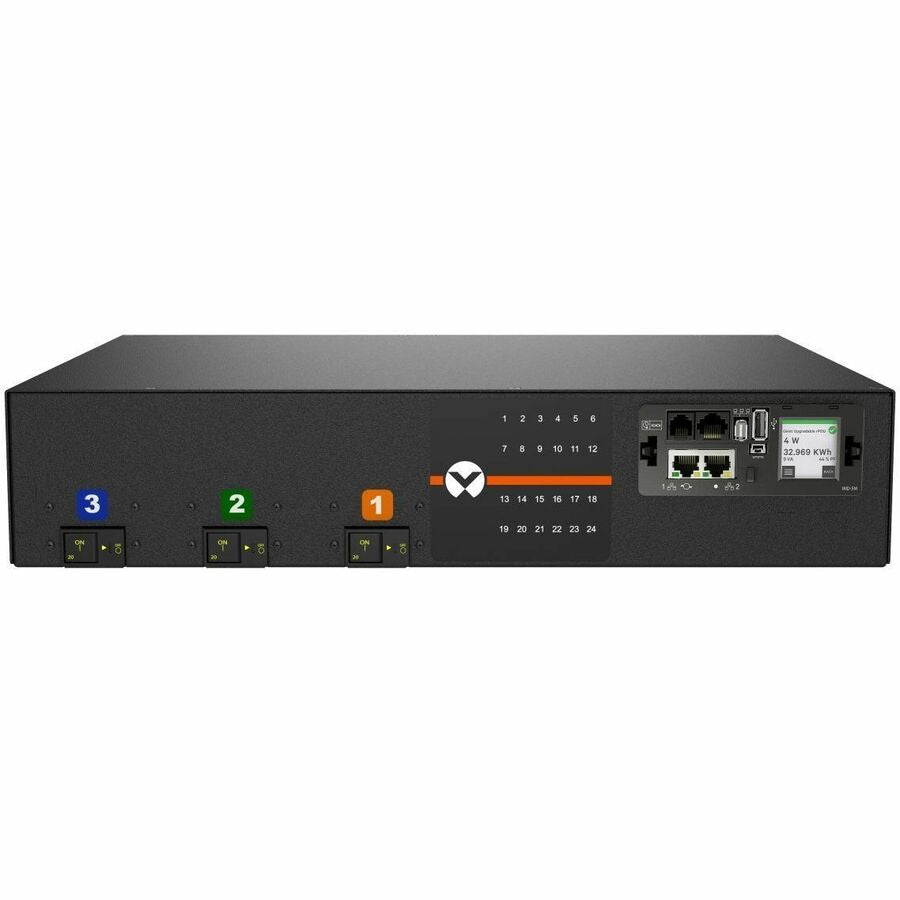

The Vertiv VP5N32A2 is a high-performance Switched Rack PDU (rPDU) designed to deliver reliable, remotely managed power distribution in enterprise and edge IT environments. Featuring 24 combination C13/C19 outlets, a 30A 3-phase 120/208V WYE input, and environmental monitoring support, this horizontal 2U PDU enhances uptime with outlet-level switching, circuit monitoring, and daisy-chain connectivity for up to 50 devices via a single IP. Ideal for mission-critical deployments requiring visibility, control, and resilience.
| Feature | Details |
|---|---|
| Model Number | VP5N32A2 |
| Form Factor | 2U Horizontal (19in rack mountable) |
| Power Capacity | 30A, 120/208V WYE, 8.6kW |
| Input Plug Type | NEMA L21-30P Twistlock |

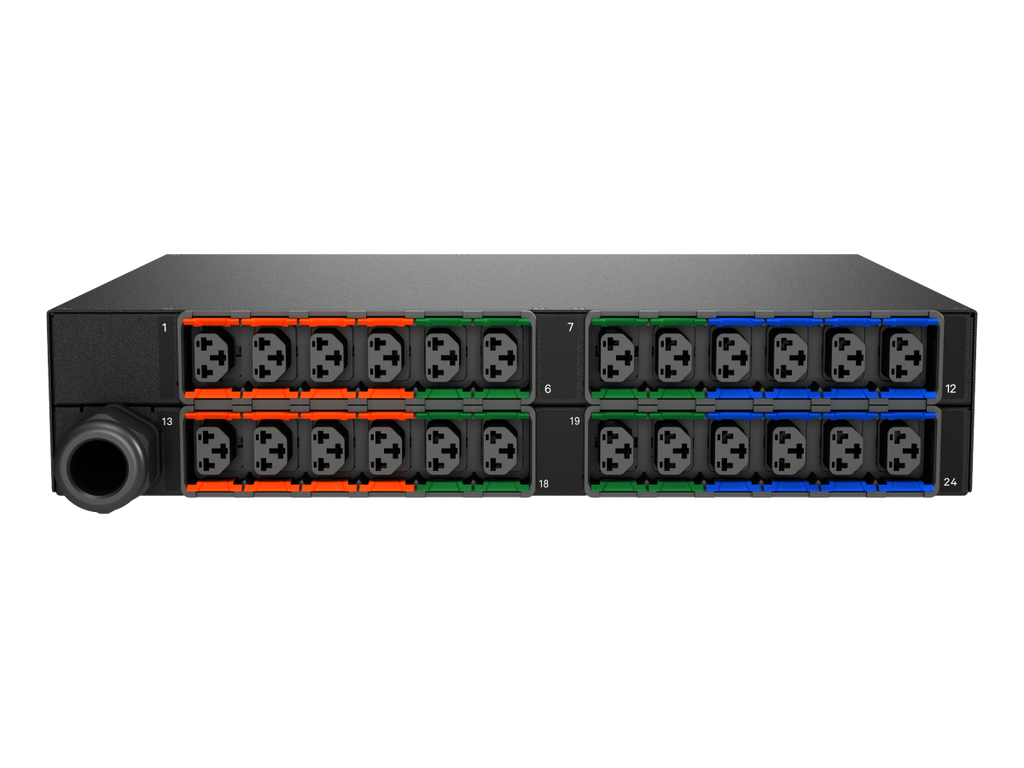

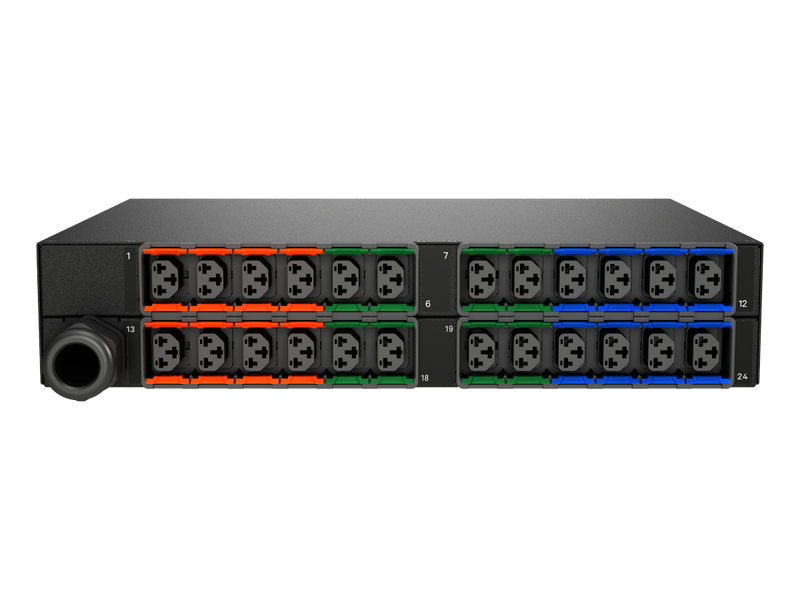

| Outlets | 24 x Combination C13/C19 |
| Outlet Grouping | 3 Circuits (8 outlets each): Orange, Green, Blue |
| Monitoring | Unit-level input & circuit monitoring (kWh, W, VA, PF, A, V) |
| Switching | Individual outlet-level switching with sequencing |
| Environmental Monitoring | Yes, via optional sensors (up to 16 supported) |
| Daisy Chain Capability | Up to 50 devices per IP, fault-tolerant RSTP support |
| Display | Local LCD touchscreen (auto-orienting) |
| Networking | Dual 10/100/1000 Mbps Ethernet |
| Protocols | SNMP, HTTP/S, SSH, Modbus TCP, Syslog, DHCP, RADIUS, etc. |
| Data Access | JSON API, JSON/CSV datalog |
| USB/Serial Ports | USB: Yes; Serial: RS232 via RJ45 |
| Power Cable | 10 ft / 3m, 10/5 AWG |
| Construction | Black powder-coated heavy steel |
| Certifications | UL 62368-1, RoHS, FCC Class A |
| Operating Temperature | Up to 60°C / 140°F |
| Warranty | 5 years (if registered within 120 days), else 3 years |
| Country of Origin | USA (TAA & BAA COTS compliant) |
| Dimensions (HxWxD) | 3.39 x 17 x 12 in (87 x 432 x 305 mm) |
| Weight | 20 lbs (9.07 kg) |
