Description

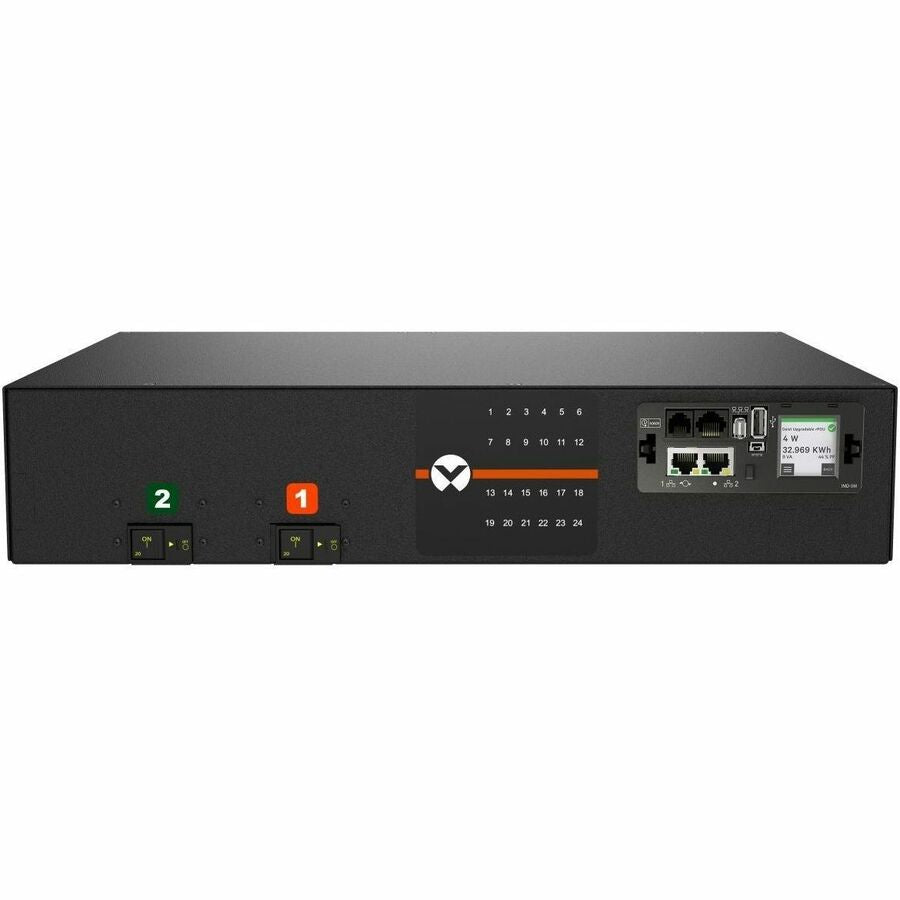

The Vertiv VP5N32A0 is a Switched EC rPDU providing advanced outlet-level control and input power monitoring. Designed for critical IT environments, this horizontal 2U PDU features 24 combination C13/C19 outlets, 30A capacity at 208V, and a 10-foot power cord with an L6-30P plug. Integrated with environmental monitoring, dual Ethernet ports, and high-visibility LCD, it supports remote management and fault-tolerant daisy-chaining of up to 50 devices per IP.
| Feature | Specification |
|---|---|
| Model | VP5N32A0 |
| Power Capacity | 4.9kW |
| Input Voltage | 200–240V |
| Input Current | 30A |
| Input Plug Type | NEMA L6-30P (10ft cord) |

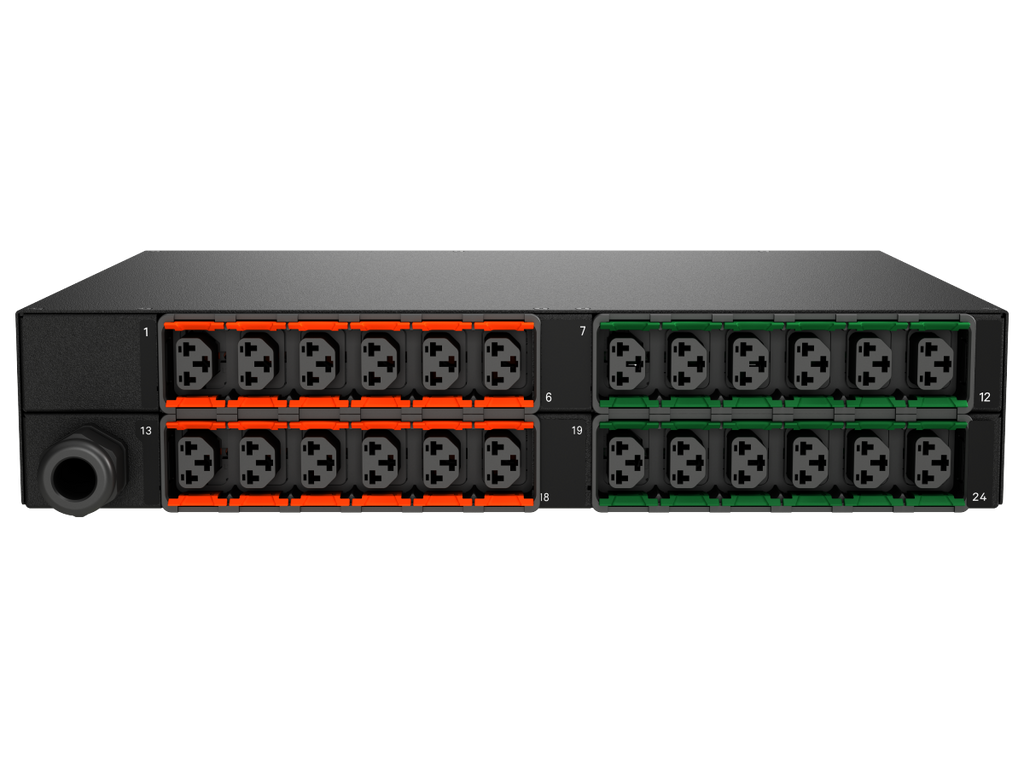

| Receptacle Type & Qty | 24 x Combination C13/C19 |
| Mounting Configuration | 19" Horizontal, 2U |
| Monitoring Type | Switched, Unit-Level Monitoring |
| Breaker Protection | (2) 20A Double Pole Magnetic, 10kAIC |
| Power Measurements | kWh, W, VA, PF, V, A (1% accuracy) |
| Circuit Monitoring Accuracy | 2% |
| Network Connectivity | Dual Gigabit Ethernet, Daisy Chain (50 devices) |
| Communication Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, SSH, Modbus TCP, etc. |
| Remote Sensor Ports | 1 RJ port (supports up to 16 sensors) |
| Display | Auto-orienting LCD touchscreen |
| Operating Temperature | Max 60°C (140°F) |
| Chassis Dimensions (H x W x D) | 3.39 x 17 x 12 in (87 x 432 x 305 mm) |
| Weight | 18 lbs (8.16 kg) |
| Compliance | UL 62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 5-year limited (with registration) |
