Description

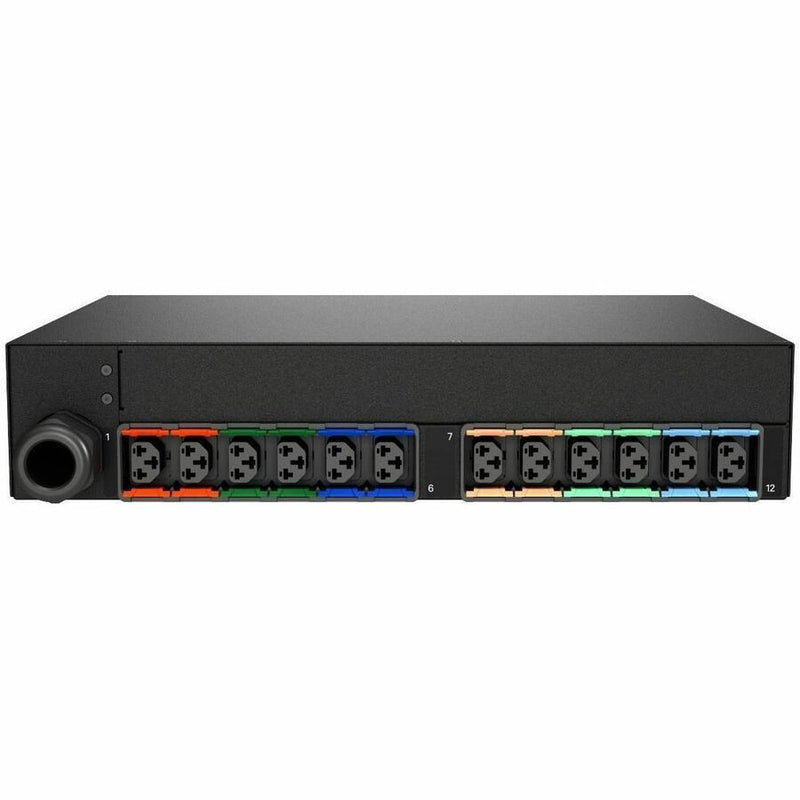

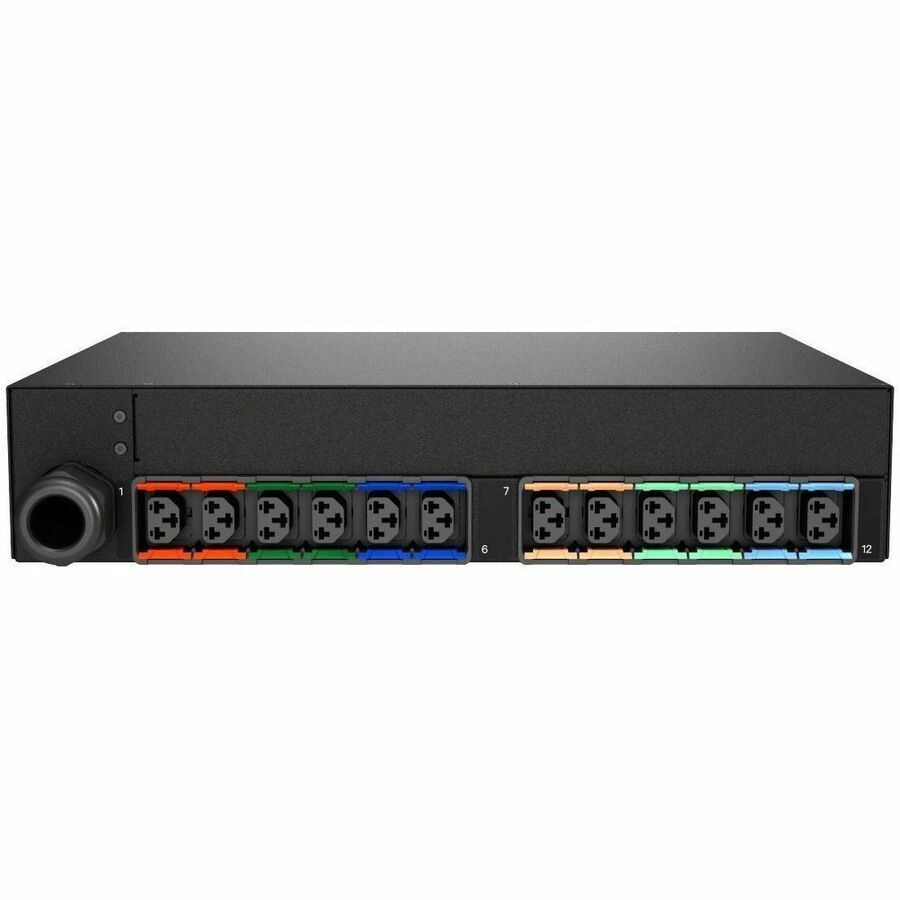

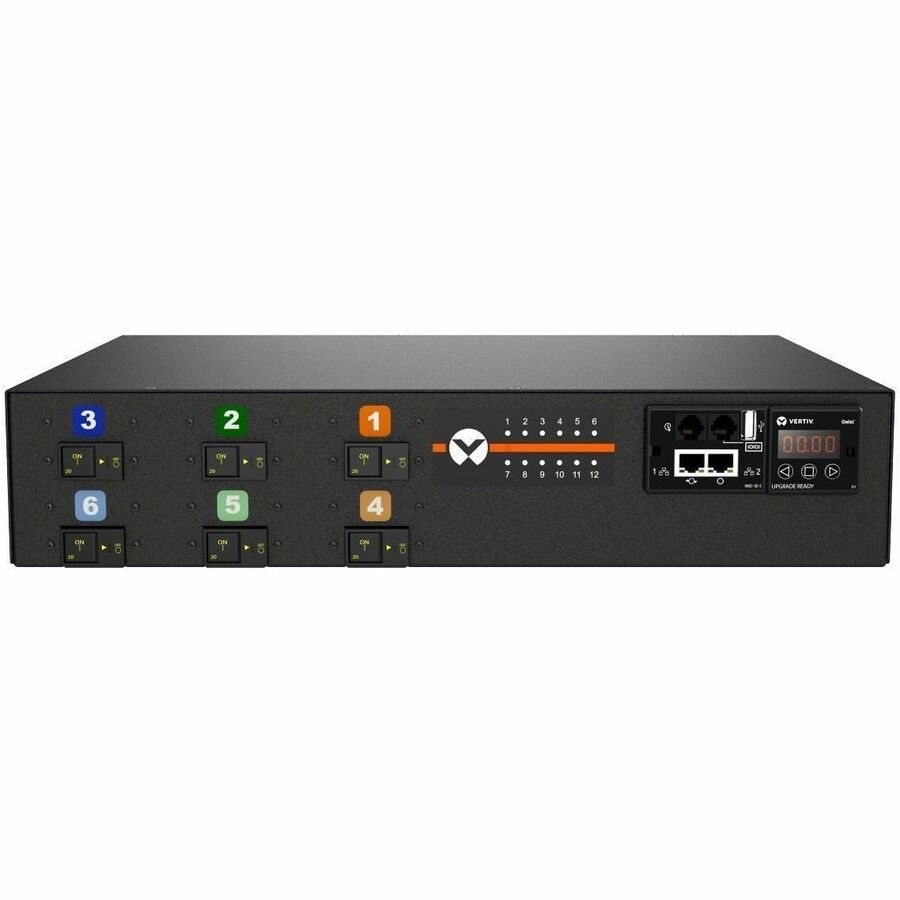

The Vertiv Geist NU30213 is a Switched Outlet Level Monitored rPDU that provides advanced power distribution to critical IT infrastructure. With 12 combination C13/C19 outlets and IEC 60309 3P+E 60A input, it delivers robust 3-phase power and outlet-level control. This model supports remote monitoring via multiple protocols, integrates environmental sensing capabilities, and is built for high-density, high-availability environments.
Its upgradeable Interchangeable Monitoring Device (IMD) enables easy adaptation to evolving monitoring requirements. The unit’s 2U horizontal design, TAA compliance, and integrated overcurrent protection make it ideal for enterprise data centers focused on uptime, security, and sustainability.
| Attribute | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Product Series | rPDU |
| Part Number | NU30213 |
| Model | MNU3EDR6-12CF18-6PS15B0H10-S |
| Form Factor | 2U Horizontal Rack-mountable, Recess-mountable |
| Outlets | 12 x Combination C13/C19 |
| Input Plug Type | IEC 60309 3P+E 60A |
| Input Voltage | 230V AC (Range: 200-240V) |
| Output Voltage | 208V AC |
| Power Rating | 17.2 kW |
| Input Current | 60A |
| Cord Length | 10 ft |
| PDU Type | Switched Outlet Level Monitored |
| Monitoring Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, RADIUS, LDAP, Modbus TCP, Syslog, SSH, JSON API |
| Remote Outlet Switching | Yes |
| Protection | Overcurrent Protection, Double Pole |
| Display | LED Display |
| Network Interface | RJ-45 |
| Mounting Orientation | Horizontal |
| Color | Black Powder Coat |
| Operating Temperature | Up to 140°F (60°C) |
| Certifications | UL, c-UL 62368-1, FCC Part 15 Class A |
| Compliance | TAA Compliant, RoHS |
| Warranty | 5 Years (with registration); 3 Years otherwise |
| Country of Origin | United States |
| Shipping Weight | 1 lb |
