Description

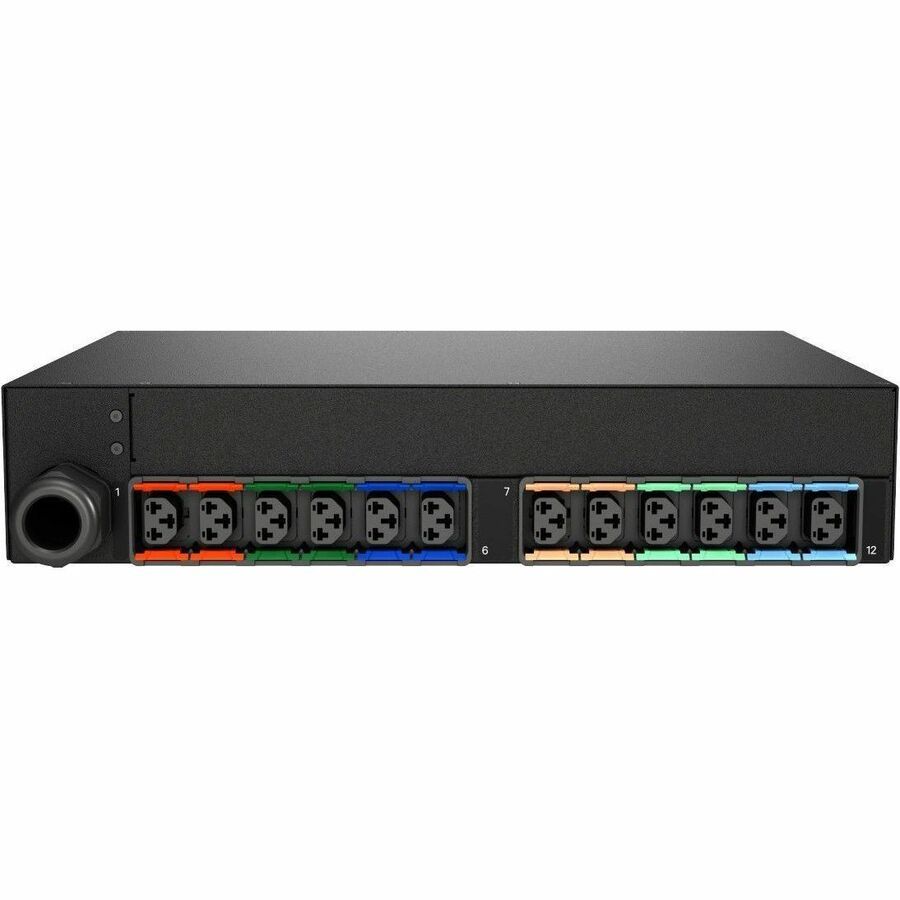

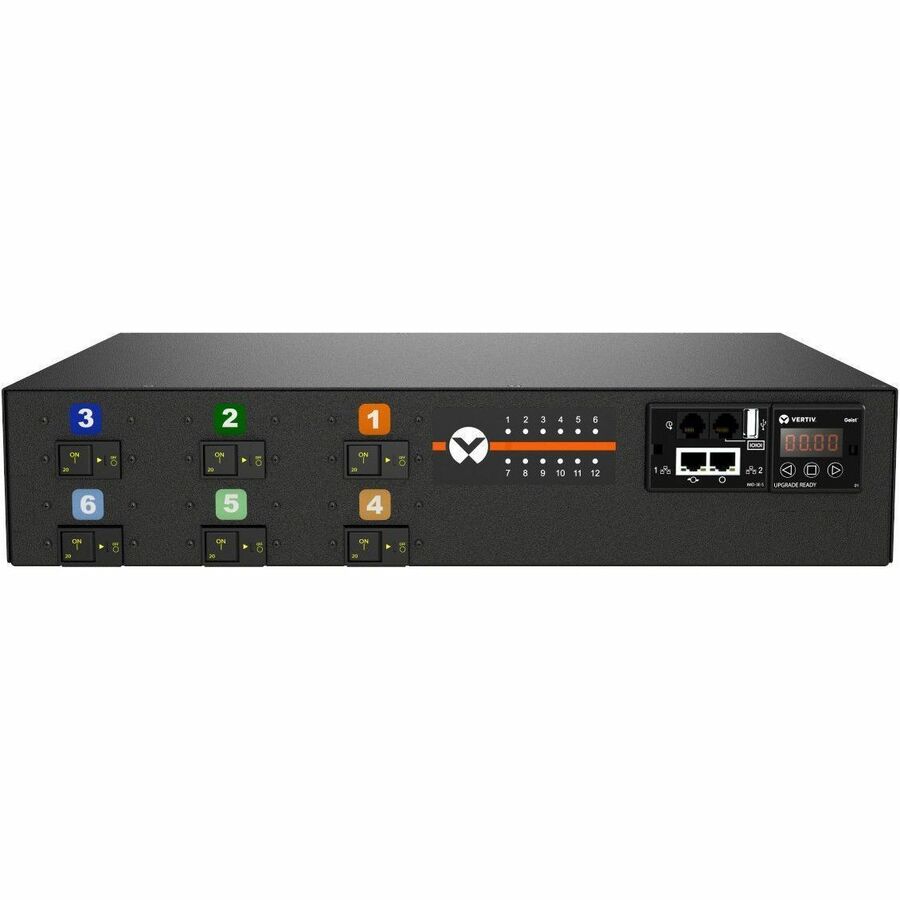

The Vertiv Geist rPDU NU30214 (MNU3EDR6-12CF18-6PS15D0H10-S) is a high-performance switched rack power distribution unit designed for enterprise IT environments. Featuring 12 combination C13/C19 outlets, a robust IEC 60309 3P+E 60A input plug, and advanced outlet-level monitoring capabilities, it ensures reliable power distribution with remote manageability. Built for scalability and resilience, this unit includes fault-tolerant daisy chaining, environmental monitoring options, and hot-swappable upgradeable intelligence modules for future-proof deployment. Ideal for data centers requiring high-capacity, intelligent power distribution in a 2U horizontal rack format.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | NU30214 |
| Model | MNU3EDR6-12CF18-6PS15D0H10-S |
| PDU Type | Switched |
| Form Factor | Horizontal, 2U |
| Mounting | Rack-mountable, Recess-mountable |
| Input Voltage | 230V AC (200V–240V range) |
| Input Current | 60A |
| Input Plug | 1 x IEC 60309 3P+E 60A |
| Output Voltage | 208V AC |
| Power Capacity | 17.20 kW |
| Receptacles | 12 x Combination C13/C19 |
| Protection | Overcurrent Protection (Double Pole) |
| Cord Length | 10 ft |
| Network Interface | RJ-45 |
| Management Protocols | SNMP, HTTP/HTTPS, SSH, Modbus TCP, Syslog, etc. |
| Environmental Monitoring | Yes (optional sensors) |
| Mounting Orientation | Horizontal |
| Rack Height | 2U |
| Dimensions (H x W x D) | 3.4" x 17" x 12" |
| Max Operating Temp. | 140°F (60°C) |
| Certifications | UL, c-UL 62368-1, FCC Part 15 Class A |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Shipping Weight | 1 lb |
| Warranty | 5 years (with registration), else 3 years |
| Country of Origin | United States |
