Description

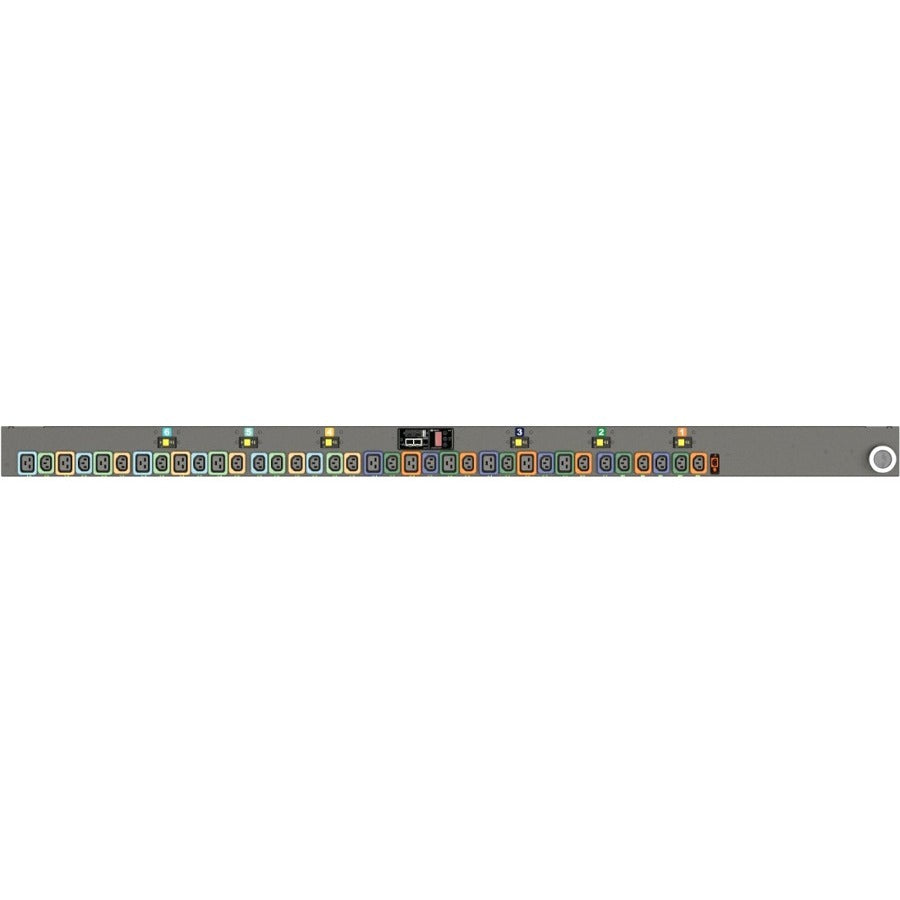

The Vertiv Geist NU30045L rPDU delivers switched, outlet-level monitored power distribution for high-performance IT environments. This 36-outlet vertical PDU features 24 U-Lock IEC C13 and 12 U-Lock IEC C19 receptacles with a 3P+E CA input plug, supporting up to 14.40 kW at 230V AC.
Built with upgradeable hot-swap technology, it ensures future-proof monitoring with customizable Interchangeable Monitoring Devices (IMDs). It includes advanced environmental monitoring support, remote outlet control, and robust network management protocols including SNMP, HTTP/HTTPS, SSH, RADIUS, and more.
Ideal for data centers seeking granular power control, streamlined deployment with daisy chaining (up to 50 devices on a single IP), and enhanced reliability through fault-tolerant RSTP.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Part Number | NU30045L |
| Brand | Geist |
| Series | rPDU |
| Model | MNU3EHB1-36PNB8-5CS15A0A10-S-A |
| PDU Type | Switched |
| Input Plug Type | 3P+E CA |
| Input Voltage | 230V AC (200–240V AC range) |
| Output Voltage | 208V AC |
| Power Rating | 14.40 kW |
| Input Current | 50A |
| Receptacles | 24 x U-Lock IEC C13, 12 x U-Lock IEC C19 |
| Form Factor | Vertical, Rack-Mountable (0U) |
| Dimensions (WxDxL) | 3.7" x 2.6" x 66.3" |
| Network Port | RJ-45 |
| Remote Switching | Yes |
| Protocols Supported | SNMP v1/v2c/v3, HTTP/HTTPS, SSH, RADIUS, etc. |
| Daisy-Chaining | Up to 50 devices (Self-configurable) |
| Environmental Monitoring | Supported (optional sensors) |
| TAA Compliant | Yes |
| Warranty | 5-Year Limited Warranty |
| Shipping Weight | 24 lbs |
| Product Condition | New and Factory Fresh |
| Country of Origin | United States |
