Description

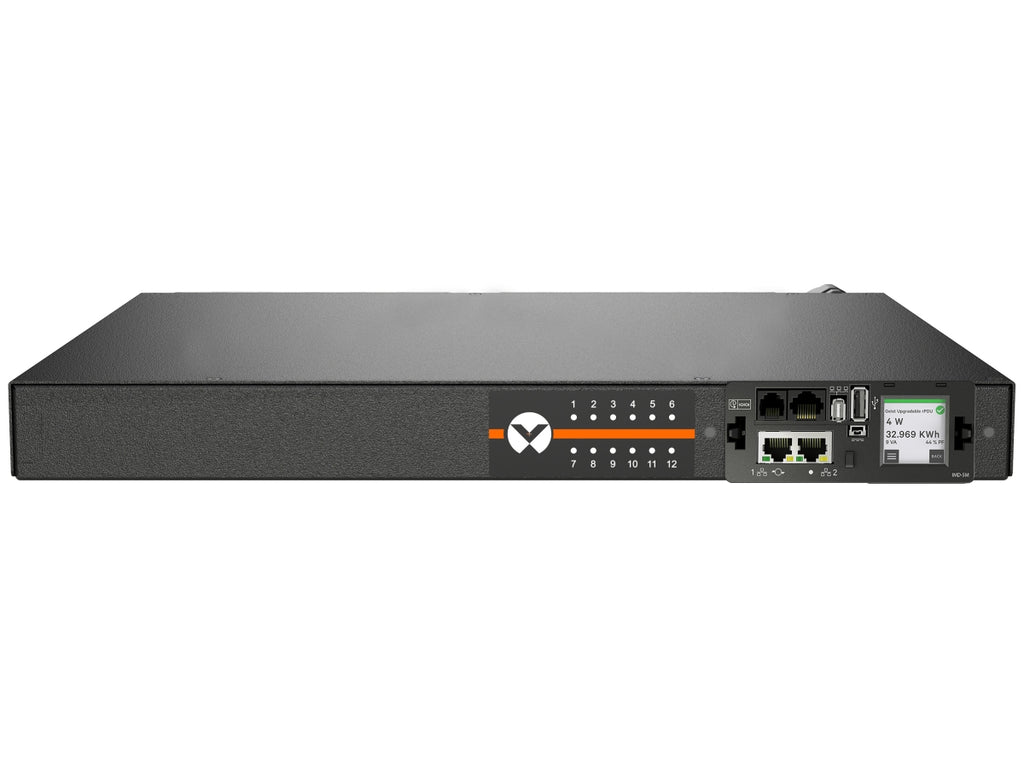

The Vertiv Geist VP7N11A1 is a horizontal 15A, 120V switched rack PDU that provides reliable power distribution with advanced outlet-level monitoring and remote switching. Designed for data centers and critical IT applications, this 12-outlet PDU features environmental monitoring capabilities, dual Ethernet ports for daisy-chaining up to 40 rPDUs, and robust data access options. Easily upgradeable via hot-swap IMD technology, it supports remote rebooting and efficient energy management at the device level.
| Specification | Details |
|---|---|
| Model Number | VP7N11A1 |
| PDU Type | Switched, Outlet-Level Monitoring |
| Input Voltage | 100–120V |
| Current Rating | 15A |
| Power Capacity | 1.4kW |
| Frequency | 50/60Hz |
| Input Plug Type | NEMA 5-15P |

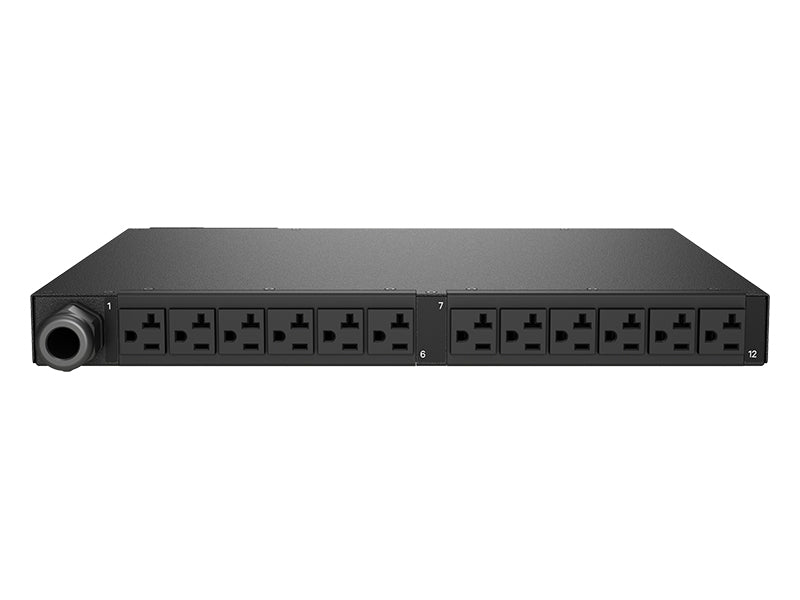

| Outlets | 12 × NEMA 5-15R |
| Mounting Configuration | Horizontal, 19in / 483mm |
| Display | Local LCD Touchscreen with Auto-Orientation |
| Monitoring | Input & Outlet-Level (kWh, W, VA, PF, V, A) |
| Switching | Individual Outlet On/Off with User-defined Delays |
| Remote Management | Dual Ethernet (DHCP, SNMP, HTTPS, SSH, etc.) |
| Sensor Support | 1 x RJ for up to 16 Environmental Sensors |
| Daisy Chain Support | Up to 40 Devices with RSTP |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Chassis | Black Powder-Coated Steel |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in / 44 x 432 x 305 mm |
| Weight | 10 lbs / 4.54 kg |
| Warranty | 5-Year Limited (if registered within 120 days) |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
