Description

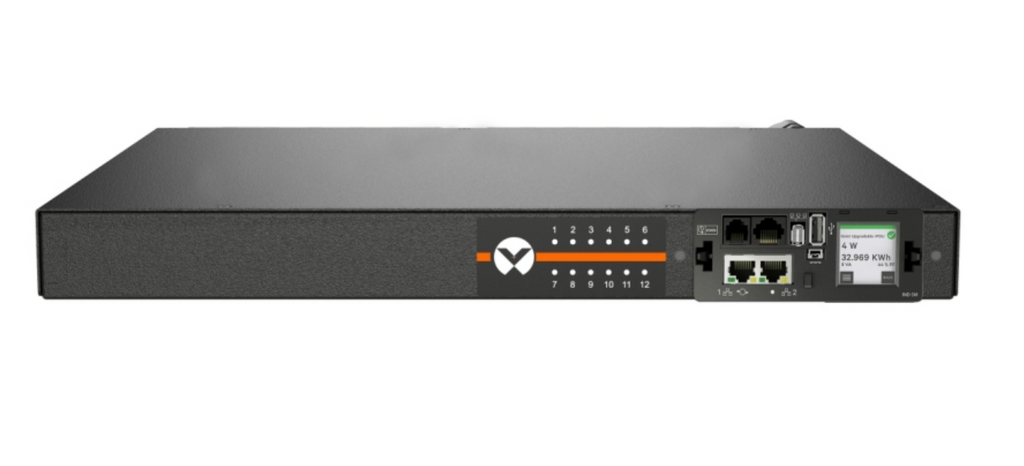

The Vertiv VP7N21A0 is a high-performance PowerIT™ switched rack PDU (rPDU) designed to deliver reliable power distribution and remote outlet control for critical IT equipment. With advanced outlet-level monitoring and switching, integrated environmental sensor support, and daisy-chainable network connectivity, this 19-inch horizontal rPDU enables optimized power management and uptime in any data center or server room.

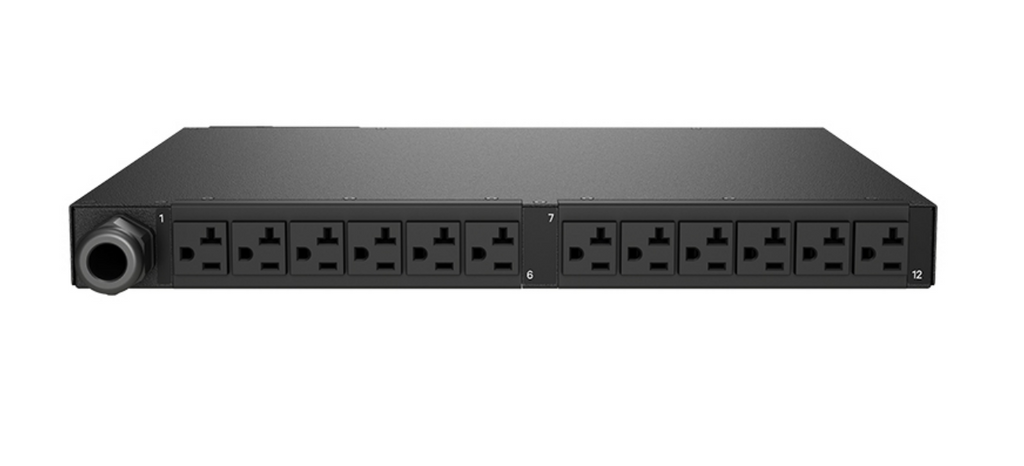

Upgrade-ready via hot-swappable IMD (Interchangeable Monitoring Device), it supports modern protocols and features a high-visibility local display, robust steel chassis, and 12 individually monitored and switchable NEMA 5-20R outlets powered through a 10ft cord with a NEMA 5-20P plug.
| Specification | Details |
|---|---|
| Model Number | VP7N21A0 |
| Form Factor | 19" Horizontal Rackmount |
| Power Capacity | 20A, 120V, 1.9kW |
| Receptacles | (12) NEMA 5-20R |
| Plug Type | NEMA 5-20P |
| Power Cord | 10 ft (3m), 12/3 AWG |
| Monitoring | Input & Outlet Level (kWh, W, VA, PF, V, A) |
| Switching | Individual Outlet Switching with Time Delays |
| Display | Auto-Oriented LCD Touchscreen |
| Environmental Monitoring | Via optional sensors (up to 16 supported) |
| Network Protocols | SNMP, HTTP(S), SSH, Modbus TCP, RADIUS, etc. |
| Data Access | CSV, JSON API, Syslog |
| Connectivity | Dual 1G Ethernet, RS232, USB, Daisy Chain |
| Daisy Chain Support | Up to 40 rPDUs, RSTP fault tolerance |
| Construction | Black Powder-Coated Steel |
| Certifications | UL 62368-1, RoHS, FCC Class A |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 10 lbs (4.54 kg) |
| Country of Origin | USA (TAA and BAA COTS Compliant) |
| Warranty | 5 years (if registered within 120 days) |
