Description

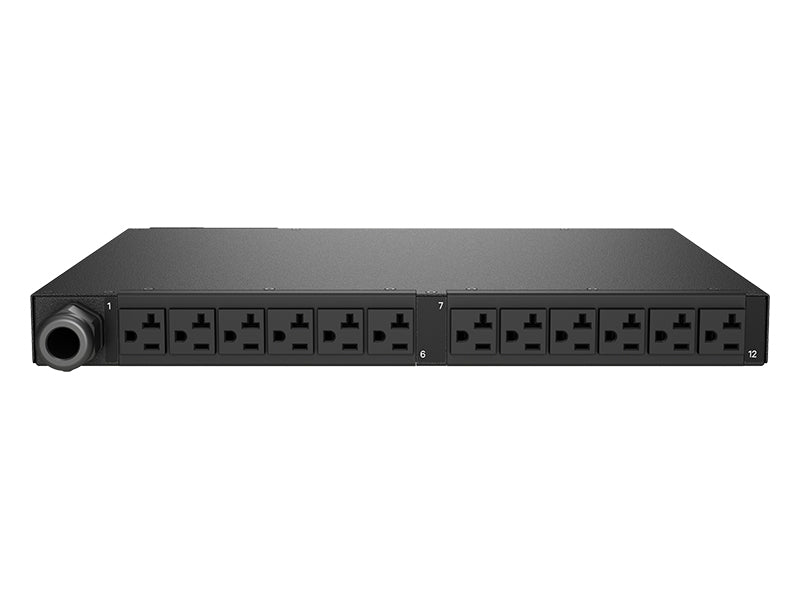

The Vertiv VP7N21A1 PowerIT™ Switched rPDU delivers advanced power distribution with outlet-level monitoring and remote switching capabilities. Designed for critical IT environments, this horizontal 19" unit supports up to 1.9kW at 120V and features 12 NEMA 5-20R outlets. Built with upgradeable hot-swap technology, the VP7N21A1 enables seamless adaptability with environmental monitoring and daisy-chaining of up to 40 rPDUs. Includes a high-visibility local display, 10ft cord with L5-20P plug, and steel black powder coat chassis.
| Specification | Details |
|---|---|
| Model Number | VP7N21A1 |
| Input Voltage | 100-120V AC |
| Input Current | 20A |
| Power Capacity | 1.9kW |
| Plug Type | NEMA L5-20P (Twistlock) |
| Outlet Type | 12x NEMA 5-20R |
| Mounting Configuration | 19" Horizontal Rackmount |
| Chassis Finish | Black Powder Coat |
| Power Monitoring | Input & Outlet level (kWh, W, VA, PF, V, A) |
| Remote Switching | Individual outlet-level control with delays and sequential startup |
| Environmental Monitoring | Optional sensors supported (up to 16) |
| Networking | Dual 10/100/1000Mbps Ethernet, Daisy-chain capable (up to 40 units) |
| Protocols Supported | SNMP, HTTP/S, SSH, Modbus TCP, RADIUS, TACACS+, Syslog, JSON, etc. |
| USB/Serial Ports | USB supported, RS232 via RJ45 |

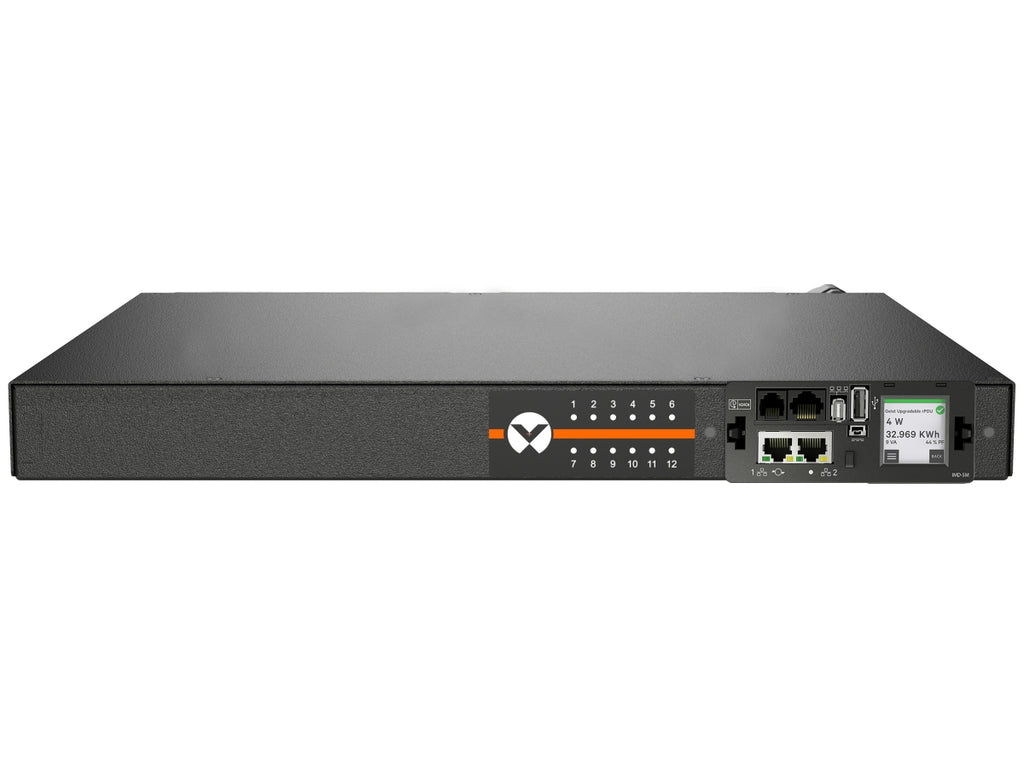

| LCD Display | Local auto-oriented, high-visibility display |
| Cable Length | 10ft / 3m |
| Certifications | UL 62368-1, FCC Class A, RoHS, TAA, Buy American Act |
| Warranty | 5 years (with registration), otherwise 3 years |
| Operating Temp. Max | 60°C / 140°F |
| Dimensions (H x W x D) | 1.72in x 17in x 12in (44mm x 432mm x 305mm) |
| Weight | 10 lbs / 4.54 kg |
