Description

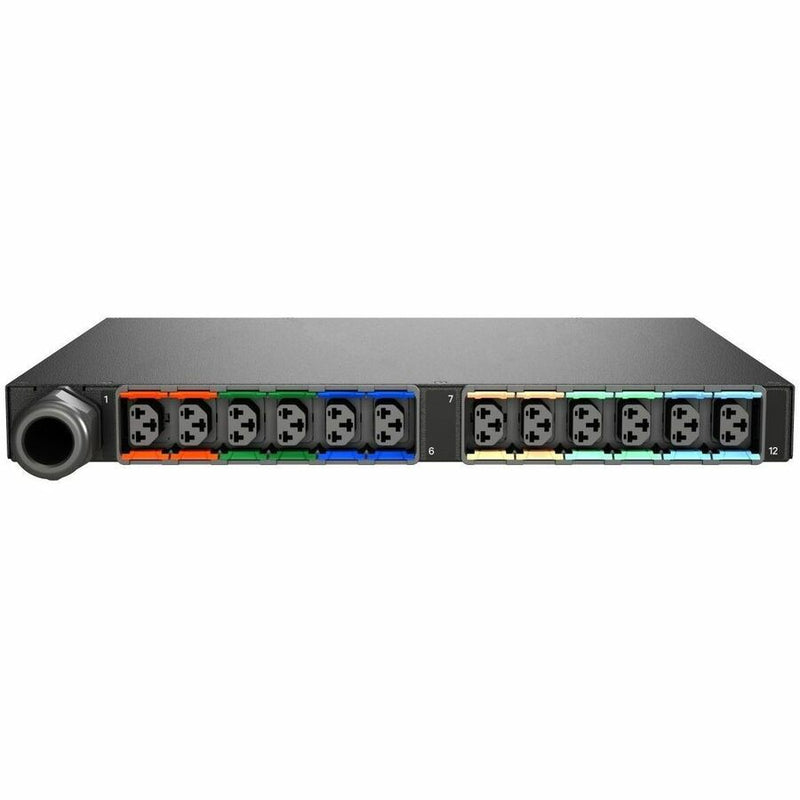

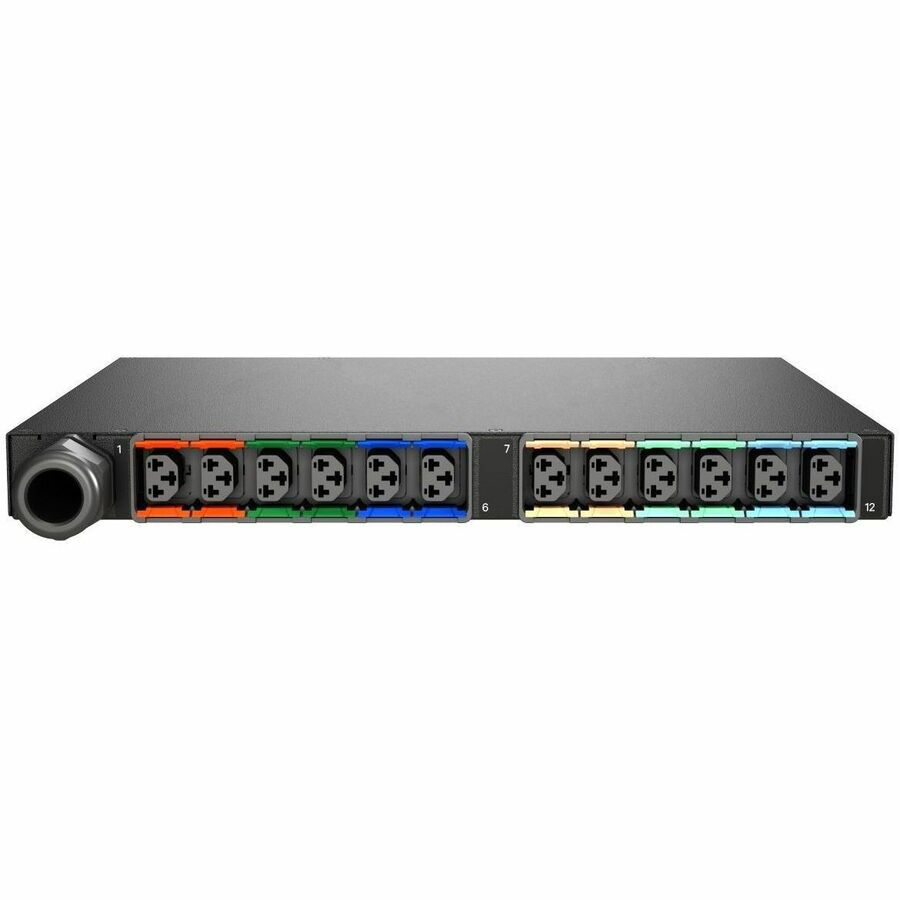

The Vertiv VP7N31A5 is a high-performance switched rPDU designed for data centers and IT infrastructure requiring outlet-level control and precise power monitoring. It supports individual outlet switching, remote reboot, and environmental monitoring. With a 30A, 240/415V WYE input and 17.2kW load capacity, this horizontal 19" rackmount unit features 12 combination C13/C19 outlets and a 10-ft power cord with an IEC60309 IP44-rated plug. Upgradeable with hot-swap IMDs and daisy-chainable up to 40 units, it is ideal for high-density applications demanding efficiency and uptime.
| Feature | Details |
|---|---|
| Model | VP7N31A5 |
| Form Factor | 19" Horizontal Rackmount (1U) |
| Input Voltage | 200-240/346-415V WYE |
| Input Current | 30A x 3 Phase |
| Power Capacity | 17.2kW |
| Frequency | 50/60Hz |
| Input Plug Type | IEC60309 3P+N+E (IP44) |
| Receptacles | 12 x Combination C13/C19 |
| Over Current Protection | (6) 20A Single Pole Magnetic Breakers (10kAIC) |
| Monitoring | Input, Outlet, Circuit/Breaker monitoring; Environmental sensor support |
| Switching | Individual outlet switching with time delays & sequential power-up |
| Display | LCD Touchscreen with Auto Orientation |
| Connectivity | Dual Gigabit Ethernet, RS232 via RJ45 |
| Protocols Supported | SNMP (v1/v2c/v3), HTTPS, RADIUS, TACACS+, Modbus TCP, Syslog, etc. |
| Remote Sensor Ports | 1 RJ connection jack (supports up to 16 sensors) |
| Cable Length | 10 ft / 3 m |
| Chassis Color | Black (Powder Coat) |
| Operating Temp. | Max 60°C / 140°F |
| Construction | Heavy-duty steel, powder coat finish |
| Certifications | UL & c-UL 62368-1, FCC Part 15 Class A, RoHS |
| Compliance | TAA, Buy American Act (COTS Compliant) |
| Dimensions (HxWxD) | 1.72in x 17in x 12in (44mm x 432mm x 305mm) |
| Weight | 18 lbs / 8.16 kg |
| Warranty | 5-year limited (with registration), otherwise 3 years |
