Description

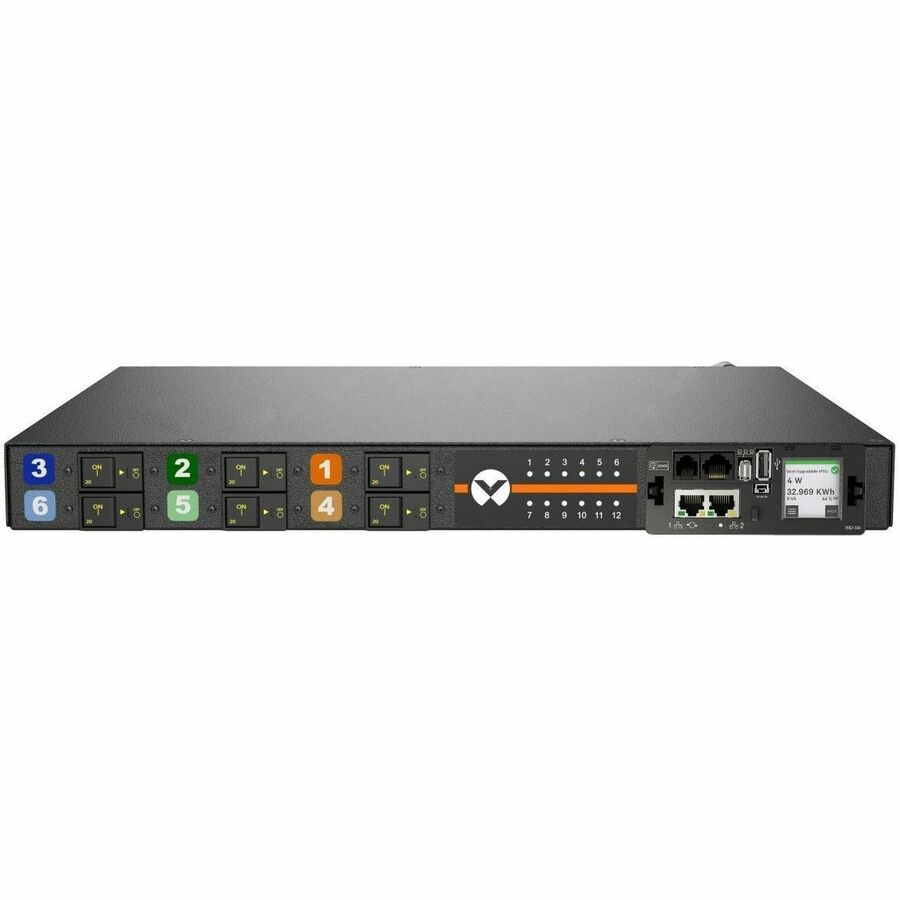

The Vertiv VP7N31A4 PowerIT™ Switched rPDU delivers advanced outlet-level control and monitoring for high-density IT environments. Designed for 30A 240/415V WYE power distribution, this 19" horizontal rackmount PDU features 12 combination C13/C19 outlets and a 10ft L22-30P cord. Real-time environmental monitoring, remote switching, and daisy-chained Ethernet connectivity ensure critical uptime and intelligent power management. Upgradeable via Interchangeable Monitoring Devices (IMDs), it adapts as your infrastructure evolves.
| Specification | Details |
|---|---|
| Model Number | VP7N31A4 |
| Power Configuration | 30A, 240/415V WYE, 17.2kW |
| Physical Configuration | 19in / 483mm Horizontal |

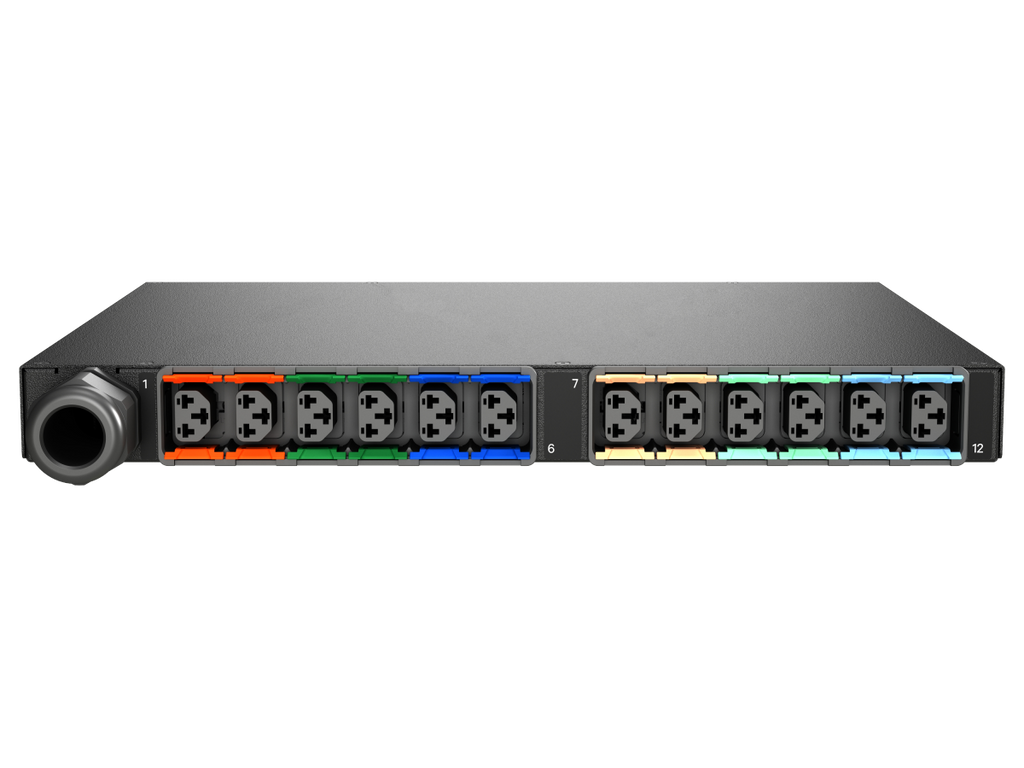

| Outlets | (12) Combination C13/C19 |
| Plug Type | NEMA L22-30P Twistlock |
| Cord Length | 10ft / 3m |
| Outlet Monitoring | kWh, W, VA, PF, V, A |
| Input Monitoring | Total Unit & Phase-level Monitoring (A, B, C) |
| Switching | Individual Outlet Switching with Delay Options |
| Breaker Protection | (6) 16A Magnetic Breakers |
| Environmental Monitoring | Optional via Remote Sensors (up to 16 supported) |
| Network Connectivity | Dual Ethernet (10/100/1000 Mbps), Daisy Chain up to 40 units |
| Supported Protocols | SNMP, HTTPS, SSH, Modbus TCP, Syslog, TACACS+, and more |
| Display | LCD Touchscreen with auto orientation |
| Compliance & Approvals | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-Year Limited (if registered within 120 days) |
| Operating Temp | Up to 60°C / 140°F |
| Chassis | Heavy Steel, Black Powder Coat Finish |
| Dimensions (HxWxD) | 1.72in x 17in x 12in (44mm x 432mm x 305mm) |
| Weight | 18 lbs / 8.16 kg |
| Country of Origin | USA, TAA and BAA COTS Compliant |
