Description

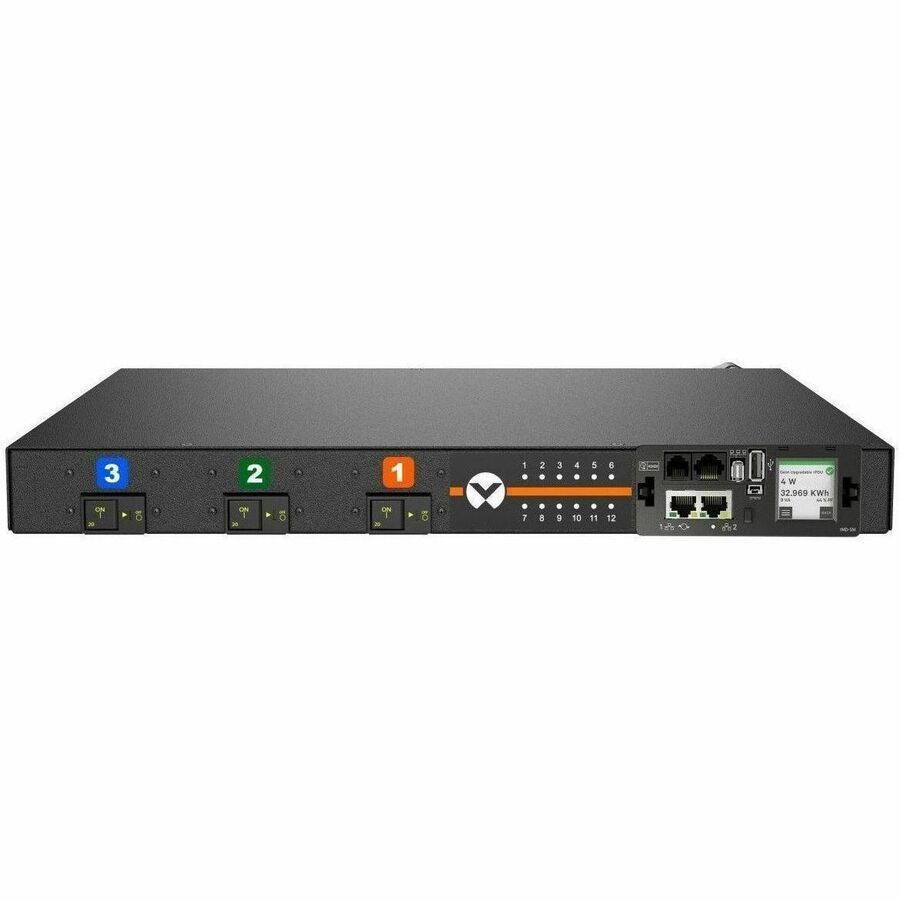

The Vertiv VP7N31A2 is a Switched Outlet-Level Monitored rPDU engineered for high-availability IT environments. Featuring 12 combination C13/C19 outlets and a 30A, 120/208V WYE input delivering 8.6kW of power, it supports outlet-level switching and detailed energy monitoring. Integrated with environmental sensor support, dual Ethernet ports, and fault-tolerant daisy chaining, this horizontal 19-inch PDU provides secure, remote access to power usage metrics and control. Designed with a 10ft L21-30P input cord and built-in display, it simplifies monitoring, improves uptime, and supports real-time infrastructure insights.
| Feature | Details |
|---|---|
| Model Number | VP7N31A2 |
| Input Voltage / Phase | 120/208V, 3-Phase WYE |
| Input Current | 30A |
| Power Capacity | 8.6kW |
| Input Plug Type | NEMA L21-30P (10ft / 3m cord) |

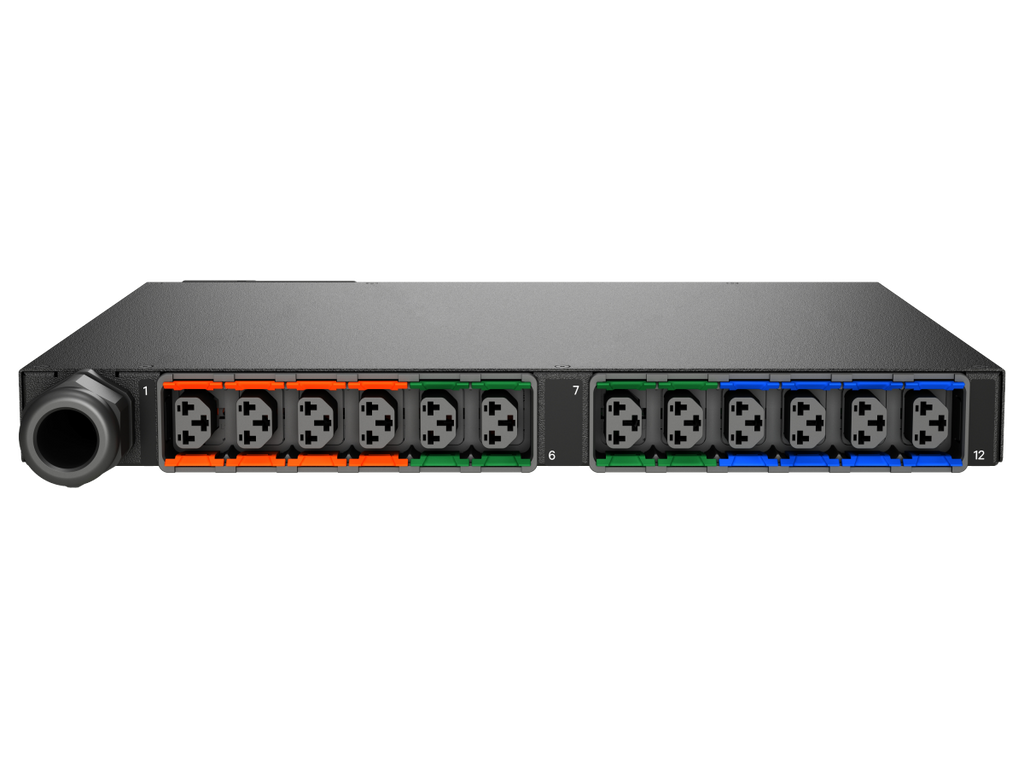

| Outlet Types | (12) Combination C13/C19 |
| Mounting | 19 in / 483 mm Horizontal Rackmount |
| Switching Capability | Individual Outlet Switching |
| Monitoring | Input, Outlet, and Breaker-level Monitoring |
| Communication Protocols | SNMP (v1/v2c/v3), Modbus TCP, HTTP(S), SSH, etc. |
| Display | Auto-oriented LCD touchscreen |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet |
| Environmental Sensors | Supports up to 16 (via RJ connection jack) |
| Breaker Configuration | (3) 20A Double Pole Magnetic Breakers (10kAIC) |
| Chassis Color / Finish | Black Powder Coat |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in / 44 x 432 x 305 mm |
| Weight (Shipped) | 18 lbs (8.16 kg) |
| Warranty | 5-year limited (with registration) |
| Country of Origin | USA – TAA and BAA COTS Compliant |
